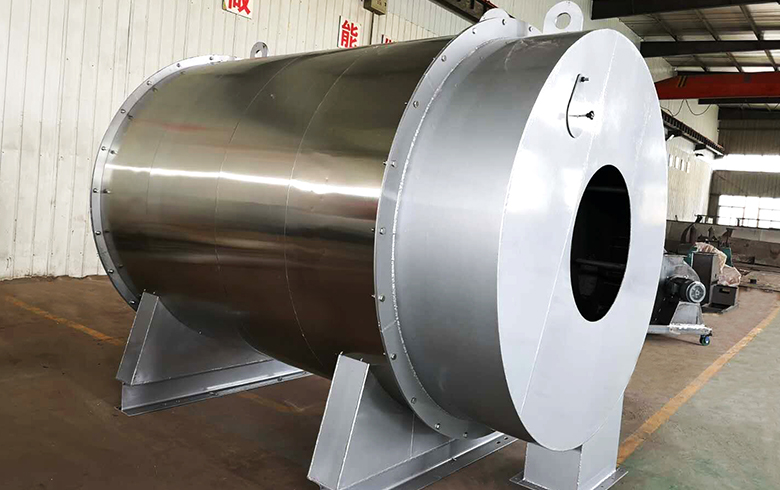

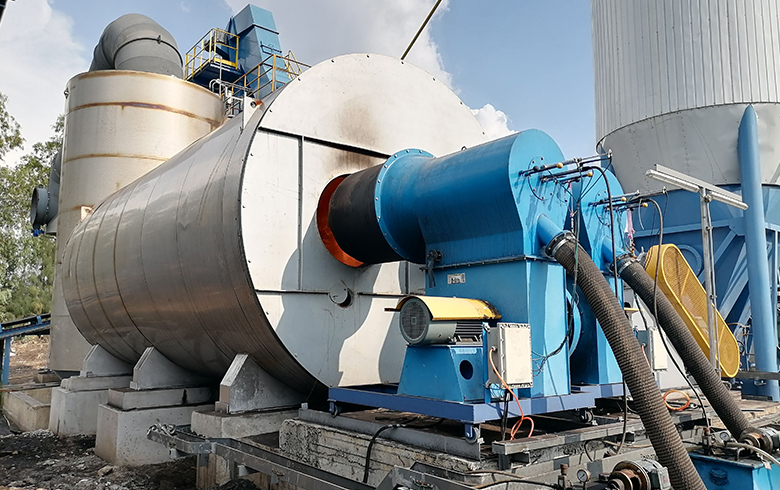

Hot Air Generator

TDR-M series coal-fired hot air generator is based on years of theory and practice of ZOOMLINE company, have been widely used in the drying, cement, powder and other fields.

Heating Capacity: 100x10⁴- 4500x10⁴KCal/h

Coal Consumption:90-9500kg/h

Oil Consumption: 15-3000kg/h

Gas Consumption: 15-3200Nm³/h

Send Email

Chat Now

Share With:

Introduction

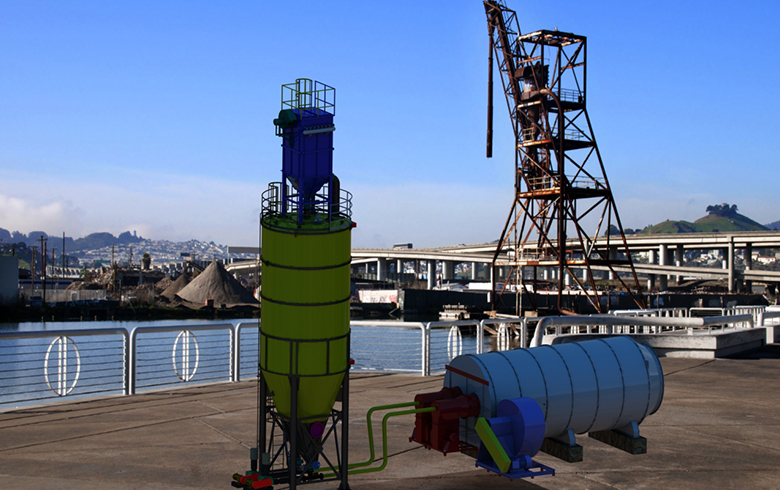

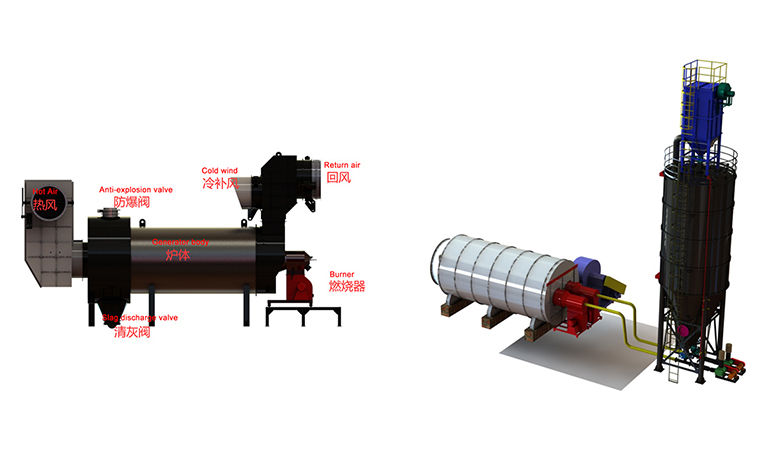

TDR-M Series Coal-fired Hot Air Generator

TDR-M series coal-fired Hot Air Generator is based on years of theory and practice of ZOOMLINE Company, combined with the company’s new “coal-in-Wind” new coal-fired burner, after continuously optimizes the design. In drying, cement, powder and other fields have been widely used.

Get Price Quote

+86-18838114766

PRODUCT ADVANTAGES

Main Characteristics of Coal-fired Hot Air Generator

Coal-fired burner, Coal-oil dual-use burner, Coal -gas dual-use burner are all available.

A combustion Hot Air Generator integrated machine specially designed for industrial hot- air systems.

The coal-fired burner has strong adaptability to coal (adapted to most bituminous coal).

The combustion efficiency and thermal efficiency are both above 95%.

The burner is highly integrated with the control of the Hot Air Generator, the supply heat load is stable, the operation is simple, and the hot blast adjustment is convenient.

The burner can adjust the size of the fire in a stepless proportion or cut off the fuel to stop the heating.

The equipment occupies a small area and requires less investment.

The equipment has strong durability and high-efficiency pulverized coal burner, which further reduces operating costs and is simple and convenient to maintain.

Automatic temperature control of combustion, mixing air and hot air, and intelligent reminder.

No refractory brick design structure, the thermal inertia of the overall system is small, and the temperature adjustment is fast.

Technical Parameters

Technical Parameters of Hot Air Generator

TDR-M series coal-fired Hot Air Generator
Model	Heating Capacity(KCal/h)	Coal Consumption(kg/h)
TDR-M100	100×10⁴	90-250
TDR-M200	200×10⁴	150-500
TDR-M300	300×10⁴	250-750
TDR-M400	400×10⁴	300-1000
TDR-M500	500×10⁴	400-1250
TDR-M600	600×10⁴	500-1500
TDR-M800	800×10⁴	600-2000
TDR-M1000	1000×10⁴	800-2500
TDR-M1200	1200×10⁴	1000-3000
TDR-M1500	1500×10⁴	1200-3500
TDR-M1800	1800×10⁴	1500-4000
TDR-M2000	2000×10⁴	1500-4500
TDR-M2500	2500×10⁴	1800-5500
TDR-M3000	3000×10⁴	2000-6500
TDR-M3500	3500×10⁴	2500-7500
TDR-M4000	4000×10⁴	2800-8500
TDR-M4500	4500×10⁴	3000-9500
