Bucket Concrete Batching Plant

Bucket concrete batching plant is widely used in medium-scale building construction, road and bridge engineering and concrete products precast plant.

Capacity: 25m3/h-75m3/h

Unloading capacity: 500-1500L

Max. aggregate size: ≤60/80mm

Motor Power: 40kw-107kw

Send Email

Chat Now

Share With:

Introduction

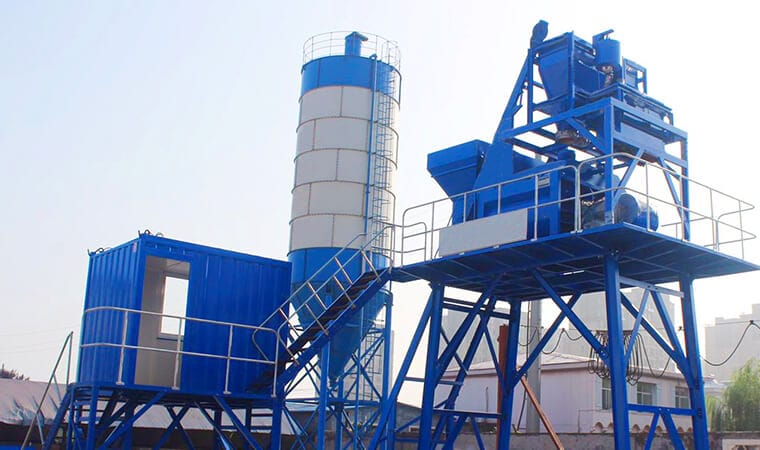

Bucket Concrete Batching Plant

The bucket concrete batching plant is a fully automatic concrete complete set of equipment composed of batching, mixing, electrical control system and other parts. It has a high-precision microcomputer control system, manual and automatic two modes of control, matching storage, automatic compensation of drop, and equipped with a printing system to automatically complete the scheduled production. At the same time, it occupies a small area, flexible installation and simple operation, which is very popular with users.
Bucket concrete batching plant has a wide lifting range, and has less requirements for the types and characteristics of materials, which can not only lift general powdery and small granular materials, but also lift materials with larger particles. And the bucket concrete batching plant has good sealing, less environmental pollution and good operation reliability. Bucket concrete batching plant has stable lifting operation and can reach a high lifting height.
Bucket concrete batching plant is widely used in medium-scale building construction, road and bridge engineering and concrete products precast plant.

Get Price Quote

+86-18838114766

PRODUCT ADVANTAGES

Main Features of Bucket Concrete Batching Plant

Occupying a small area;

Reliable shaft end sealing technology and high wear-resistant lining and blade;

Concrete mixer prevent aggregate stick on shaft then reduce the cleaning work;

Special lifting mechanism, start and stop smoothly, long lifetime of the steel wire rope;

Lifting system has loose rope, exceed limit position, fall protection measures;

Feeding and mixing complete sealing, powder materials silo adopt pulse negative pressure dust catcher, no pollution;

The mixing platform and measuring platform have space to ensure calibration, inspection and maintenance of equipment;

High measurement accuracy, simple and intelligent control;

Equipped with fault prevention and failure alarm mechanisms to facilitate the search of the probe;

The volume of the hopper for feeding materials can be increased according to customer requirements, and the auxiliary loading mechanism can be selected to reduce fuel consumption by the loader;

Technical Parameters

Technical Parameters of Bucket Concrete Batching Plant

Model		HZS25	HZS35	HZS50	HZS75
Max. Theoretical Capacity (m3/h)		25	35	50	75
Mixer	Model	JS500	JS750	JS1000	JS1500
	Motor power(kW)	18.5	30	2*18.5	2*30
	Unloading capacity (l)	500	750	1000	1500
	Max. aggregate size (mm)	≤60/80	≤60/80	≤60/80	≤60/80
Aggregate Bins (m3)		4*4	4*4	4*6	4*8
Limit and accuracy of weighing	Aggregate	(0-1500)kg±2%	(0-2000)kg±2%	(0-3000)kg±2%	(0-4000)kg±2%
	Cement	(0-300)kg±1%	(0-400)kg±1%	(0-500)kg±1%	(0-650)kg±1%
	Water	(0-200)kg±1%	(0-250)kg±1%	(0-400)kg±1%	(0-500)kg±1%
	Additive	(0-30)kg±1%	(0-30)kg±1%	(0-30)kg±1%	(0-30)kg±1%
Unloading Height (m)		4.2	4.2	4.2	4.2
General Power (kW)		40	53	80	107
