Bitumen Tank

The bitumen tank is strong and durable. Different sizes and capacities of bitumen tanks are available upon request. The bitumen tanks are lined with rock wool insulation and galvanized sheets to minimize heat loss. The bitumen tanks are heated by heat-conducting oil or electricity to ensure the temperature of the bitumen.
Introduction
Advantages
Parameters
Related Products
Inquiry
Introduction
Bitumen Tank

The bitumen tanks from our company ZOOMLINE can be used alone or in combination with the asphalt mixing plant.

We can supply horizontal and vertical bitumen tank. The heating methods include thermal oil heating, electric heating and fire tube (direct heat).

Get Price Quote
Contact Us
+86-18838114766
PRODUCT ADVANTAGES
Main advantages of bitumen tank
Hot oil heated bitumen tanks
Hot oil heated bitumen tanks are very often used with asphalt mixing plants. Such bitumen tank should work with a thermal oil furnace (TOF). Several bitumen tanks can work together with one furnace.

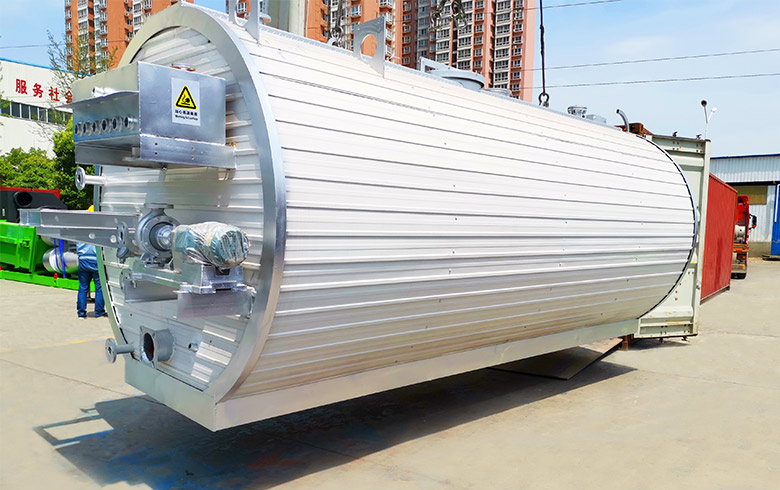

Electric heating bitumen tank
Electric heating bitumen tank, the structure is compact, easy to install and transport, simple to operate, with a high level of automation and no pollution. This kind of bitumen tank is widely used in some countries.
direct heating bitumen tank
The direct heating bitumen tank from our company is heated by hot oil circulation, which ensures uniform and thorough heating of the bitumen due to the absence of partial direct heating and constant temperature maintenance at all times.
containerized bitumen tanks
The main advantage of containerized bitumen tanks is their mobility. Since they are enclosed in standard shipping containers, this makes them a valuable asset for mobile storage and heating of bitumen. Whether in the process of road construction or in large industrial applications, these containers provide ease of keeping the bitumen in working condition so that it can be easily transported and laid when needed.
Technical Parameters
Technical Parameters of Bitumen Tank

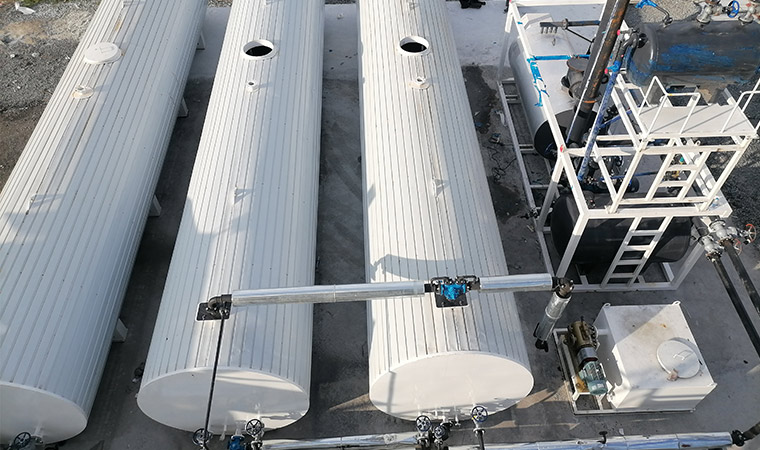

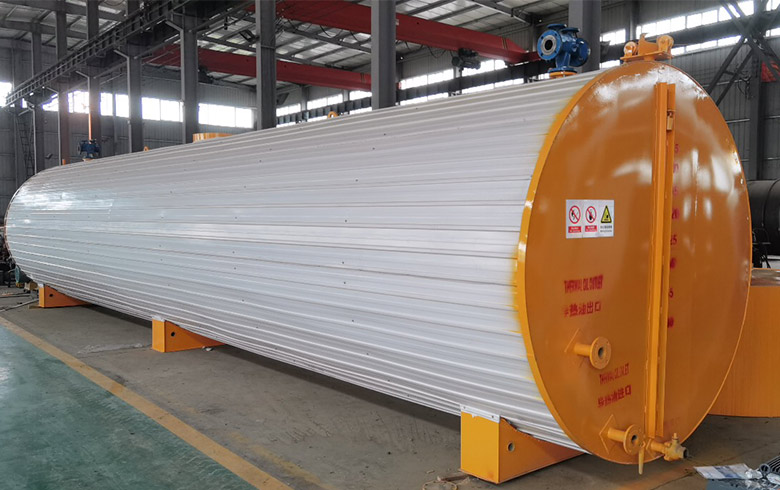

Horizontal bitumen tank
CapacityDimensionsHeating methodInsulation thicknessRemark
20m³φ2250*6000 Electric heating/hot oil heating100/50mm1.Dimensions can be customized.
2.Optional burners for direct heating.
30m³φ2250*9500Electric heating/hot oil heating100/50mm
40m³φ2250*11500Electric heating/hot oil heating100/50mm
50m³φ2600*11500Electric heating/hot oil heating100/50mm
60m³φ2800*11500Electric heating/hot oil heating100/50mm
80m³φ3100*11500Electric heating/hot oil heating100/50mm

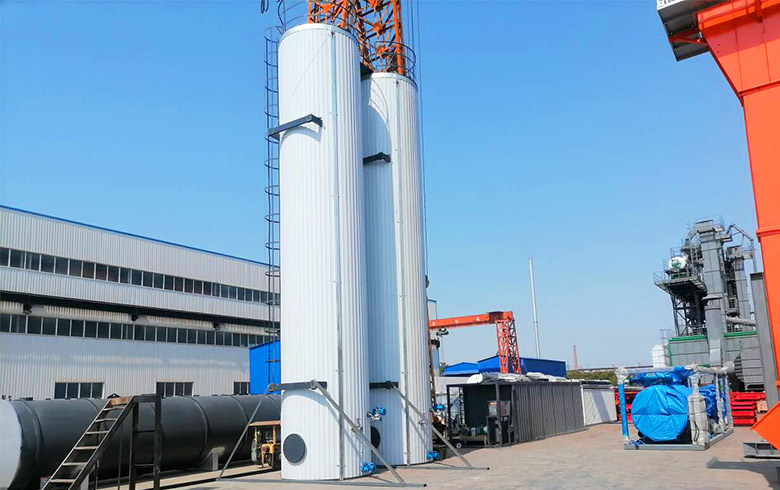

Vertical bitumen tank
CapacityDimensionsHeating methodInsulation thicknessRemark
20m³φ2250*6000Electric heating/hot oil heating100/50mmDimensions can be customized.
30m³φ2250*9500Electric heating/hot oil heating100/50mm
40m³φ2250*11500Electric heating/hot oil heating100/50mm
50m³φ2600*11500Electric heating/hot oil heating100/50mm
60m³φ2800*11500Electric heating/hot oil heating100/50mm
80m³φ3100*11500Electric heating/hot oil heating100/50mm



Containerized bitumen tank
CapacityDimensionsHeating methodInsulation thicknessRemark
24m³20GP:6.085×2.438×2.591Electric heating / Heat transfer oil heating / Burner heating100/50mm
60m³40HQ:12192*2438*2896Electric heating / Heat transfer oil heating / Burner heating100/50mm
