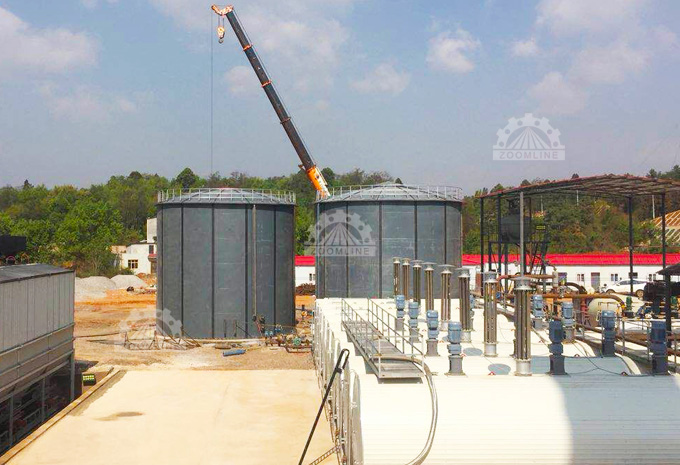

Bitumen Tank Farm

SD series bitumen tank farm is a new kind of storage tank, to meet the need of high grade highway construction, and it is widely used in highway construction, petroleum, chemical, logistics, trade and other fields. The design is novel, economical and practical, compared with the traditional bitumen tank farm.
Internal diameter: Φ6453-Φ23364mm
Total height: 7539-15034mm
Rated floor: 38-466㎡
Heat transfer oil in the tank: 0.3-1.7ton
Introduction
Advantages
Parameters
Related Products
Inquiry
Introduction
Bitumen Tank Farm
Get Price Quote
Contact Us
+86-18838114766
PRODUCT ADVANTAGES
Main Advantages of Bitumen Tank Farm
Modular structure / easy disassembly / flexible transition / efficient and fast
The tank body of the bitumen tank farm is a modular structure, which is composed of several steel plate units, and the units are fastened by high-strength bolts, which can achieve no damage and rapid transition when needed, and is suitable for mobile construction.
Reusable/economical/unit shipping/low shipping costs
Practice has proved that the modular storage tank can be re-used more than ten times with a one-time investment, and can be relocated and used at any time according to the needs of users. Taking SD2000 as an example, the cost of re-use is only 20-30% of the traditional storage tank with the same reserves. It not only saves investment, but also realizes the recycling of resources. After the storage tank is removed, the size of each unit meets the transportation requirements, which greatly reduces the transportation cost. Taking SD2000 as an example, 3-4 13-meter trailers are required for domestic transportation, and 3-4 40-foot open-top containers are required for international transportation. When applied to the site of an asphalt mixing plant, a lot of land acquisition area can be saved. One SD500 storage tank occupies only 1/4 of the traditional 10 horizontal 50 tanks (same storage).
Reusable/economical/unit shipping/low shipping costs
The tank wall plate of the connection parts are connected by high-strength bolts and high-temperature and oil-resistant sealant film with a special structure to prevent the medium from seeping out. The higher the pressure, the higher the sealing degree. Each unit of the storage tank is made of standard steel siding, factory-made, and the production line is advanced in technology, safe and reliable. The detachable design of the product can be used as a temporary facility to meet the needs of temporary transfer of asphalt for special projects. The product technology is mature and the models are complete, ranging from SD100 to SD5000, which can meet the needs of customers for different reserves and storage area configuration.
Technical Parameters
Technical Parameters of Bitumen Tank Farm
ModelInternal diameter (mm)Total height(mm)Rated floor area (m²)SPEC of high-barrier trucks/Load required for a single tankNo. of storage tanks/Load required for 40ft OT containersReference amount of heat transfer oil in the tank (ton)Rated installers / cycle
SD200-AΦ64537539389.6m/13/10.35 persons/5 days
SD300-AΦ77467940549.6m/12/10.45 persons/5 days
SD500-AΦ9028963971.513m/11/10.66 persons/5 days
SD1000-AΦ116221169611613m/21/20.86 persons/7 days
SD2000-AΦ148501411118613m/31/31.28 persons/10 days
SD3000-AΦ181661427127413m/41/41.59 persons/13 days
SD5000-AΦ233641503446613m/51/51.711 persons/15 days
SD10000-AΦ233641916396515m/81/101.917 persons/20 days
SD20000-AΦ2336425792143615m/131/202.219persons/23 days
