Coal Burner
Coal Burner
Coal Burner
Coal Burner
Coal Burner
Coal Burner
Coal Burner
Coal Burner

Coal Burner

ZOOMLINE coal burner is mainly used in asphalt mixing plant, boiler, dryer (such as brick kiln), metallurgy and other industries.
Plant Capacity: 15-400T/H
Motor Power: 16.95-254.95KW
Coal Consumption:180-5600kg/h
Asphalt Temperature: 130-180℃
Introduction
Advantages
Parameters
Components
Related Products
Inquiry
Introduction
MFR Series Coal Burner

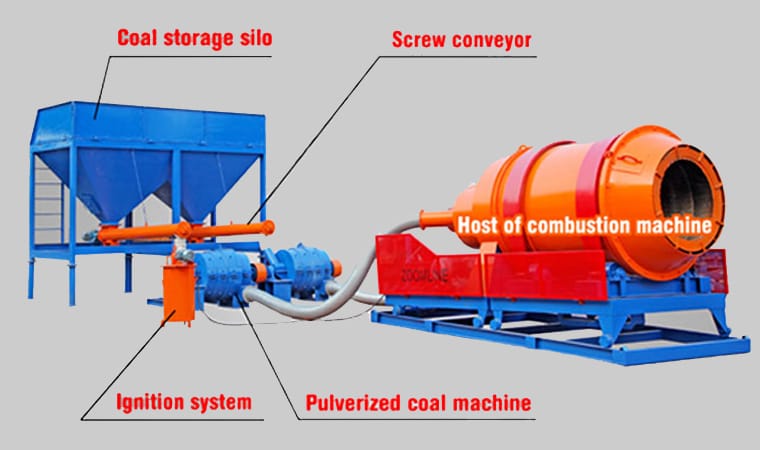

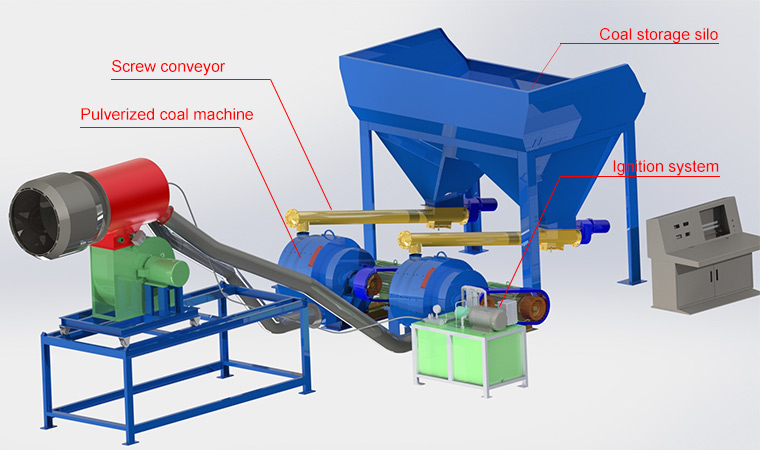

MFR series pulverized coal burner is mainly composed of pulverized coal machine, host of combustion machine(including combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system) control system, ignition system, the crater and others.

Get Price Quote
Contact Us
+86-18838114766
PRODUCT ADVANTAGES
Main Features of MFR series Coal Burner
Adopts new structure, change the traditional burner mechanism, exclusively using of rotary combustion burners to solve the problems of traditional burners which are easy slag-bonding and incomplete burning and etc.
High flame temperature, energy saving and completely burning.
Adopts the exclusive ingredients of firebrick of high performance, prolong service life.
Continuous production, has no need to scarfing cinder everyday.
Lower production cost, is only the 1/3 of oil burner.
With high automaticity, convenient to control aggregate temperature, discharging aggregate through dry mixing drum.
Port temperature measuring equipment return signal to the frequency changer of coal machine , change the aggregate temperature through frequency changer automatically control the volume of coal.
Ignite is simple and easy, auto and manual ignition is optional. Ignition oil gun nozzle with special structure, atomization effect, kerosene combustion.
Technical Parameters
Technical Parameters of Coal Burner

MFR Coal Burner

Model Coal Consumption

(kg/h)

Power(kw) Coal Pulverizer Asphalt Temperature

(℃)

Plant Capacity(t/h)
MFR20 180-280 16.95 MFJ20 130-180 15-30
MFR40 370-560 31.25 MFJ40 130-180 25-50
MFR60 560-840 32.75 MFJ60 120-180 25-55
MFR80 720-1120 41.25 MFJ80 130-180 70-85
MFR120 1120-1680 73.75 MFJ120 130-180 100-125
MFR160 1490-2240 80.25 MFJ80+MFJ80 130-180 140-170
MFR200 1850-2800 105.25 MFJ120+MFJ80 130-180 160-220
MFR240 2240-3360 138.45 MFJ120+MFJ120 130-180 200-250
MFR320 2980-4480 194.95 MFJ120+MFJ120+MFJ120 130-180 280-340
MFR400 3730-5600 254.95 MFJ150+MFJ150+MFJ150 130-180 360-400



Model Coal Consumption(kg/h) Power(kw) Coal Pulverizer Asphalt Temperature() Plant Capacity(t/h)
MFR-S300 180-280 21.25 MFJ20 130-180 25-50
MFR-S500 370-560 29.75 MFJ40 130-180 25-50
MFR-S1000 720-1120 44.75 MFJ80 130-180 70-85
MFR-S1500 1120-1680 54.75 MFJ120 130-180 100-125
MFR-S2000 1490-2240 92.75 MFJ80+MFJ80 130-180 140-170
MFR-S2500 1850-2800 108.75 MFJ120+MFJ120 130-180 160-220
MFR-S3000 2240-3360 115.75 MFJ120+MFJ120 130-180 200-250
MFR-S4000 2980-4480 194.95 MFJ120+MFJ120+MFJ120 130-180 280-340
MFR-S5000 3730-5600 254.95 MFJ150+MFJ150+MFJ150 130-180 360-400
MFR Series Pulverized Coal Burner Working Principle

The coal that diameter less than 20 mm is crushed by coal power crusher firstly, then the coal power is transported to main burning chamber by flexible pipe, and then ignited by oil gun. Meanwhile, the blowing fan provide wind to main burning chamber through circular rotary wind pathway in back coverer, wind go forward along inner wall in chamber, the high temperature airflow mix coal powder and then burn strongly, the high temperature flame sprays from the fire outlet and come into drying drum to heat the cold aggregate.
