Belt Concrete Batching Plant

Belt Concrete Batching Plant is suitable for engineering, civilian buildings, highways, railways, bridges, electric power, water conservancy, ports, docks, airports and other engineering construction.

Capacity: 60m3/h-240m3/h

Unloading capacity: 1000-4000L

Unloading Height: 4.2m

Motor Power: 90kw-320kw

Send Email

Chat Now

Share With:

Introduction

Advantages

Parameters

Related Products

Inquiry

Introduction

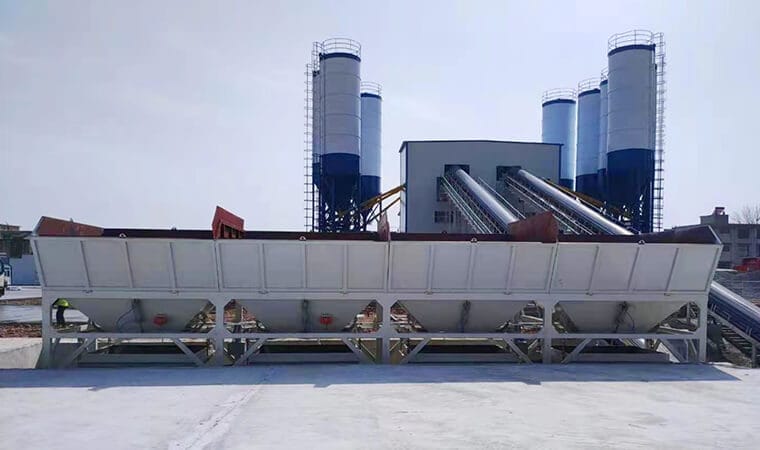

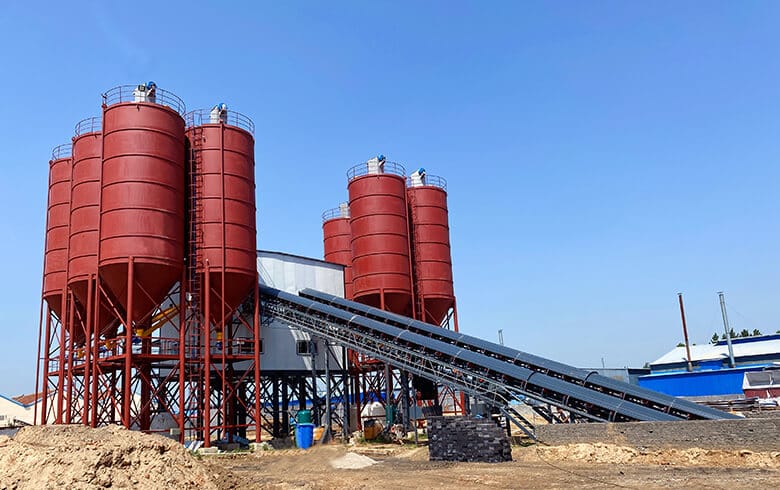

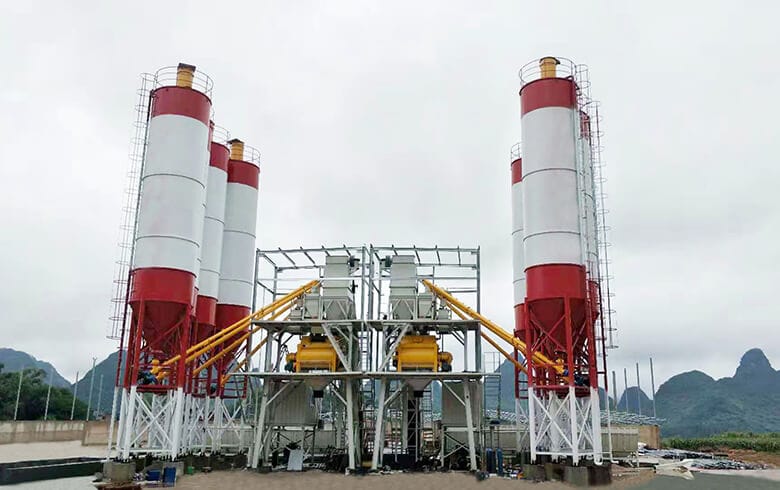

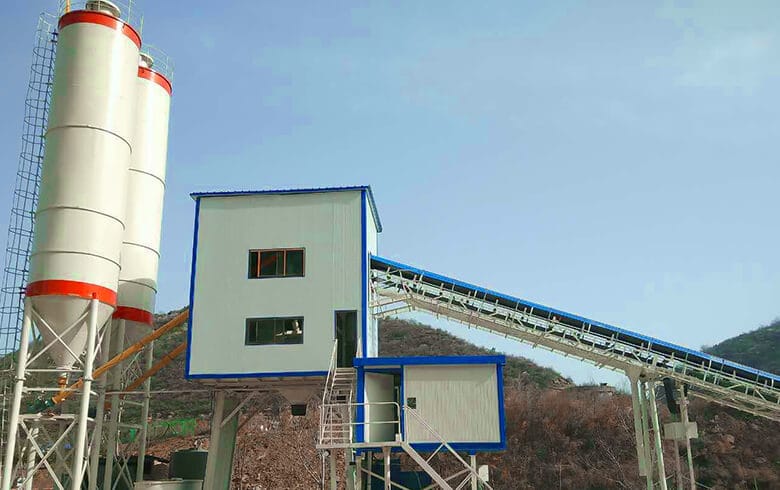

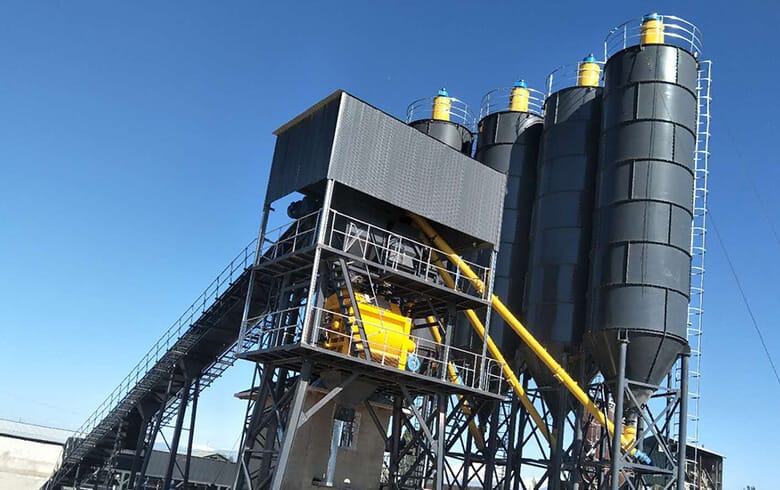

Belt Concrete Batching Plant

HLS series concrete mixing building is a fully automatic concrete mixing set of equipment composed of batching, mixing, electrical control system and other parts, with high-precision microcomputer control system, and is equipped with separate manual control, with ratio storage, automatic compensation of drop, and equipped with printing system, which can automatically complete the scheduled production.
This plant is suitable for concrete construction of industrial, civil construction, highway, railway, bridge, electric power, water conservancy, port, wharf, airport and other projects, and can be used as a mixing equipment for commercial concrete production. It can also be combined with different forms and specifications of combined concrete mixing plants according to the needs of different users.

Get Price Quote

+86-18838114766

PRODUCT ADVANTAGES

Main Features of Belt Concrete Batching Plant

Long conveying distance, large conveying output, smooth and stable operation.

Low failure rate, less wearing parts than bucket type plant.

High work efficiency, good quality of concrete produced.

Flexible layout, with a variety of layout forms, can adapt to the requirements of different sites.

The driving system of the mixer adopts planetary gear, and the universal joint drive shaft ensures that the two mixing shafts rotate at the same speed.

The main engine lubrication system adopts advanced centralized lubricating oil supply, with overpressure protection and low oil level alarm, safe and reliable.

Computer+PLC control system is easy and stable to operate, and intelligent control based on humanized design enables uninterrupted production of equipment. The dynamic screen is displayed in real time, so that the operator can clearly understand the operation of each part. Automatic detection of abnormal working conditions and faults, using text, sound, light and alarm prompts to facilitate fault maintenance and elimination. Report print management is possible.

Each repair and maintenance part is equipped with a platform or ladder for easy maintenance. All powdery materials, from feeding, batching, measurement, feeding to stirring and discharging, are carried out in a closed state, which greatly reduces the pollution of dust and noise to the environment, and has good environmental performance.

Technical Parameters

Technical Parameters of Belt Concrete Batching Plant

Model		HLS60	HLS90	HLS120	HLS180	HLS240
Max. Theoretical Capacity (m3/h)		60	90	120	180	240
Mixer	Model	JS1000	JS1500	JS2000	JS3000	JS4000
	Motor power (kW)	2*18.5	2*30	2*37	2*55	2*75
	Unloading capacity (l)	1000	1500	2000	3000	4000
	Max. aggregate size (mm)	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Aggregate Bins (m3)		4*15	4*15	4*20	4*25	4*35
Limit and accuracy of weighing	Aggregate	(0-2500)kg±2%	(0-3600)kg±2%	(0-4500)kg±2%	(0-6500)kg±2%	(0-8500)kg±2%
	Cement	(0-400)kg±1%	(0-600)kg±1%	(0-800)kg±1%	(0-1200)kg±1%	(0-1600)kg±1%
	Coal Ash	(0-300)kg±1%	(0-400)kg±1%	(0-500)kg±1%	(0-600)kg±1%	(0-700)kg±1%
	Water	(0-300)kg±1%	(0-400)kg±1%	(0-500)kg±1%	(0-800)kg±1%	(0-1000)kg±1%
	Additive	(0-30)kg±1%	(0-40)kg±1%	(0-50)kg±1%	(0-80)kg±1%	(0-120)kg±1%
Unloading Height (m)		4.2	4.2	4.2	4.2	4.2
General Power (kW)		90	125	160	200	320
