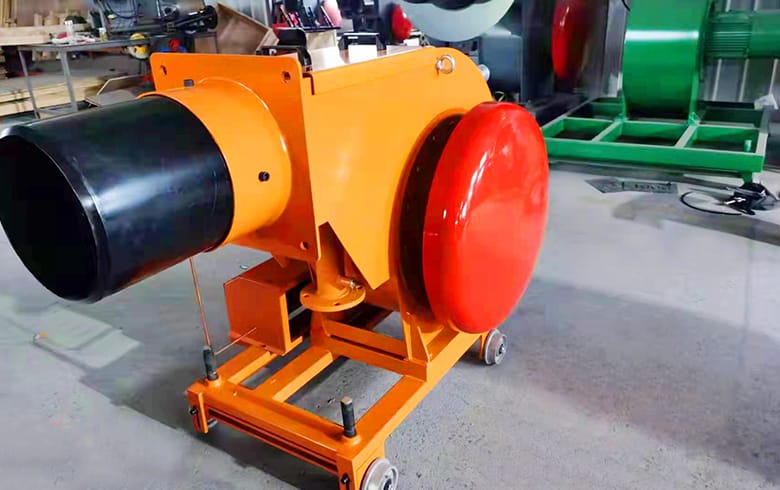

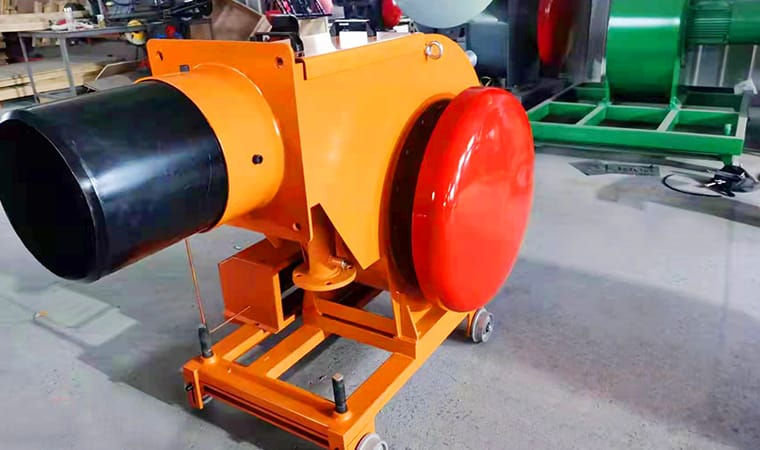

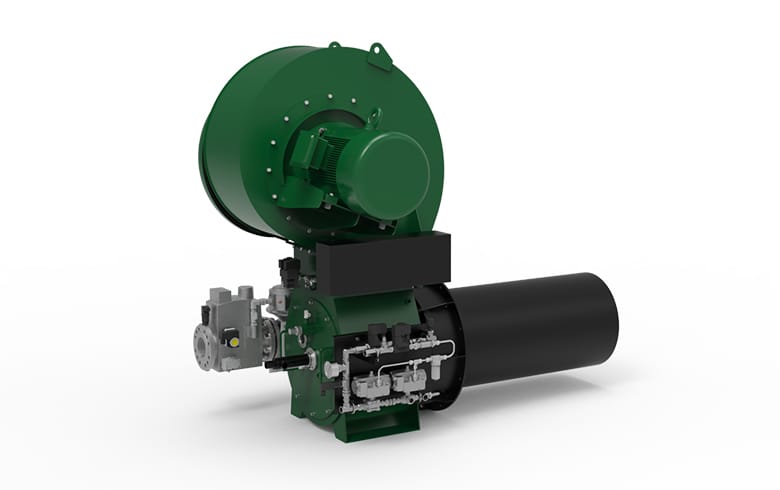

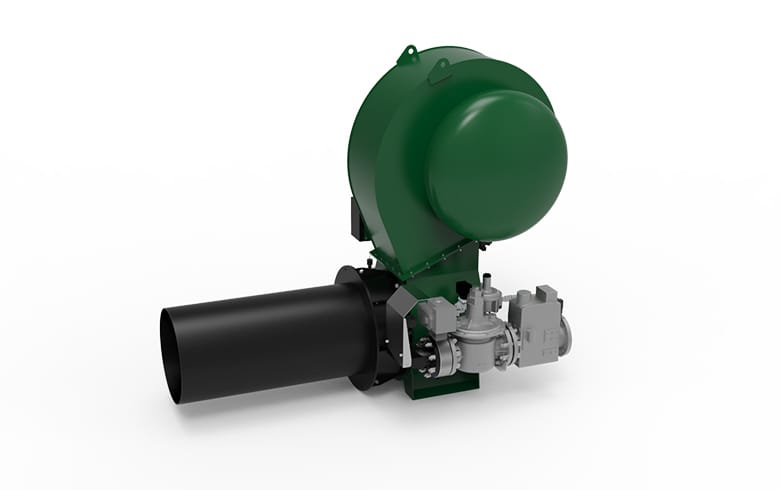

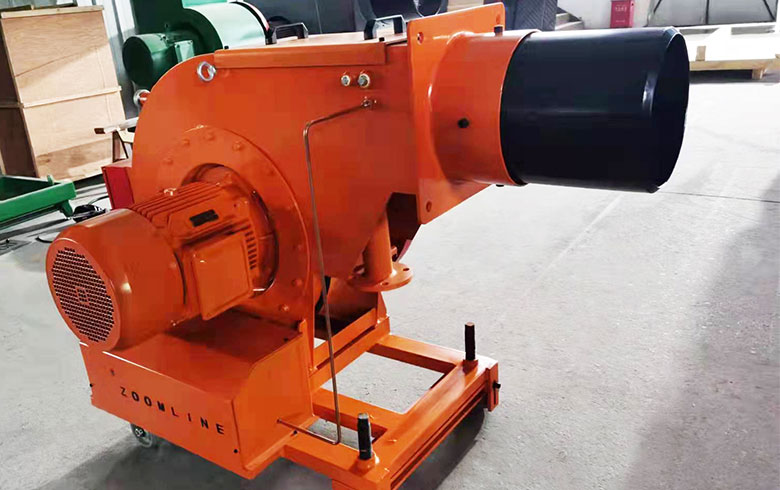

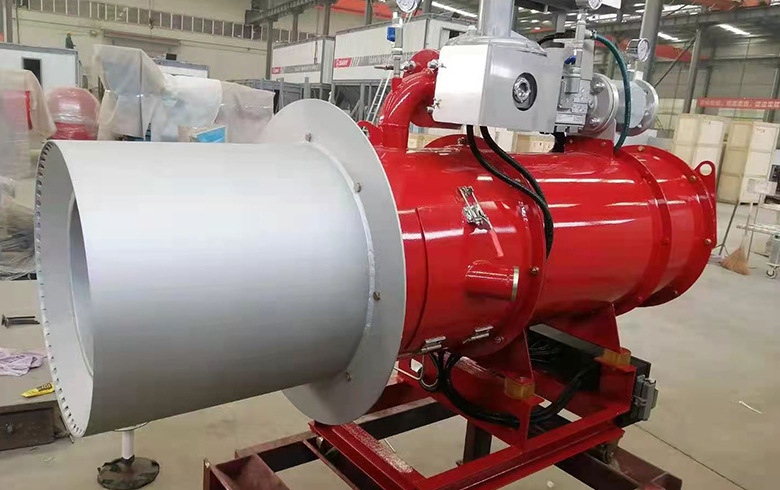

Oil And Gas Dual-use Burner from China Manufacturer - Henan ZOOMLINE Machinery CO., Ltd

PRODUCT ADVANTAGES

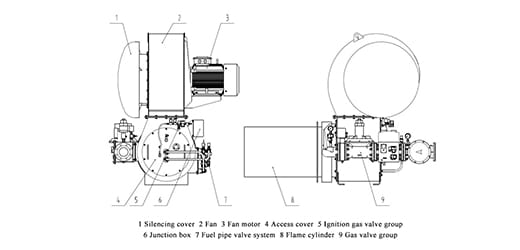

Main Features of Oil And Gas Dual-use Burner

The centrifugal fan is used for air supply, and the air distribution is adjusted according to the speed of the fan;

The adjustment of fuel combustion power is realized by controlling the fuel injection amount by controlling the speed of the fuel pump;

The adjustment of gas combustion power is realized by using electric actuator to control the amount of gas passing through the butterfly valve;

The ratio adjustment of fuel and air distribution is realized by the parameters preset in the controller;

The fuel nozzle adopts compressed air atomization;

The running sequence when starting and stopping is controlled by the automatic burner controller and the flame monitoring device, both of which ensure the best safety performance of the equipment in any operating state;

When the gas is burning, there is a leak detection procedure for the gas valve group at the beginning of the startup. If the leak detection procedure fails, the system will stop running and alarm to ensure the safety of operation;

Automatic gas ignition device is used when igniting, and the gas is ignited by high-pressure sparks. Use propane gas, liquefied petroleum gas or acetylene for ignition gas;

When the burner stops working, the main oil valve and the circulation valve on the fuel line are closed, and the oil pump stops rotating, thereby preventing the fuel from flowing out of the nozzle;

In addition to the butterfly valve for adjusting the flow, there are two normally closed gas valves on the gas pipeline. When the gas is not in use, the gas valve is closed, so that the gas will not leak to the gas nozzle;

There is an oil temperature and oil pressure detection device on the fuel pipeline;

There are gas low-pressure and over-pressure detection devices on the gas pipeline, which can ensure the safety when using gas.

Technical Parameters

Technical Parameters of Oil And Gas Dual-use Burner

I. Oil Burner
Model	ZRS1000	ZRS1200	ZRS1500	ZRS2000	ZRS2500	ZRS3000
Max. Oil Consumption (kg/h)	630	765	900	1200	1500	1800
Max. Output Power (MW)	7	8.5	10	13.3	16.6	20
Blower Power (KW)	7.5	7.5	15	18.5	22	22
Oil Pump Power (KW)	1.5	1.5	1.5	2.2	2.2	3
Capacity of Supporting Asphalt Plant (T/H)	60-80	80-100	100-120	120-160	160-200	200-240
Ignition Method	High voltage electronic ignition, independent gas ignition gun
Oil Atomization Method	Low pressure internal mixing bubble atomization
Adjustment Ratio	1:6
Compressed Air Pressure	≥0.6MPa
Oil Supply Pressure	≤0.03Mpa (self-flow into the filter inlet of the oil pump group)
Fuel	Diesel/ Heavy oil
Control Mode	PLC control, fan and oil pump motors are controlled by frequency converters; with flame safety monitoring, automatic purging and quick shutdown functions in case of failure
Note: The above parameters are valid under the following conditions:
Fuel meets international standards; Working altitude ≤1000m; Heavy oil calorific value ≥9600kcal/kg; Diesel calorific value ≥10200kcal/kg.
II. Gas Burner
Model	ZRS1000G	ZRS1200G	ZRS1500G	ZRS2000G	ZRS2500G	ZRS3000G
Max. Gas Consumption (NM3/h)	680	825	970	1290	1620	1940
Max. Output Power (MW)	7	8.5	10	13.3	16.6	20
Blower Power (KW)	7.5	7.5	15	18.5	22	22
Gas Valve Group Diameter	DN65	DN65	DN80	DN80	DN100	DN100
Capacity of Supporting Asphalt Plant (T/H)	60-80	80-100	100-120	120-160	160-200	200-240
Ignition Method	High voltage electronic ignition, independent gas ignition gun
Gas for Ignition	Propane/LPG/Acetylene
Adjustment Ratio	1:06
Natural Gas Pressure	45-55KPa
Fuel	Natural gas
Control Mode	PLC control, fan and oil pump motors are controlled by frequency converters; With flame safety monitoring, automatic purging and quick shutdown functions in case of failure; With gas high and low pressure protection, gas valve group leak detection function
Note: The above parameters are valid under the following conditions:
Fuel meets international standards; Working altitude ≤1000m; Calorific value of natural gas ≥8600kcal/Nm3.
III. Oil&Gas Dual-use Burner
Model	ZRS1000GN	ZRS1200GN	ZRS1500GN	ZRS2000GN	ZRS2500GN	ZRS3000GN
Max. Oil Consumption (kg/h)	630	765	900	1200	1500	1800
Max. Gas Consumption (NM3/H)	680	825	970	1290	1620	1940
Max. Output Power (MW)	7	8.5	10	13.3	16.6	20
Blower Power (KW)	7.5	7.5	15	18.5	22	22
Oil Pump Power (KW)	1.5	1.5	1.5	2.2	2.2	3
Gas Valve Group Diameter	DN65	DN65	DN80	DN80	DN100	DN100
Capacity of Supporting Asphalt Plant (T/H)	60-80	80-100	100-120	120-160	160-200	200-240
Ignition Method	High voltage electronic ignition, independent gas ignition gun
Gas for Ignition	Propane/LPG/Acetylene
Oil Atomization Method	Low pressure internal mixing bubble atomization
Adjustment Ratio	1:06
Compressed Air Pressure	≥0.6MPa
Oil Supply Pressure	≤0.03Mpa (self-flow into the filter inlet of the oil pump group)
Natural Gas Pressure	45-55KPa
Fuel	Diesel/ Heavy oil/Natural gas
Control Mode	PLC control, fan and oil pump motors are controlled by frequency converters; With flame safety monitoring, automatic purging and quick shutdown functions in case of failure; The gas burner is with gas high and low pressure protection, gas valve group leak detection function
Note: The above parameters are valid under the following conditions:
Fuel meets international standards; Working altitude ≤1000m; Heavy oil calorific value ≥9600kcal/kg; Diesel calorific value ≥10200kcal/kg; Calorific value of natural gas ≥8600kcal/Nm3.
