Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant
Stabilized Soil Mixing Plant

Stabilized Soil Mixing Plant

Stabilized soil mixing plant is widely used in the stabilized soil construction of highway, urban road, plaza and airport. It is suitable for continuously mixing different grade limes, stones, cement stabilized soil and industrial wastes to produce finished stabilized soil.
Capacity: 200-800T/H
Motor Power: 71-191KW
Finished-Product Silo Capability: 4-8m3
Measuring Accuracy: Aggregate ±3%,Cement ±1.5%,Water ±1.5%
Introduction
Advantages
Parameters
Related Products
Inquiry
Introduction
Stabilized Soil Mixing Plant

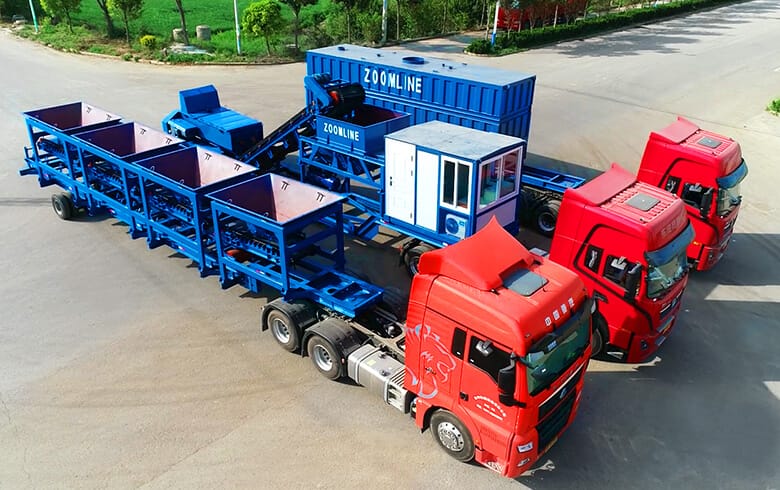

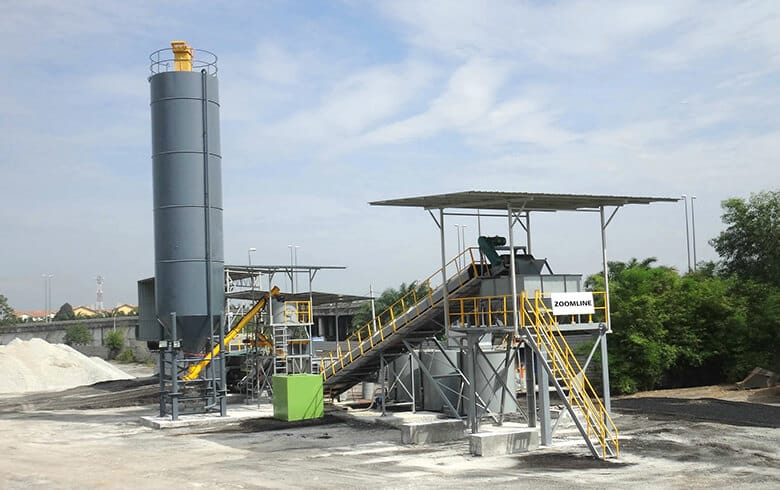

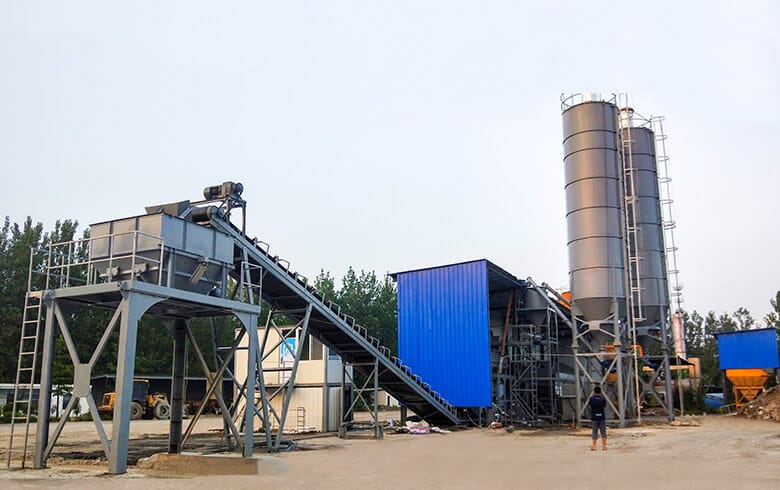

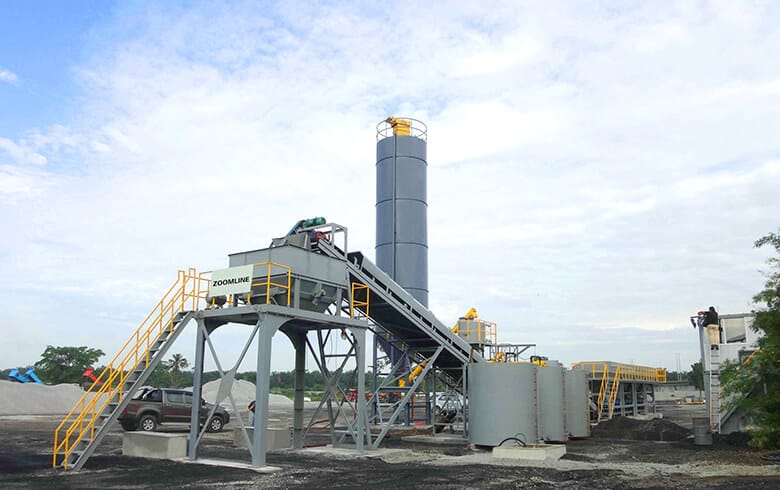

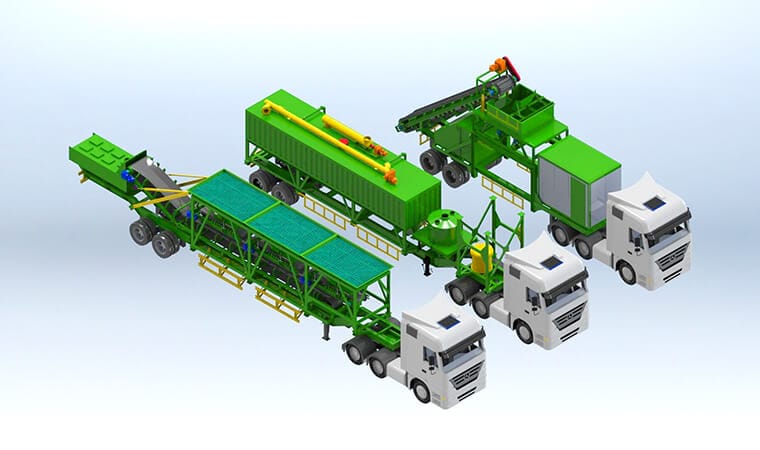

Cement stabilized soil mixing plant is composed of aggregate bin with weighing system, filler bin with weighing system, mixing system, finished material conveyer, finished material storage bin, control system. It can be divided into stationary and mobile type.

Get Price Quote
Contact Us
+86-18838114766
Stabilized Soil Mixing Plant
PRODUCT ADVANTAGES
Main Features of Stabilized Soil Mixing Plant
It adopts modular design and is easy to transport. And batching system adopts frequency electronic weighing to make accurate weighing.
Filler supply system equips dual dust removal system and constant flow bin, which makes the cement weighing more accurate and unpolluted.
It adopts double continuous shaft mixer, featuring chain drive, mixing evenly and easy maintenance.
Manual and automatic control system can be options. IPC ensures the safe running of the Plant.
Technical Parameters
Technical Parameters of Stabilized Soil Mixing Plant
Model (Y)WBC200 (Y)WBC300 (Y)WBC400 WBC500 WBC600 WBC700 WBC800
Rated Output(T/H) 200 300 400 500 600 700 800
Installed Power(KW) 71 88 120 140 148 168 191
Aggregate Type 3 3 4 4 5 5 6
Feed Particle Size ≤45 ≤45 ≤45 ≤60 ≤60 ≤60 ≤60
Finished-Product Silo Capability 4 4 7 7 7 8 8
(M3)
Measuring Accuracy Aggregate ±3% ±3% ±3% ±3% ±3% ±3% ±3%
Cement ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
Water ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
Measuring Aggregate Electronic belt scale Electronic belt scale Electronic belt scale Electronic belt scale Electronic belt scale Electronic belt scale Electronic belt scale
Cement Electronic screw scale Electronic screw scale Electronic screw scale Electronic screw scale Electronic screw scale Electronic screw scale Electronic screw scale
Water Flow meter Flow meter Flow meter Flow meter Flow meter Flow meter Flow meter
Occupied Area(max) 35×19 35×19 46×22 48×22 52×22 52×26 58×29
