Municipal road renovation and traffic infrastructure upgrading projects in Dhaka, Bangladesh, South Asia have long faced severe construction environment constraints. High temperature and scorching heat all year round, concentrated heavy rainfall in rainy season, high dust pollution on construction site, coupled with increasingly strict local environmental protection policies, make it difficult for conventional standard asphalt mixing plants to adapt. Ordinary asphalt plant generally has problems such as capacity fluctuation, frequent shutdown failure, substandard mixture quality, excessive emission, etc., which seriously slows down the construction progress and affects the pavement construction quality. In response to the harsh construction pain points in South Asia, ZOOMLINE launched a customized ZAP-S80 80TPH stationary batch type asphalt mixing plant, which officially landed in Dhaka in 2021. With stable 80 tons/hour capacity, precise grading control system and energy-saving and environment-friendly operation advantages, the equipment solves local infrastructure construction problems in one stop and continuously delivers high-quality asphalt mixture for infrastructure construction in Dhaka and surrounding areas.

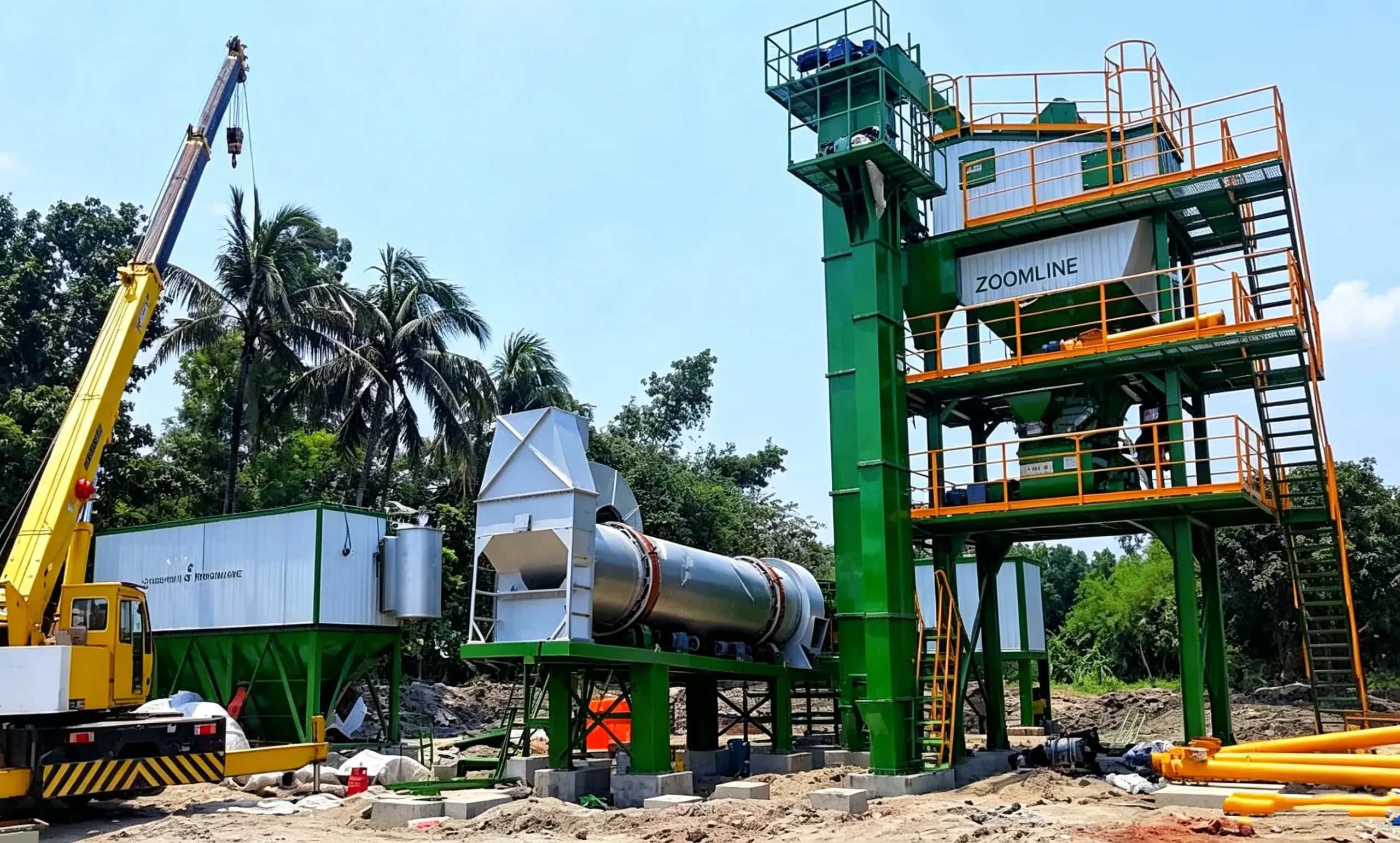

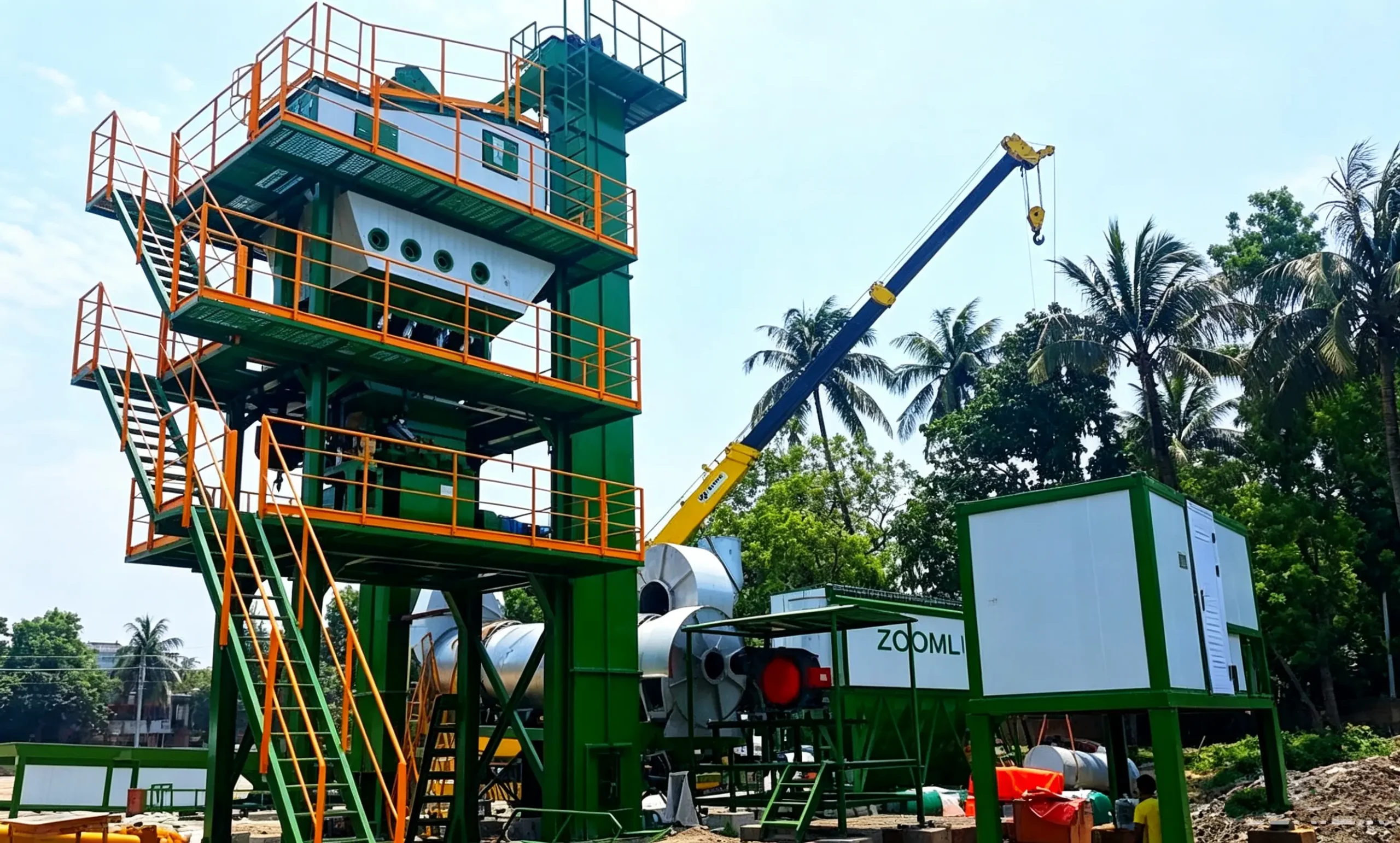

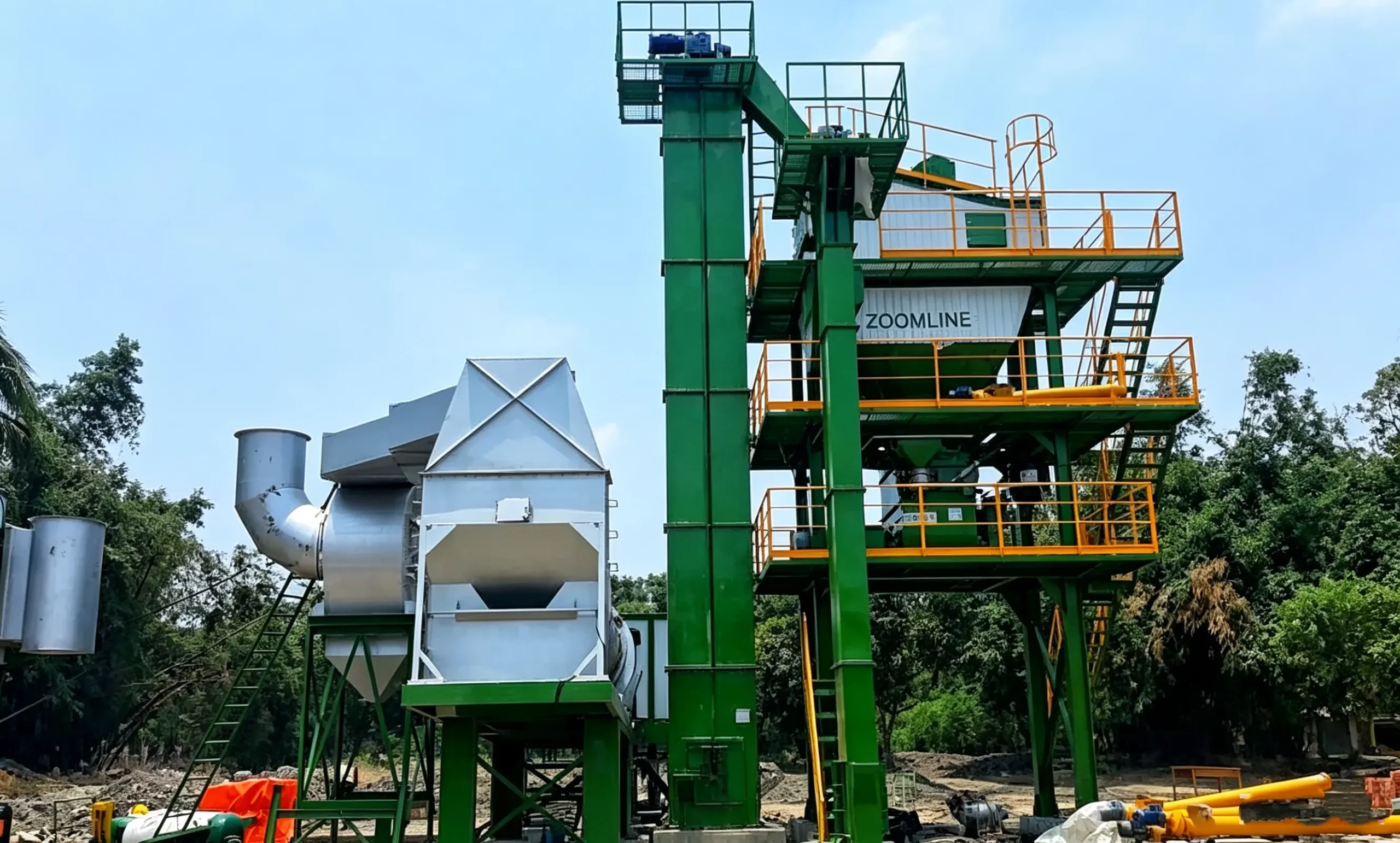

The customized asphalt mixing plant landing project is located in Dhaka, the capital of Bangladesh. The equipment model is ZOOMLINE ZAP-S80 stationary asphalt mixing plant. The installation and commissioning were completed and officially put into operation in July 2021. The project is a benchmark customized project for ZOOMLINE to deeply cultivate the infrastructure market in South Asia. The core services are key infrastructure projects such as Dhaka municipal road reconstruction and urban traffic network upgrading. It is also a typical case of localization adaptation of medium and high-end engineering equipment in China-Bangladesh infrastructure cooperation. It is specially tailored for the harsh construction scenarios of high temperature, high humidity and high dust in South Asia.
The client of this cooperation is a well-known local engineering contractor in Bangladesh, undertaking key infrastructure projects such as municipal road renovation, traffic trunk line reconstruction and expansion, urban and rural road network improvement in Dhaka and surrounding areas for a long time. The customer has been deeply engaged in the local infrastructure industry for many years, with huge project volume and concentrated construction cycle, and has long-term, large-scale and uninterrupted supply demand for asphalt mixture. At the same time, municipal infrastructure projects have strict standards for pavement flatness, durability and construction qualification rate, so customers put forward extremely high requirements for the operation stability, production efficiency, mixture quality and environmental compliance of bitumen mixing plants.
Dhaka’s special geographical climate and construction environment make it difficult for general asphalt batching plants to adapt. Customers have long faced multiple construction problems, which are mainly divided into two dimensions: natural environment constraints and equipment operation and construction.
In view of multiple construction bottlenecks, customers abandoned the traditional general asphalt batch mix plant procurement ideas and defined precise equipment investment and upgrading objectives:
One is to purchase specialized customized bitumen batch mix plants suitable for South Asia’s high temperature, rainy and high dust conditions to solve the equipment adaptability problem from the root cause;
The second is to achieve 80TPH stable continuous production capacity and match the high-intensity and uninterrupted supply demand of infrastructure construction materials.
Third, relying on high-precision mixing control system, ensure the quality of asphalt mixture, improve pavement construction standards and project acceptance rate;
Fourth, realize low energy consumption and ultra-low emission green production, conform to local environmental protection policies, and reduce long-term operation energy consumption costs and compliance risks.
ZOOMLINE iteratively optimizes the parameters of the whole system of ZAP-S80 asphalt mixing plant in combination with local climate characteristics, construction intensity, environmental protection standards and customer core requirements in Dhaka. All parameters are suitable for harsh construction scenarios in South Asia, laying a solid hardware foundation for pain point solution and efficient operation. Detailed technical parameters of the equipment are as follows:
| Parameter Categories | Specific Parameters |
| Core Capacity | The standard production capacity is 80 tons/hour, and the drying capacity can reach 80-100 tons/hour, which can meet the continuous construction material supply demand; the single batch production cycle is 40-45 seconds, and the whole process is controllable, efficient and stable. |
| Cold Aggregate Supply System | 4 groups of bins are configured, with a single bin volume of 6.5 cubic meters and a total volume of 26 cubic meters; the belt conveyor has a conveying capacity of 100 tons/hour, equipped with variable frequency speed regulation design, wide speed regulation range and stable operation; the top of the bin is equipped with a screening device to prevent large materials from entering the equipment and avoid equipment jamming. |
| Drying System | Drying drum specification Φ1500×6600mm, using optimized blade geometry design, heating efficiency is 30% higher than traditional equipment; equipped with composite insulation drying drum, supporting roller adopts motor gear friction drive structure, strong operation stability, short cooling cycle, suitable for high humidity material drying requirements. |

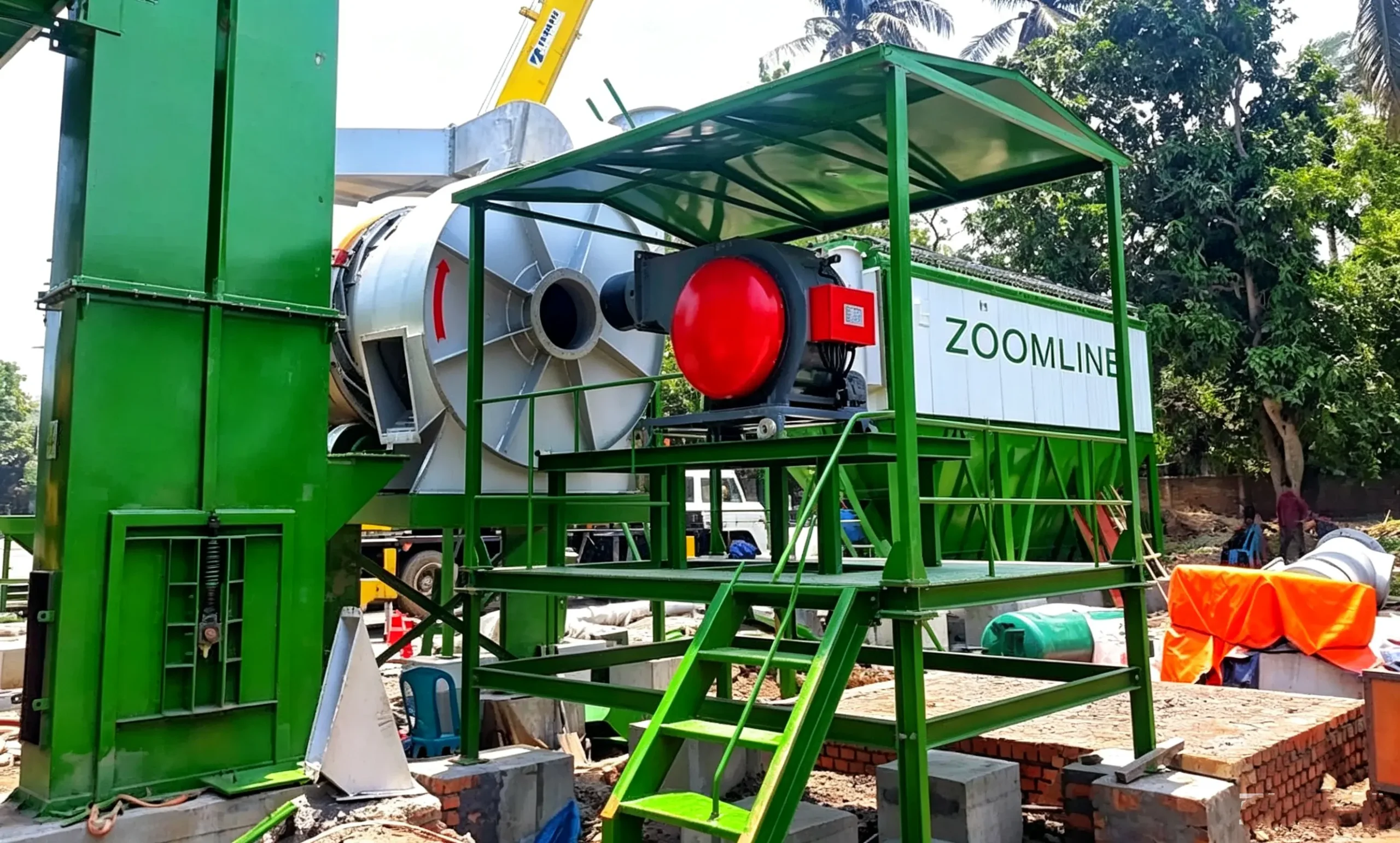

| Combustion System | Equipped with Italian brand efficient burner, support diesel, heavy oil, natural gas multi-fuel adaptation; fuel consumption as low as 6.5-7kg/ton, fuel injection volume 60-600kg/h; nitrogen oxides, sulfur dioxide and other exhaust emissions are low, in line with international and local environmental protection construction standards. |
| Mixing System | It adopts long-arm short-axis two-way three-dimensional mixing blade design, with high mixing uniformity; with multi-point spraying technology of pressurized bitumen pump, it realizes all-round coating of aggregate; optimizes discharge time, greatly improves operation efficiency, and ensures uniform and stable quality of each batch of mixture. |

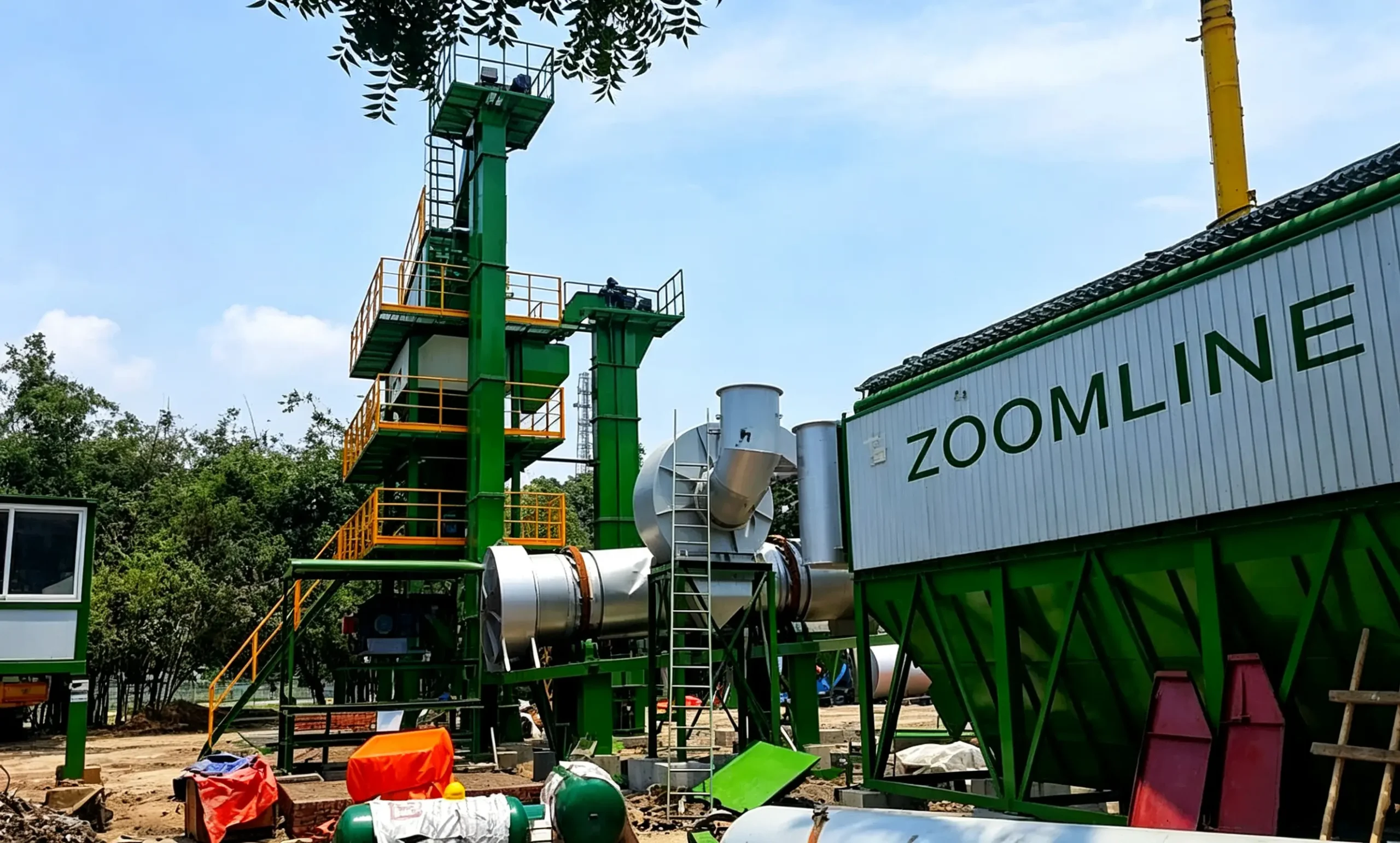

| Dust Collection System | Duplex filter structure of gravity primary dust removal + bag secondary dust removal, equipped with DuPont Nomex high temperature resistant filter bag, suitable for high temperature construction scenarios; exhaust gas emission concentration ≤20mg/Nm³, up to standard; equipped with high pressure pulse ash cleaning technology, extending the service life of filter bag, and disassembly and maintenance without special tools, convenient and efficient. |
| Control System | Germany Siemens electrical components, Japan Omron PLC control system, with touch screen, strong data processing capacity, real-time storage of operating data, support multi-language switching; control cabinet to achieve IP55 protection level, equipped with thermal insulation container-type control room, can withstand high temperature, high dust harsh environment, easy to operate, stable operation. |
Relying on a full set of optimized hardware parameters, ZOOMLINE has completed the system-wide customization upgrade for all construction pain points of the Dhaka project, truly realizing the closed-loop adaptation of “equipment performance accurately solving construction problems” and fully adapting to the harsh construction conditions in South Asia:
After fully verifying the hardware advantages and pain point solving ability of the equipment, the customer finally gave up the general standard asphalt mixer and selected ZOOMLINE customized ZAP-S80 hot mix asphalt plant. The customized strength and full-dimensional service guarantee of the infrastructure scenario in South Asia are the core keys:
In order to ensure the efficient landing and stable operation of the 80-ton bitumen mix plant and give full play to the performance advantages of customized equipment, ZOOMLINE provides full-process and one-stop customized services for the Dhaka project, running through the whole project:
Since it was officially put into operation in June 2021, ZAP-S80 customized stationary asphalt plant equipment has fully utilized its advantages in adapting to exclusive working conditions, thoroughly solved various construction bottlenecks of customers in the past, and continuously enabled Dhaka infrastructure upgrading by relying on the three core advantages of stable production capacity, precise quality and green efficiency, with remarkable landing results.
The asphalt hot plant can maintain a standardized and stable production capacity of 80 tons/hour throughout the year, which is not affected by severe weather such as extreme high temperature in summer and continuous rainfall in rainy season in Dhaka, completely eliminating the disadvantages of capacity fluctuation and weather limited shutdown of ordinary equipment.
The tar mixing plant can support long-term and high-intensity continuous construction, provide continuous, stable and sufficient high-quality asphalt mixture for large-scale municipal road renovation and surrounding traffic infrastructure projects in Dhaka, fully meet the material demand of customers for large-scale construction, completely solve the core pain points of insufficient material supply, construction stagnation and construction delay in the past, and greatly improve the construction efficiency of the project.
Relying on the optimized three-dimensional bidirectional mixing system and multi-point pressurized spraying technology, the 80-ton hot mix plant realizes ultra-high precision aggregate grading control, and each batch of asphalt mixture is evenly mixed, accurately proportioned and stable in quality.
It thoroughly solved the problems of uneven mixing and uneven quality of traditional asphalt batch mix plant mixture, effectively improved the flatness, compactness and durability of pavement paving, and greatly optimized the overall construction quality of Dhaka key road infrastructure projects.
At the same time, the stable finished product quality effectively avoids the construction rework problem, significantly improves the one-time acceptance rate of the project, and saves a lot of rework costs and time costs for customers.
With efficient combustion system and ultra-low emission dust removal technology, ZAP-S80 fixed asphalt concrete plant equipment realizes green production mode with low energy consumption, low emission and high efficiency. At the same time, the exhaust gas and dust emissions are far lower than the local limits, which is fully in line with the increasingly strict environmental protection regulatory policies of Dhaka, completely avoiding the compliance risks of equipment emission exceeding the standard and rectification shutdown, and achieving multiple win-win results of construction efficiency, economic benefits and green environmental protection.
Relying on the core advantages of stable production capacity, high quality, green and high efficiency, ZAP-S80 asphalt mixing plant has been supplying high-standard asphalt mixture for various municipal roads and traffic trunk infrastructure projects in Dhaka and surrounding areas for many years.
The stable operation of stationary asphalt mixing plant has effectively improved the current situation of uneven road construction quality and aging and damaged road network, comprehensively optimized the urban traffic network system of Dhaka, improved the regional traffic efficiency and infrastructure construction level, and provided solid equipment support for the sustainable development of local urban and rural infrastructure.
Over the years since the project was put into operation, ZAP-S80 customized asphalt mixing plant has been highly recognized by customers for its working condition adaptability, operation stability and construction effect. The customer fully affirmed the exclusive optimization design of the equipment for the harsh working conditions in South Asia, as well as the full-cycle and professional customized service of ZOOMLINE. He believed that the equipment solved the core pain point of local infrastructure construction from the root cause and provided key guarantee for the efficient promotion and quality upgrading of the project.
At the same time, the project has become a benchmark case for customized application of asphalt mixing plant under severe construction conditions in South Asia, fully verifying the core advantages of customized asphalt mixing plant equipment compared with general standard equipment. It further enhanced the brand credibility and industry influence of ZOOMLINE in Bangladesh and the entire South Asian infrastructure equipment market, and accumulated mature experience for the implementation of regional follow-up infrastructure equipment customization projects.
This Dhaka ZAP-S80 stationary asphalt mixing plant project is a typical practice of ZOOMLINE’s customized solution based on customer pain points and actual needs. Based on the special construction environment of high temperature, high humidity, high dust and high load in Dhaka, the project aims at multiple problems such as insufficient production capacity, unstable quality, high energy consumption, limited environmental protection and poor equipment adaptability of customers. Through parameter optimization, structure upgrading, exclusive scheme customization and full-cycle service guarantee, the customized asphalt mixing plant with stable, efficient, controllable quality and green compliance is finally delivered. It fully verifies ZOOMLINE’s R & D strength and solution landing ability for harsh construction scenarios in global regions, and also proves that customized equipment under working conditions can solve the bottleneck of infrastructure construction from the root cause, demonstrating the hard core strength of domestic high-end engineering equipment enabling global infrastructure development.
If you are deeply involved in road infrastructure projects in South Asia or other high temperature, rainy, high dust and high intensity construction areas, ZOOMLINE can provide one-to-one customized asphalt mixing plant solutions for long-term problems such as unstable operation of bitumen mixing plants, substandard mixture quality, insufficient capacity and high environmental compliance pressure. We can accurately optimize equipment parameters and configurations according to the climate environment, construction scale, construction period requirements and local environmental protection policies of your project location, and tailor the equipment scheme with the strongest adaptability and highest cost performance. At present, we can provide project consultation, personalized scheme design and accurate engineering quotation free of charge. Welcome to contact consultation at any time.
