In the asphalt production industry, environmental protection and compliance are critical to corporate development. With increasingly stringent environmental regulations and heightened public concern over air quality, dust emission control at asphalt mixing plants directly impacts corporate competitiveness. Baghouse dust collectors, offering advantages such as high-efficiency filtration and stable operation, have become core equipment for clean production. This article provides a multi-dimensional analysis for industry reference.
Environmental Control in Asphalt Production: Why Dust Collection Matters
During asphalt mixing plant operations, equipment like drying drums and hot aggregate elevators generate dust-laden exhaust containing aggregate dust and asphalt volatiles. Direct emissions contribute to PM2.5 and PM10 pollution, endangering public health and exposing companies to regulatory penalties.
As the “first line of defense” in environmental control for asphalt mixing plants, dust collection systems play a critical role in capturing production dust, reducing particulate concentrations in exhaust gases, and ensuring emissions compliance. Baghouse dust collectors, serving as the core of these systems, leverage their superior efficiency in filtering fine dust to become essential equipment for achieving “ultra-low emissions” and compliant production in asphalt mixing plants.

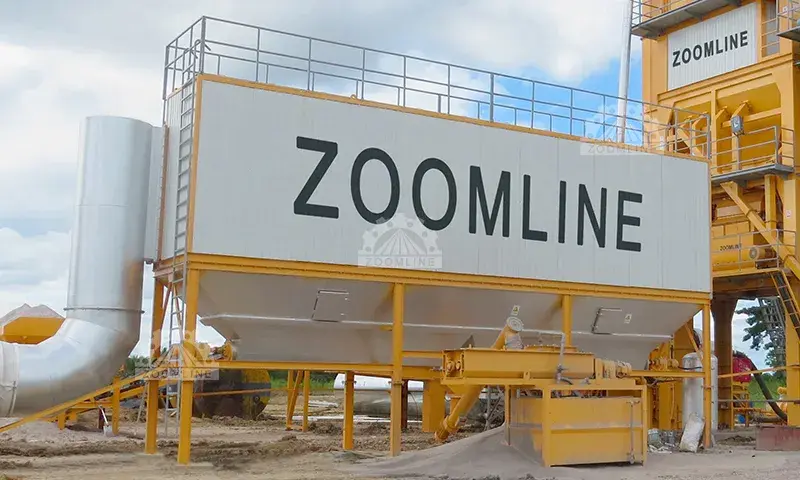

What is a Baghouse Dust Collector in an Asphalt Mixing Plant?
A baghouse dust collector, also known as a fabric filter dust collector, is an environmental protection device that captures particulate matter in dust-laden exhaust gases using porous filter bags. In asphalt mixing plants, it treats high-temperature exhaust gases emitted from drying drums and burners, physically separating dust from gases to achieve clean emissions.
Core Working Principle: Simple Yet Efficient “Filtration Logic”
The baghouse dust collector operates as follows: Dust-laden exhaust gas enters the collector under negative pressure. As it passes through the filter bags, dust particles are trapped on the bag surface—unable to pass through the fiber gaps—forming a “dust layer” that enhances filtration efficiency. Clean gas is discharged from the top of the filter bags meeting emission standards; the intercepted dust is collected and recycled by the cleaning and ash removal system.
Why Are Baghouse Dust Collectors the Preferred Choice for Asphalt Mixing Plants?
In dust control applications, baghouse dust collectors are the preferred equipment for asphalt mixing plants due to three core advantages:
Higher filtration efficiency: Filtration efficiency for fine dust (especially PM2.5-level particles) exceeds 99.9%, significantly outperforming wet scrubbers (approx. 85%-95%) and easily meeting stringent environmental standards;
High-Temperature Adaptability: Dust-laden exhaust from asphalt plants typically ranges between 120°C and 200°C. Premium baghouse dust collectors utilize heat-resistant filter media (e.g., aramid or fiberglass) to withstand these conditions, whereas wet scrubbers face vaporization issues at high temperatures and cartridge filters are prone to deformation.
Dust recyclability: Dust collected by baghouse dust collectors (e.g., RAP dust, recycled asphalt pavement dust) can be returned to mixers or storage silos for raw material recycling, minimizing waste. Wet dust collectors, however, mix dust with water to form “sludge” that is difficult to recover and requires additional treatment.
Core Components of Asphalt Mixing Plant Baghouse Dust Collectors: The Indispensable “Filtration System”
A complete asphalt mixing plant baghouse dust collector comprises multiple critical components, each performing specific functions to collectively ensure stable operation and efficient filtration. Below are its core components and their roles:
Main Housing Structure
Serving as the dust collector’s “skeleton,” the main housing is welded from steel structures, providing both sealing integrity and pressure resistance. Internally, it is partitioned into multiple filtration chambers based on the number of filter bags, facilitating grouped cleaning and maintenance. Externally, it undergoes thermal insulation treatment to prevent condensation from high-temperature exhaust gases, thereby avoiding moisture buildup and clogging of the filter bags.
Fabric Bags
As the core element of baghouse dust collectors, the material and performance of filter bags directly impact filtration efficiency and equipment lifespan. Common materials for asphalt mixing plants include:
Polyester needle-punched felt: Suitable for ambient temperature conditions, offering high cost-effectiveness.
Nomex®: Withstands temperatures of 180°C-200°C, ideal for medium-to-high temperature exhaust gases. PTFE-coated bags resist adhesion and withstand acids/alkalis, extending service life; fiberglass bags endure temperatures exceeding 250°C for extreme high-temperature applications. Most filter bags are cylindrical, secured at the top to the filter plate with a clamp and connected to the support cage at the bottom.
Support Cages (Cages Supporting Bags)
Also known as “filter bag cages,” these cylindrical structures are welded from low-carbon steel wire. They support the filter bags, prevent collapse under negative pressure, and facilitate dust removal. To prevent rust contamination, surfaces undergo galvanization or plastic coating for corrosion protection.
Dust Hopper & Screw Conveyor
The dust hopper, installed at the bottom of the dust collector housing, features a conical design to collect dust shed from the filter bag surfaces. To prevent dust accumulation and blockage, its inclination angle must exceed the 60° angle of repose for dust. A screw conveyor at the hopper base transports collected dust to storage silos or returns it to mixers for recycling.
Air-to-Cloth Ratio System
The air-to-cloth ratio is a core design parameter for baghouse dust collectors, defined as the volume of gas passing through the filter bags per unit time divided by the total filter bag area (m³/(m²·min)). For asphalt mixing plant baghouse dust collectors, the air-to-cloth ratio should be maintained between 1.0–1.5 m³/(m²·min). Excessively high ratios increase filter bag load, reduce efficiency, and shorten service life; conversely, excessively low ratios lead to increased equipment size and cost. Optimizing the air-to-cloth ratio through rational planning of filter bag quantity and fan airflow ensures efficient equipment operation.
Differential Pressure Monitoring System (DP Monitoring System)
The differential pressure monitoring system, comprising a differential pressure transmitter and control panel, continuously monitors filtration resistance across the filter bags. Under normal operating conditions, differential pressure values maintain between 500-1500 Pa. When differential pressure exceeds 2000 Pa, it indicates excessive dust accumulation on the filter bags, triggering an alarm and initiating the cleaning cycle. If the differential pressure falls below 300 Pa, it likely indicates filter bag damage, requiring immediate inspection and replacement.
Discharge System
The discharge system removes dust from the dust hopper via a rotary valve and screw conveyor. The rotary valve uses a motor-driven rotor to deliver dust in measured quantities while sealing the hopper. The screw conveyor is suitable for high-flow dust scenarios, offering higher conveying efficiency.
Workflow of Baghouse Dust Collectors in Asphalt Mixing Plants: From “Dusty Exhaust Gas” to “Clean Emissions”
The operational process of baghouse dust collectors in asphalt mixing plants comprises four stages: “Airflow Introduction → Dust Filtration → Cleaning Operation → Dust Recovery,” detailed as follows:
Airflow Introduction: “Directed Conveyance” of Dust-laden Exhaust
The asphalt mixing plant’s drying drum generates high-temperature (120-200°C) dust-laden exhaust. Under negative pressure from the induced draft fan, this exhaust is piped into the baghouse dust collector. To prevent large particles from clogging the filter bags, the exhaust first undergoes coarse dust pre-separation via a cyclone separator before undergoing fine filtration.
Dust Filtration: “Precision Interception” of Fine Particles
Under negative pressure, dust-laden exhaust gas permeates through the fibers of the filter bags. Fine dust particles ranging from 0.1 to 10μm are intercepted, forming an “initial filter layer.” As dust accumulates, this layer thickens progressively, becoming a new filtration medium that enhances filtration efficiency to over 99.9%. Finally, clean gas passes through the clean air chamber and is discharged by the induced draft fan, achieving an emission concentration ≤10mg/m³, meeting national ultra-low emission standards.
Cleaning Operation: Ensuring Continuous High Efficiency of Filter Bags
As filtration proceeds, the dust layer on the filter bag surface thickens, increasing filtration resistance and reducing equipment processing efficiency. At this point, the cleaning system automatically activates to remove the dust layer and restore filtration performance. Two common cleaning methods are used in baghouse dust collectors for asphalt mixing plants:
Pulse-Jet Cleaning: Compressed air at 0.5-0.7MPa is instantaneously injected into the filter bags, generating an airflow impact that causes the bags to vibrate and shake off dust. This method employs group-by-group cleaning, allowing uninterrupted equipment operation. Its high cleaning efficiency aligns with the continuous production demands of asphalt mixing plants, making it the mainstream cleaning approach.
Reverse-Air Cleaning: Utilizes reverse airflow to cause the filter bags to contract and vibrate, dislodging dust. This method features simple equipment structure and low maintenance costs. However, it requires pausing the filtration chamber operation and has relatively low cleaning efficiency, making it suitable for low-dust concentration conditions.
Dust Recovery: Turning Waste into Treasure, Reducing Costs
Dust and stone particles generated during cleaning are collected via bottom hoppers and transported to storage silos by screw conveyors or rotary valves. Recycled into asphalt mixing, this reduces aggregate consumption by 1%-3% while enhancing mixture rutting resistance, achieving both environmental and economic benefits.
Common Types of Baghouse Dust Collectors for Asphalt Mixing Plants: Select Based on Requirements and Match Operating Conditions
Based on cleaning methods and installation configurations, baghouse dust collectors commonly used in asphalt mixing plants can be categorized as follows:
Pulse Jet Baghouse
This is currently the most widely adopted type in asphalt mixing plants, accounting for over 80% of the market share. It stands out due to three core advantages: efficient cleaning, compact size, and continuous operation. Pulse jet technology rapidly dislodges dust from filter bags, while increasing the air-to-cloth ratio reduces equipment volume. Grouped alternating cleaning enables non-stop production and can handle high dust concentrations up to 500g/m³. Additionally, filter bag replacement is convenient, maintenance costs are low, and it is highly suited for continuous production requirements.
Reverse Air Baghouse
The reverse air baghouse features a simple structure comprising a filter chamber, reverse air blower, and diverter valve. It utilizes the reverse air blower to inject counter-current airflow into the filter chamber, causing the filter bags to contract and vibrate for dust removal. This equipment offers advantages of low investment and low energy consumption (no compressed air required), but its cleaning efficiency is suboptimal. It is suitable for dust concentrations <100g/m³ and low-viscosity conditions, commonly found in small asphalt mixing plants and auxiliary dust collection systems.
Modular Baghouse vs. Integrated Baghouse
Modular Baghouse: Composed of independent filtration modules containing filter bags, cleaning mechanisms, and dust hoppers. Modules can be added or removed as needed—expanding capacity from 100t/h to 200t/h by adding units. Easy installation and maintenance make it suitable for fluctuating production or phased construction projects.
Integrated Baghouse Dust Collector: Components are integrated into a single housing, offering compact structure, minimal footprint, and rapid installation. Suitable for mixing plants with stable capacity and limited space, but requires complete unit replacement for capacity expansion, resulting in lower flexibility.
Core Advantages of Using Baghouse Dust Collectors in Asphalt Mixing Plants: More Than Just “Environmental Protection”
Baghouse dust collectors have become standard equipment in asphalt mixing plants not only for their outstanding environmental performance but also for delivering multifaceted practical value to enterprises:
Efficiently Control Particulate Emissions to Meet Environmental Compliance
Baghouse dust collectors achieve over 99.9% efficiency in filtering fine dust, strictly adhering to GB 28662-2012 standards (particulate emissions ≤20mg/m³) and even enabling ultra-low emissions (≤10mg/m³). This effectively mitigates environmental penalty risks and ensures stable production operations.
Improve workplace air quality and protect employee health
Excessive dust concentrations in asphalt mixing plant operating areas can cause respiratory diseases and skin allergies among workers. Baghouse dust collectors efficiently capture production dust, significantly reducing dust levels in workshops and surrounding areas. This safeguards employee health and safety while lowering workplace injury medical costs for enterprises.
Dust recycling reduces raw material costs
RAP dust collected by baghouse dust collectors contains aggregate and asphalt, which can be reused in asphalt mixture production. Calculations show that proper recycling can reduce aggregate consumption by 1%-3% at plants producing 100,000 tons of mixture annually, saving 100,000-300,000 yuan in aggregate costs per year. This achieves dual benefits of resource utilization and economic efficiency.
Ensuring stable asphalt mixture quality
Uncollected dust mixed into asphalt mixtures disrupts gradation, compromising strength and stability. Baghouse dust collectors precisely control dust recovery and blending, ensuring mixture gradation compliance. This enhances asphalt pavement construction quality and reduces risks of rutting, cracking, and other pavement defects.
Conclusion: Selecting the Right Baghouse Dust Collector to Launch the “Clean Production” Journey for Asphalt Mixing Plants
Summary of the Core Value of Baghouse Dust Collectors
In the production process of asphalt mixing plants, baghouse dust collectors are not merely “environmental protection equipment,” but also “cost-saving and efficiency-enhancing equipment” and “compliance assurance equipment.”
Environmental Protection: Efficiently filters fine dust to achieve ultra-low emissions, helping enterprises meet stringent domestic and international environmental standards while safeguarding air quality. Economic Benefits: Recovers raw materials like RAP dust, reduces aggregate consumption, and saves tens of thousands annually; extends asphalt mixture lifespan, lowering road maintenance costs. Operational Advantages: Stable filtration ensures continuous equipment operation, minimizing downtime losses; intelligent monitoring systems simplify management and reduce operational complexity.
How to Select the Right Baghouse Dust Collector?
When selecting a baghouse dust collector, enterprises should consider their specific operating conditions (e.g., production capacity, exhaust gas temperature, dust properties) and requirements (e.g., environmental standards, cost budget), focusing on the following four dimensions:
Determine airflow capacity based on production capacity: Estimate using “mixing plant capacity (t/h) × 500-800 m³/t”. For example, a 200t/h plant requires a 100,000–160,000 m³/h dust collector to avoid under- or oversizing.
Select filter media based on exhaust gas temperature: ≤130°C – polyester needle-punched felt filter bags; 130–200°C – aramid filter bags; 200–280°C or corrosive dust – PTFE-coated or fiberglass filter bags.
Equipped with smart control systems enabling differential pressure monitoring, automatic cleaning, fault alarms, and remote monitoring to reduce costs and enhance efficiency.
Future Trends: Higher Efficiency, Greater Intelligence, Enhanced Energy Savings
With advancements in environmental technology, baghouse dust collectors for asphalt mixing plants will evolve in three key directions:
High Efficiency: Optimized filter media (e.g., nano-coated materials) and structural design (multi-chamber group cleaning) to enhance filtration efficiency, meeting stringent emission standards below 5mg/m³.
Intelligence: Leveraging IoT and big data technologies to enable predictive maintenance. Analyzing data to forecast filter bag lifespan and prevent unexpected failures.
