High-Efficiency Mixing, Empowering Infrastructure: JS1000 Twin Shaft Concrete Mixer Exported to Russia
A New Breakthrough in the Russian Market: Why Choose the JS1000 Twin Shaft Forced-Action Concrete Mixer?
In the export of international construction machinery and road-building equipment, Russia and CIS countries have stringent standards regarding equipment’s cold resistance, high-intensity continuous operation capabilities, and impact resistance. The JS1000 twin shaft concrete mixer, the subject of this transaction, serves as a common core unit in medium- to large-scale concrete batching plants. With a batch capacity of 1 cubic meter (1,000 L), it features a compact design, vigorous mixing, and ease of operation and maintenance—making it well-suited for Russia’s harsh cold and high-load operating conditions.
The concrete mixer equipment included in this transaction features several key performance upgrades based on traditional technology:
Three-dimensional vigorous mixing for extremely high homogeneity
Utilizing a unique dual-horizontal-shaft, multi-arm spiral configuration, it delivers powerful shearing and tumbling action for dry-hard concrete, plastic concrete, and various types of lightweight aggregates, achieving uniform mixing in a very short time with extremely high homogeneity.
Multi-layer shaft-end seals eliminate concrete leakage

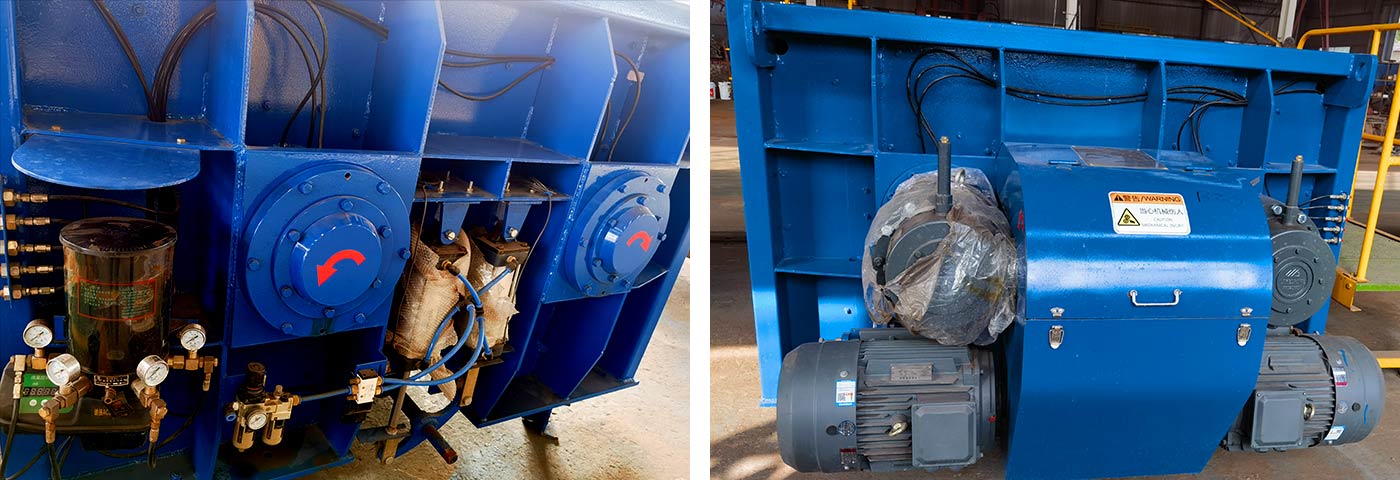

Equipped with an upgraded multi-layer shaft-end sealing structure, combined with an automatic lubrication pump, it creates multiple protective barriers to eliminate the risk of slurry leakage, significantly reducing maintenance costs in extremely cold and high-dust environments while extending bearing service life.

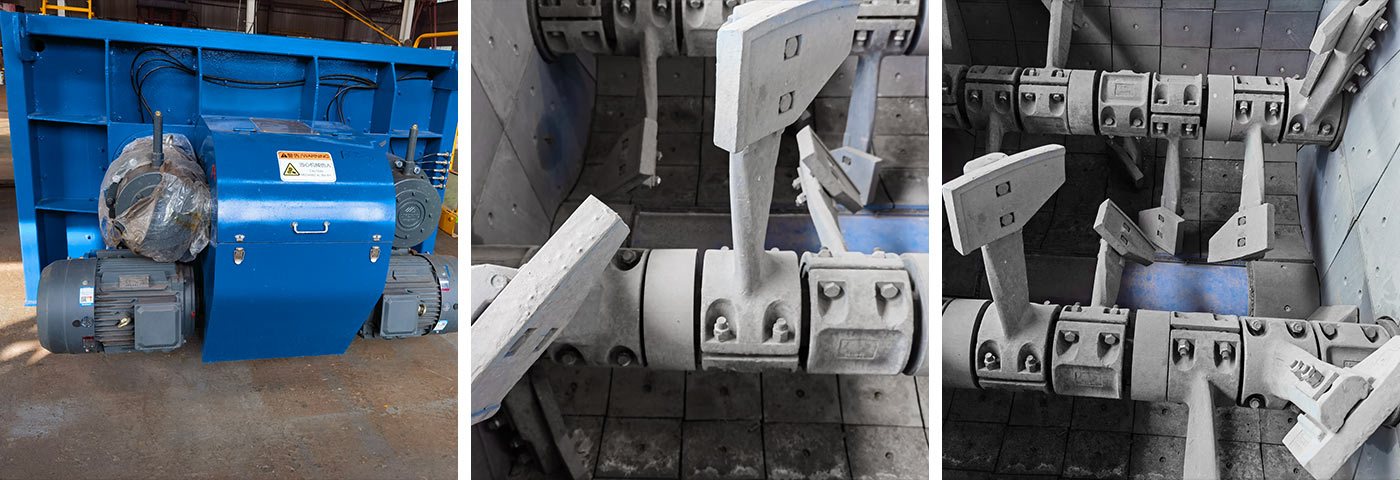

High-wear-resistant liners and blades
High-chromium wear-resistant alloy cast iron liners and mixing blades are used, offering impact resistance and wear resistance, which significantly extend the replacement cycle of wear parts and ensure high-intensity continuous operation.
Pneumatic Discharge for Flexible Material Control
Equipped with a smooth and efficient discharge gate control system that supports multi-stage gate opening control, preventing splashing and increasing discharge speed.
JS1000 Twin Horizontal Shaft Forced-Action Concrete Mixer: Key Technical Specifications
To facilitate technical evaluation by overseas engineering contractors and purchasers, the following is a detailed table of the standard technical specifications for the JS1000 forced-action concrete mixer:
| Parameter | Technical Specifications | Remarks |
| Feed Capacity | 1500 L | Large-capacity feed hopper |
| Discharge Capacity | 1,000 L (1 m³) | Standard rated discharge volume per batch |
| Production Rate | ≥ 50 m³/h | Varies depending on mix ratio and cycle time |
| Maximum Aggregate Size (Crushed Stone/Gravel) | 60 mm / 80 mm | Meets diverse engineering mix ratio requirements |
| Mixing Motor Power | 2 × 18.5 kW | Powerful dual-motor drive |
| Electrical Standard | 380 V / 50 Hz | Complies with Russian industrial power standards |
Typical Applications: How Does the JS1000 Concrete Mixer Empower Global Infrastructure?
As the “gold standard” in the field of industrial-grade high-strength mixing, the JS1000 twin-shaft mixer is not only a standalone, high-efficiency unit but is also widely used in complete building materials production lines:
Compatible with HZS50/HZS60 concrete batching plants
As the core mixing unit, it is combined with PLD series batchers, cement silos, and computerized weighing systems to form medium-sized commercial concrete batching plants and construction-site batching plants.
Highways, Bridges, and Water Conservancy and Hydropower Projects
It meets the high-standard mixing requirements for high-strength, dry-hard concrete, ensuring the overall quality and density of bridge piers, highway pavements, and large-scale hydraulic structures.
Precast Concrete (PC) Components and Cement Products Plants
Meets the strict quality requirements for concrete slump and uniformity in production lines for precast components such as pipe piles, large precast wall panels, and cement culvert pipes.
Authentic Feedback from a Russian Customer:
“The mechanical structure of this JS1000 concrete mixer is extremely robust, and its operating noise and vibration are significantly lower than those of the older models we used previously. It discharges quickly, and the mixed concrete is very uniform, meeting the stringent construction standards for high-strength concrete projects in Russia.”
Partnership for Mutual Success: Continuously Providing High-Quality Concrete Machinery and After-Sales Support
The successful export of the JS1000 twin-shaft concrete mixer to Russia once again demonstrates our company’s manufacturing capabilities and international recognition in the fields of road construction machinery and concrete mixing equipment.
Comprehensive Technical Support: We provide one-stop services ranging from equipment selection and foundation design to overseas installation guidance and operator training.
Adequate Supply of Spare Parts: We maintain year-round global inventory of genuine wear-resistant liners, blades, seals, and other wear-prone parts to ensure overseas projects run smoothly without any concerns.
For more detailed technical specifications, quotations, or updates on international trade partnerships regarding the JS1000 twin-shaft forced-action concrete mixer and the HZS50/60 concrete batching plant, please visit our official website: www.zoomline.com.cn. We look forward to collaborating with more infrastructure projects around the world!
