ZOOMLINE MFJ40 Coal Pulverizer Cuts Infrastructure Costs in Venezuela Road Project
ZOOMLINE Signs MFJ40 Pulverized Coal Burner Order with Core Venezuelan Contractor
In July 2026, ZOOMLINE officially completed the procurement signing of the MFJ40 pulverized coal machine with a large local road engineering contractor from Venezuela. The purchasing client has been deeply engaged in municipal road renovation and intercity highway reconstruction and expansion projects across Venezuela for more than a decade, serving as a core construction service provider in the local infrastructure sector with construction rights for multiple national-level highway upgrading projects.
Currently, Venezuela is accelerating the nationwide road network upgrade initiative, with a concentrated rollout of numerous renovation projects for aging asphalt pavements and new rural arterial roads. Local construction enterprises are in urgent need of stable, low-cost supporting heating equipment for asphalt mixing plants adaptable to indigenous raw coal materials. Driven by persistently high fuel prices, local engineering parties have widely shifted to pulverized coal heating solutions. The client purchases the MFJ40 pulverized coal machine this time to support pulverized coal preparation and injection operations for multiple asphalt mixing plants under its portfolio, ensuring continuous and stable construction during pavement paving procedures and cutting overall construction costs from the fuel end. The signed model, the standard MFJ40 pulverized coal machine, fully matches the mixing plant output and site layout requirements of the client’s on-site projects.
Four Major Construction Pain Points in Venezuelan Road Engineering
Road engineering construction across Venezuela is plagued by four prominent pain points that constantly hinder project progress:
Capacity Deficit
Outdated pulverizing equipment matched with local small and medium-sized asphalt mixing plants delivers an hourly pulverized coal output below 300kg, which fails to sustain continuous daily paving operations; intermittent shortages of pulverized coal during peak construction periods directly delay project schedules.
Site Constraints
Local construction yards are mostly built on temporary suburban vacant land with narrow usable operation zones. Traditional large-scale pulverized coal equipment occupies extensive space and poses transfer difficulties, making it incompatible with compact yard layouts.
Raw Coal Variations
Raw coal sourced locally features inconsistent lump sizes. Most outdated equipment can only process fine coal within 15mm, and oversized incoming coal easily triggers material blockages and grinding cavity jams.
Tighter Environmental Controls
Venezuela has updated atmospheric pollutant emission standards in recent years, imposing stricter supervision over dust and waste gas discharges at construction yards. Traditional open-type pulverized coal equipment suffers severe outward dust leakage, which readily leads to work stoppages and rectification orders issued by environmental authorities.
These multi-faceted working condition challenges repeatedly stalled the client’s equipment selection process in the early stage.

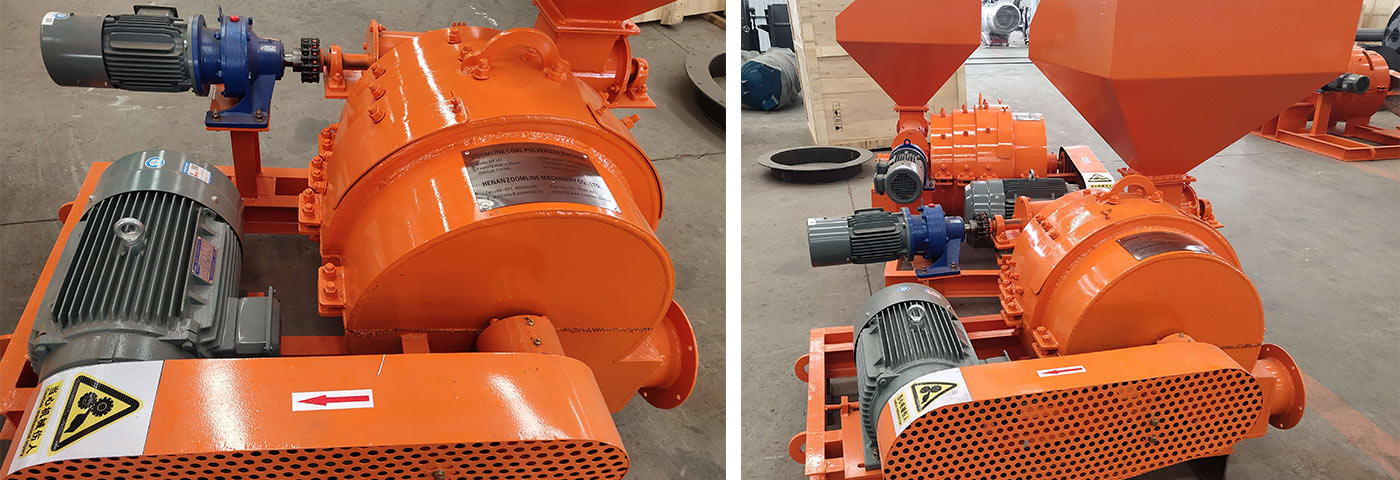

Core Technical Parameters and Performance Advantages of MFJ40
The contracted MFJ40 pulverized coal machine addresses all engineering pain points of the Venezuelan client through robust technical performance, with differentiated competitive advantages embodied in core equipment parameters and technical highlights:
| Core Dimension | Technical Parameters & Specifications | Working Condition Advantage |
| Output Capacity | Standard output range 370–560kg/h | Perfectly meets pulverized coal consumption demands of small and medium asphalt mixing plants, completely resolving supply shortages |
| Feed Tolerance | Maximum feed particle size up to 25mm | Eliminates multi-stage pre-crushing; coarse local raw coal can be fed directly, greatly simplifying front-end handling |
| Discharge & Combustion | Controllable discharge fineness R90 ≤ 20% | Ensures uniform pulverized coal particles for complete combustion, significantly boosting thermal efficiency and lowering emissions |
| Power & Drive | 22kW main motor (1470rpm), with 1.5kW dedicated VFD drive | Variable speed regulation of 160–250rpm, screw conveyor at 8.3–80rpm to flexibly adjust coal delivery based on plant load |
| Wear Resistance | Main spindle speed at 1700rpm, wear-resistant alloy cavity | Adapts to long-term continuous operation with high-hardness raw coal, extending service life of key components |
| Hopper & Injection | Standard 0.2m³ integrated hopper, injection distance 7–12m | Compact feeding, fits drying drums of various specifications with stable long-distance injection and uniform combustion without slag |
| Structure & Layout | Small footprint, highly compact structure | Fits narrow temporary construction yards in Venezuela, enabling easy disassembly, assembly, and relocation |
Customization Capabilities Win Client Trust
The client conducted horizontal comparisons of similar pulverized coal equipment from multiple manufacturers worldwide, screening products layer by layer across five key dimensions: production capacity, fineness control, energy consumption, site adaptability, and after-sales response, before finalizing the MFJ40 coal pulverizer machine manufactured by ZOOMLINE. The client primarily recognizes our robust capacity to deliver customized adaptive services tailored to project-specific requirements.
Our technical team completed working condition simulation calculations in advance targeting Venezuela’s high-temperature and high-humidity climate, indigenous raw coal characteristics, and environmental emission requirements, carrying out targeted optimization and upgrades for the electric control system, dust sealing assemblies, and wear-resistant hammer fragments prior to factory delivery. Meanwhile, the equipment supports flexible adjustment of multi-gear production capacity and injection distances. It can match the client’s existing small and medium-sized mixing plants, and also serve newly added large mixing equipment in the future, enabling compatibility with multiple engineering scenarios with a single unit.
Unlike mass-produced standardized equipment, ZOOMLINE can adjust equipment parameters, supporting pipelines, and injection assemblies based on raw coal characteristics, site conditions, and environmental laws of different countries, boasting independent customized R&D capabilities that cover diversified infrastructure markets across Latin America, Africa, and Southeast Asia. This core strength is the key reason why the client abandoned competing products and opted for long-term cooperation with us.
Closed-Loop Delivery and Overseas Service System Ensure Project Success
A closed-loop full-process delivery service system is implemented to guarantee smooth equipment arrival and commissioning at the client’s project site in Venezuela:
Manufacturing & Quality Inspection

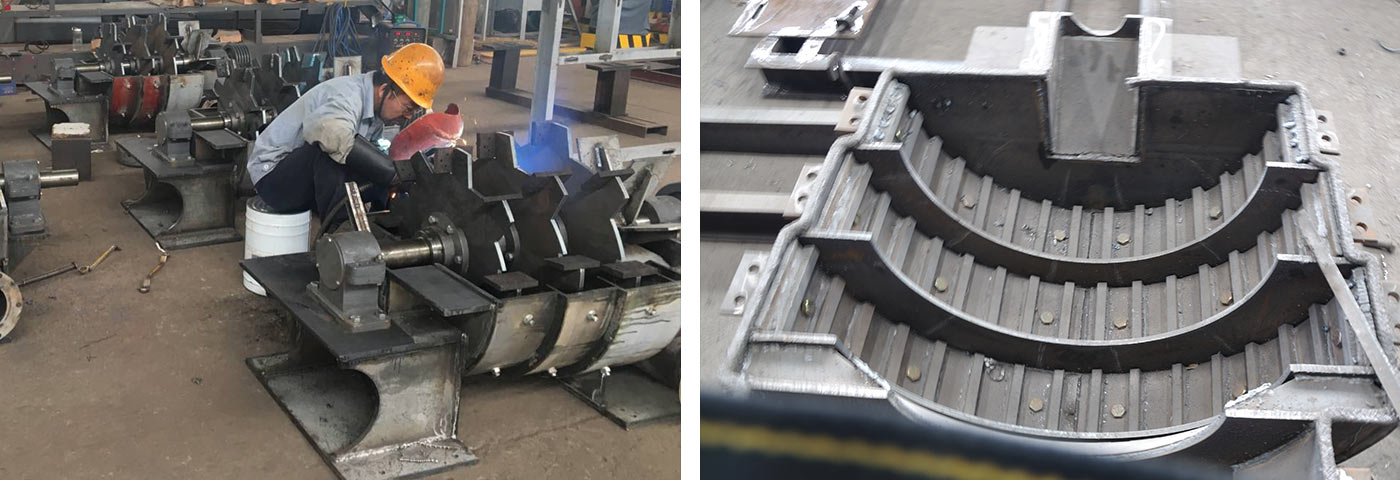

A dedicated production station has been allocated for this order, with manufacturing carried out in strict accordance with foreign trade equipment standards. All electrical components adopt CHNT branded electric parts, integrated into an all-in-one touchscreen control cabinet equipped with full operation buttons, comprehensive meter displays, and multi-layer protection functions including overload, overheating, and short-circuit prevention. No less than three rounds of full-machine no-load and loaded linkage quality inspections are conducted before delivery, with complete test reports provided.
Turnkey Complete Delivery
A full set of bitumen pipelines and dedicated bitumen sprayers are manufactured alongside the main machine for complete delivery without additional auxiliary component procurement by the client.
Logistics & Transportation
The overall production cycle is well-controlled. Upon completion of quality inspections, all equipment is packed with moisture-proof and rust-proof export packaging before being shipped via dedicated sea freight lines from domestic professional ports to Venezuelan ports, with real-time logistics tracking information shared with the client throughout transit.
Localized Overseas Support
After the equipment arrives at local ports, our overseas technical service specialists follow up synchronously to provide on-site installation guidance, alongside multi-language operation manuals. Exclusive after-sales files will be established post-delivery, with spare parts stocked overseas to deliver rapid responses to equipment maintenance demands, realizing one-stop full-lifecycle services spanning production, shipment, and operation maintenance.
Deepening Latin American Presence: ZOOMLINE Empowers Global Infrastructure
The smooth signing of the MFJ40 pulverized coal machine order with Venezuela carries profound cooperative value for both buyers and sellers.For the Venezuelan Client, the deployment of high-performance customized pulverized coal equipment effectively cuts fuel costs for road construction, avoids work stoppages triggered by environmental violations, and improves construction efficiency for national road network upgrading projects, facilitating high-quality advancement of local infrastructure works.For ZOOMLINE, this cooperation further consolidates our market layout in Latin America and opens up the Venezuelan market for supporting road machinery equipment via mature integrated pulverized coal preparation and injection solutions.
Boasting stable production capacity, outstanding environmental performance, and flexible customization capabilities, the MFJ40 coal pulverizer machine has accumulated abundant on-site application cases across multiple South American countries’ asphalt engineering sectors, earning continuously rising regional market recognition. Supported by our comprehensive system of customized R&D, complete set supply, and localized overseas services, ZOOMLINE will continue to export road construction supporting machinery adaptable to local working conditions across global regions. We empower worldwide infrastructure development with reliable products and full-lifecycle services, continuously elevate the industrial influence of the independent ZOOMLINE brand in the Latin American construction machinery track, and build long-term stable trade cooperation bridges for infrastructure equipment between China and foreign nations.
