When you walk on a smooth road or ride on a highway, have you ever wondered how these smooth and durable pavements are created? The answer lies in the asphalt plant. What is an asphalt plant? What role does it play in modern construction? This article will take you in-depth understanding.
Definition and Overview of Asphalt Plants

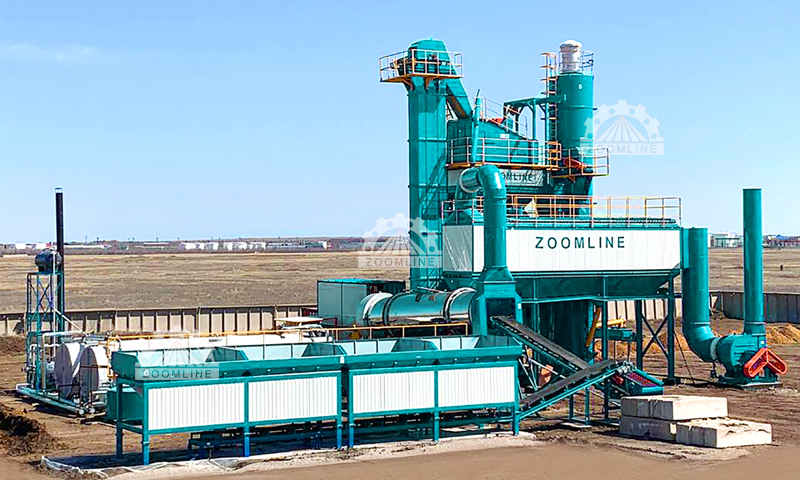

Asphalt plant, also known as an asphalt mixing plant or hot mixing plant, is an industrial facility dedicated to the production of asphalt mixtures. Its main job, is to mix aggregates such as sand, gravel, crushed stone, etc., with asphalt binding material to produce different grades of asphalt mixture.
Asphalt mixing plants are an integral and important part of the construction industry. From city roads, highways, to parking lots, squares and other paved road construction and maintenance, are inseparable from the asphalt mixing plant production of asphalt mixture. It is because of it, in order to realize the aggregate and asphalt binding material efficient, accurate mixing, to meet the specific needs of various projects.
Working Principles of Asphalt Plants

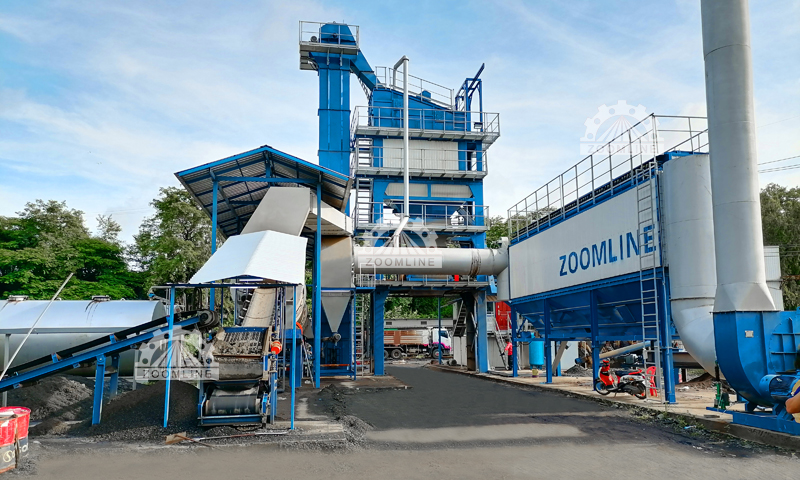

The working process of an asphalt mixing plant follows a strict set of procedures, starting with the addition of a specified amount of cold aggregate and ending with the unloading of the final mixture into the truck. Here is a step-by-step explanation:
Step 1: Feeding Cold Aggregates
Asphalt plants have separate cold aggregate bins for different aggregates. The aggregates in each bin have specific particle size requirements to ensure a uniform mix.
Step 2: Conveyance to the Drying Drum
Below the cold aggregate bins there is a conveyor belt which transports the aggregate to an inclined conveyor belt which feeds it into the drying drum. Inside the drying drum, the aggregate is heated and dried to remove moisture and prepare it for subsequent mixing.
Step 3: Entering the Screening System
After being processed in the drying drum, the hot aggregate is transported via an elevator to the screening system. The purpose of this stage is to screen out the aggregates that meet the criteria and to ensure the quality of the mix.
Step 4: Separation by Size
The hot aggregates are screened by a multi-deck vibrating screen to separate them according to size and send them to different silos for storage.
Step 5: Storage in Separate Bins
Separated aggregates are stored in separate bins below the vibrating screen, awaiting further processing.
Step 6: Entering the Mixer
According to the weight set by the control panel, the aggregate in the silo is released into the mixer.
Step 7: Adding Additives
At the same time, asphalt and other mineral fillers are added to the mixer at the specified weights.
Step 8: Unloading to Complete the Production
After about 20 minutes of mixing in the mixer, the finished asphalt mixture is unloaded into trucks or silos, waiting to be transported to the construction site for use.
Applications of Asphalt Plant
The mixture produced by the asphalt mixing plant has a wide range of uses, mainly used in the following areas:
Road Construction
The construction of roads, highways and other transportation infrastructure is the most important application scenario for asphalt mix. Its good performance provides smooth driving surface for vehicles and guarantees smooth traffic.
Road Maintenance
In the existing road cracks, potholes, asphalt mixtures can be used to repair and maintenance, to restore the road surface leveling, to extend the service life of the road.
Roofing
In the production of roofing materials, asphalt mixtures also play an important role, commonly used in the production of shingles, waterproofing membranes, etc., to provide waterproof protection for the building.
Sports Ground Construction
The paving of sports venues like tennis courts, running tracks, etc. will also use the mix produced by asphalt mixing plants to create a surface that meets the needs of sports.
What Are The Components of Asphalt Mixing Plant?
An asphalt mixing plant consists of several key components that work in tandem, and the following is a description of each component:
Cold Aggregate Supply System
Responsible for conveying aggregate (e.g., stone, sand, etc.) to the mixing line. The system usually consists of conveyor belts, silos, hoppers and other equipment to ensure that the aggregate can be accurately proportioned for subsequent production.
Drying Drum
Also called drying screen, it is used to dry the aggregate. It is heated to remove the moisture from the aggregate to ensure the quality of the mix.

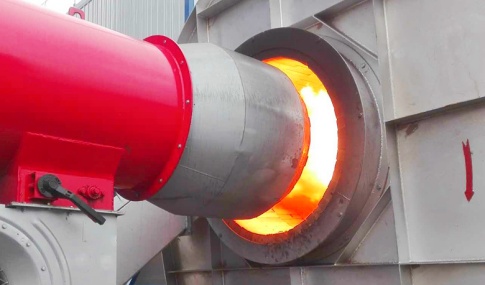

Burner
Provides the required heat energy to the drying drum. Usually oil, coal, natural gas, etc. are used as fuel, and the heat generated by combustion heats the aggregate in the drum.
Cyclone Dust Removal System
In the drying process, dust and exhaust gas will be generated, the cyclone dust removal system separates the dust and exhaust gas by rotating and separating, purifies the emission gas and plays an environmental protection role.
Hot Aggregate Elevator
It conveys the dried hot aggregate to the screening system or weighing and mixing system, which generally consists of lifting hopper and conveyor belt and other equipment.
Vibrating Screen
Screen the hot aggregate to remove impurities and unqualified particles to ensure the quality of aggregate meets the standard.
Filler Supply System
Responsible for conveying fillers (e.g. mineral powder, slag, etc.) to the production line to adjust the formula and performance of the mix.
Weighing and Mixing System
Weighing, mixing and blending of asphalt, aggregate and other additives. The system consists of weighing equipment, mixers, conveyor belts, etc. to ensure that the mixture meets the specified formulation and quality requirements.
Finished Asphalt Storage Equipment
Used for storing finished asphalt mixture, common silo, hopper, etc., to ensure the quality of finished asphalt and storage safety.
Asphalt Supply System
Convey asphalt to the weighing and mixing system, consisting of asphalt storage tanks, conveying pipelines, oil pumps and other equipment, to ensure that the asphalt can be accurately conveyed and used.
Types of Asphalt Plant
There are mainly the following types of asphalt mixing plant, each with its own characteristics and applicable scenarios:

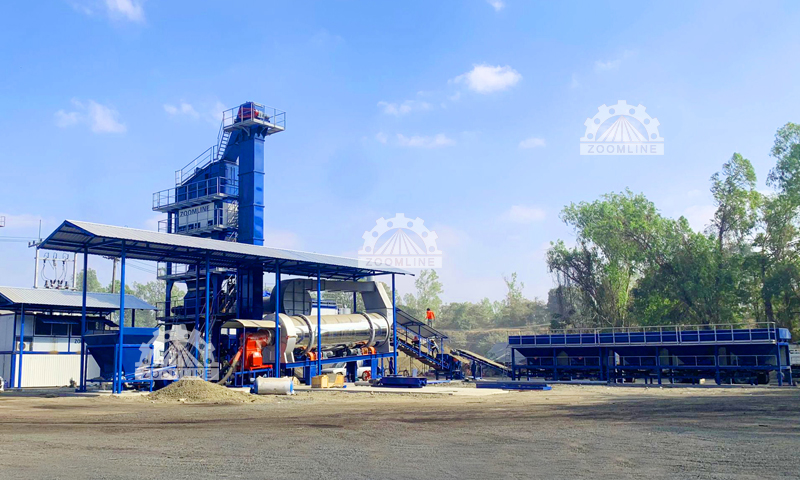

Batch Mixing Plant
Batch mixing asphalt plant produces asphalt mixtures in batches and is suitable for small and medium scale projects. It can flexibly adjust the mix design to produce different types of asphalt mixtures.
Continuous Mixing Plant
Continuous mix asphalt plant, also called drum mixing plant, can produce asphalt mixture continuously. Aggregate and asphalt binder are continuously fed into the drum for mixing and heating, which is suitable for large-scale and high-volume projects.
Counterflow Mixing Plants
Counterflow mix asphalt plant is a kind of drum mixing plant, the aggregate and hot gas flow in the opposite direction, which can better control the heating and mixing process, realize efficient heat transfer, and improve the quality of asphalt mixture.
Mobile Mixing Plant
Mobile asphalt mixing plant is easy to be transported and quickly installed, which is suitable for projects requiring frequent site transfers and brings great flexibility to the construction.
Stationary Mixing Plant
Stationary asphalt mixing plant is a permanent facility, suitable for long-term, high-volume asphalt production, commonly used in large-scale, long duration of the project.
Stationary vs. Mobile Asphalt Plants
Selection of stationary or mobile asphalt mixing plant, need to consider the project needs, duration, location and other factors:
Advantages of Stationary Asphalt Mixing Plant
Stationary mixing plant is suitable for large-scale long-term projects with high production capacity, which can meet the large demand for asphalt mixture in projects such as high-standard urban road construction. However, its installation requires more preparatory work, such as site leveling and pouring concrete foundation.
Advantages of Mobile Asphalt Mixing Plant
The most important feature of mobile mixing plant is that it is flexible and convenient, suitable for small or short-term projects, and can be quickly transferred between different sites. And the installation is relatively simple, which is very friendly for projects with tight schedule or temporary needs.
When choosing, to comprehensively assess the project size, duration, construction location and budget and other factors, a reasonable choice will directly affect the project’s construction efficiency and cost.
What Are The Advantages of Asphalt Plant?
Asphalt mixing plant as a professional equipment for asphalt mixture production, has many significant advantages:
High Production Efficiency
Advanced production equipment and automation control system, so that the asphalt mixing plant to realize efficient production. Compared with manual mixing, it can operate continuously, saving labor and time costs significantly.
Stable Product Quality
Precise batching and control system ensures the stability of asphalt mix production quality. Precise raw material proportioning and efficient mixing make the mixture uniform and enhance the durability and service life of the road surface.
Strong Adaptability
The production can be customized according to the needs of different projects, whether it is highways, city roads, airport runways, country roads, etc., to meet the production requirements, and provide reliable support for all kinds of projects.
High Resource Utilization Rate
Through precise batching and recycling technology, the asphalt mixing plant can make full use of raw materials, reduce waste, improve resource utilization efficiency, and effectively reduce production costs.
Environmental Protection and Energy Saving
Adopting advanced technology, it reduces the emission of waste gas and dust and realizes clean production. At the same time, efficient use of energy, reduce the impact on the environment, in line with the requirements of sustainable development.
Short Construction Period
The asphalt mixture produced by the asphalt mixing plant hardens quickly, which can significantly shorten the construction cycle. Asphalt pavement construction usually takes only a few days to put into use, greatly improving construction efficiency.
Long Service Life
High-quality, stable asphalt mixture, so that the pavement durability, anti-aging, reduce the frequency and cost of maintenance, to extend the service life of the pavement.
How to Choose the Right Asphalt Mixing Plant
Selecting a suitable asphalt mixing plant requires comprehensive consideration of the following factors:
Project Type and Production Requirements
The type of project determines the products to be produced, the output and quality standards, and even affects the location of the mixing plant. When choosing, project planning and long-term production demand should be fully considered.
Site Factors
If the project lasts for a long time, a stationary mixing plant can reduce transportation costs; if the project requires frequent site changes, a mobile mixing plant is more suitable. However, the initial cost of a mobile mixing plant is relatively high due to its dismantling and moving characteristics.
Batching Plant Size
The scale of the mixing plant should be determined according to the required output and product mix of the project to ensure that it meets the production demand while realizing rational allocation of resources.
Customization Capability
It is also important to consider whether the mixing plant has customization capabilities. A mixing plant that can flexibly adjust its product mix as project needs change will help realize a better return on investment.
Conclusion
Through the introduction of this article, I believe you have a comprehensive understanding of “What is Asphalt Plant”. From the definition, working principle to application areas, from components, type characteristics to advantages and selection methods, asphalt mixing plant plays an irreplaceable role in modern construction. In the actual project, choosing the right asphalt plant according to your own needs will provide a strong guarantee for the smooth progress and high quality completion of the project.
