What is an asphalt mixing plant?
As a core hub equipment in modern road construction, the asphalt mixing plant plays a role akin to the “concrete heart” of engineering projects, bearing the critical responsibility of supplying high-quality asphalt mixtures for various road construction projects. In actual production processes, the mixing plant uses three main categories of raw materials: aggregates, asphalt binder, and filler. Aggregates include high-strength crushed stones such as limestone and basalt, as well as fine aggregates like river sand and manufactured sand of various particle sizes; asphalt binder includes traditional materials such as petroleum asphalt and coal tar asphalt, or modified asphalt with special properties; filler primarily consists of mineral powder, used to enhance the density of the mixture.
The entire production process relies on the precise collaboration of four core systems: the thermal system uses a drying drum to heat moist aggregates to an ideal temperature of 160-180°C while removing moisture; the metering system employs dynamic weighing technology to ensure that the ratio of raw materials is controlled within ±0.5%; the mixing system is equipped with a twin-shaft forced mixer, which achieves three-dimensional mixing of materials through high-speed rotating blades; The environmental protection system integrates baghouse dust collection and asphalt fume adsorption devices to effectively reduce dust and harmful gas emissions. The efficient coordination of these systems not only determines critical indicators such as the gradation uniformity and asphalt coating rate of the asphalt mixture but also directly impacts the compaction, skid resistance, and service life of the pavement after laying, making them decisive factors in ensuring the quality of road engineering projects.
Classification of Asphalt Mixing Plants
Classification by Production Process

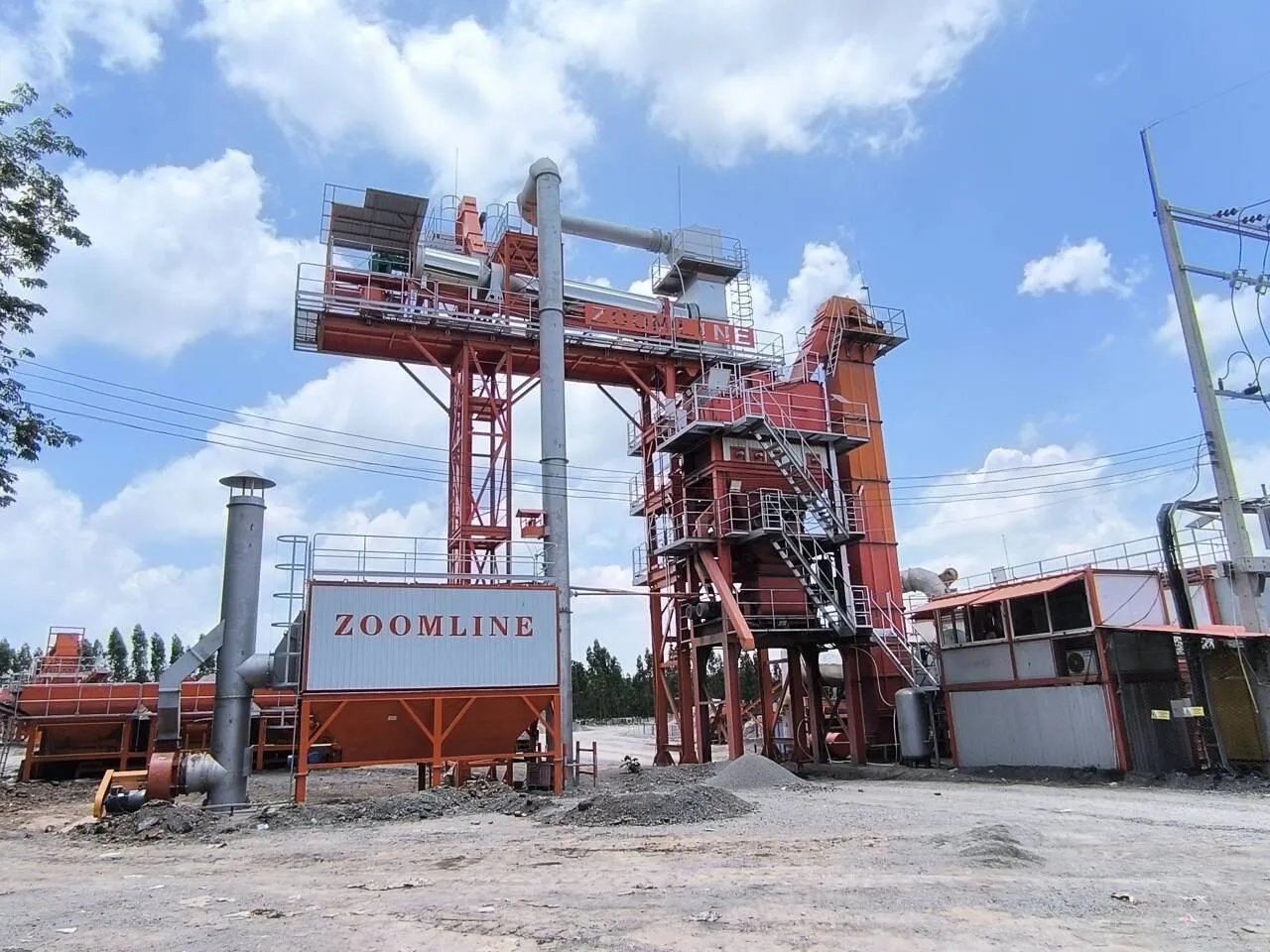

Batch Mix Asphalt Plant
Batch-type mixing plants operate on a batch-cycle production model, with each production cycle lasting approximately 40–50 seconds. Core equipment includes a twin-shaft forced-action mixer, which uses counter-rotating mixing blades to achieve three-dimensional material movement, ensuring asphalt coating uniformity with an error margin of ≤±0.3%. The counterflow drying and heating system utilizes heat exchange principles, causing aggregates and high-temperature flue gas generated by combustion to move in opposite directions, thereby improving thermal efficiency to over 85%. The metering system employs dynamic weighing technology to independently and precisely measure aggregates, asphalt, and mineral powder, achieving a mixing ratio accuracy of ±0.5%, making it particularly suitable for the production of special asphalt mixtures such as SMA and OGFC for high-grade highways.
Drum Mix Asphalt Plant
Continuous mixing plants are centered around drum-type mixers and employ either co-current or counter-current heating processes. New equipment typically features a triple heat transfer system: convective heat exchange between aggregates and high-temperature flue gases via material-lifting plates on the drum inner wall; conductive heat exchange via the drum’s high-thermal-conductivity alloy steel walls; and enhanced heating efficiency through flame radiation from the burner. Some high-end models incorporate intelligent combustion control systems that automatically adjust fuel supply based on aggregate moisture content, reducing energy consumption by 18% compared to traditional models. In the dual-drum design, the outer drum preheats aggregates to 120–140°C, while the inner drum completes asphalt coating and deep mixing, achieving a production capacity of 240 tons per hour.
Classification by mobility

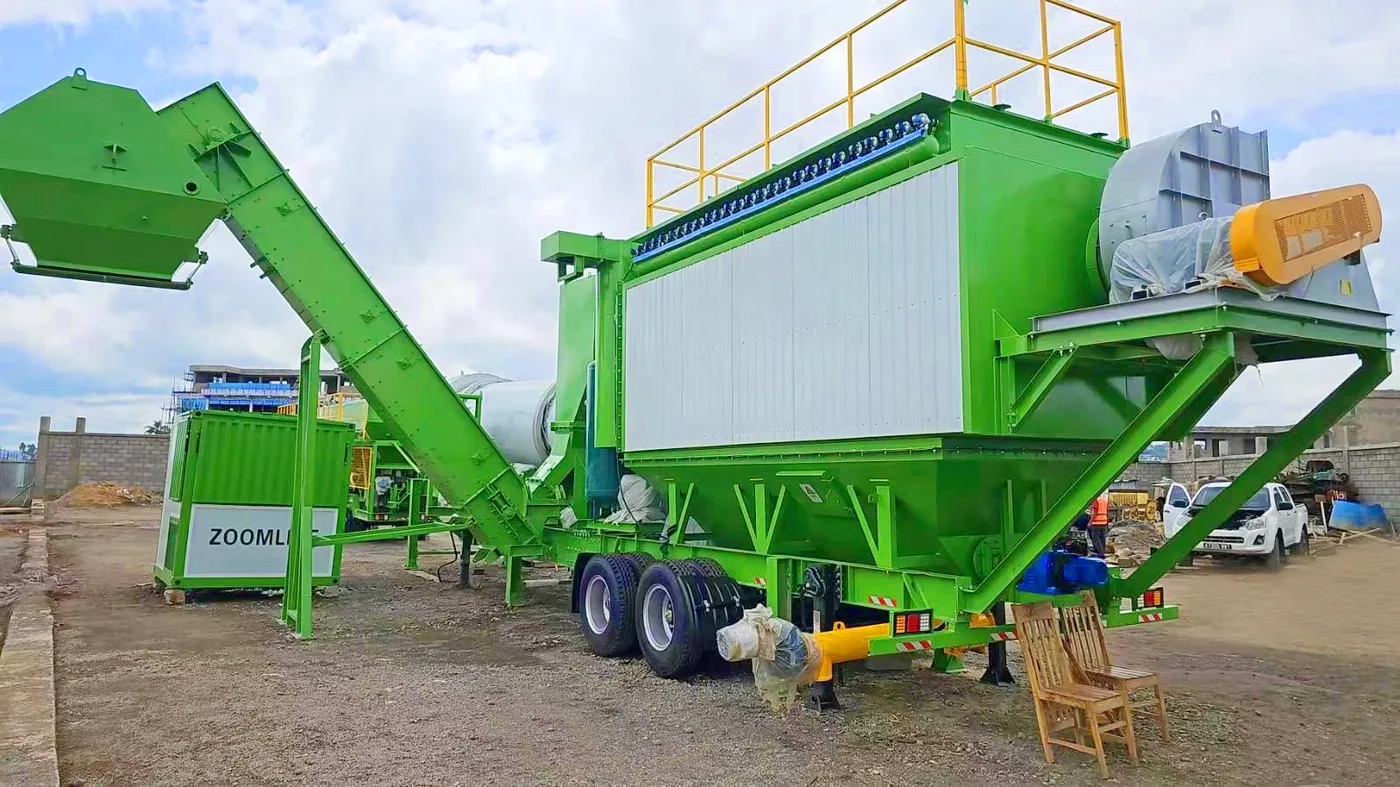

Mobile asphalt mixing plant
The mobile mixing plant adopts a fully integrated chassis design, with key equipment (drying drum, mixer, asphalt tank) integrated into a towable chassis. Its modular quick-assembly structure enables relocation and installation within 48 hours, making it particularly suitable for dispersed projects such as rural roads. The drying drum employs variable-frequency speed-regulated support roller assemblies, with PLC control enabling seamless adjustment of drum speed from 0.5 to 3 rpm. Combined with adjustable-angle material-lifting plates, this ensures uniform heating of aggregates of different particle sizes. The hydraulically driven folding conveyor belt can be retracted to a height of 3 meters during transportation, meeting highway transport clearance requirements.
Semi-stationary Asphalt Plant
The semi-stationary equipment is transported via a modular trailer, with core modules (drying system, mixing system, batching system) connected via high-strength flanges for quick assembly. The equipment is equipped with hydraulic lifting legs, enabling automatic leveling within ±15° on uneven terrain. The modular silo design supports multi-silo expansion, with a maximum storage capacity of 80 tons per silo, suitable for medium-scale road construction projects.

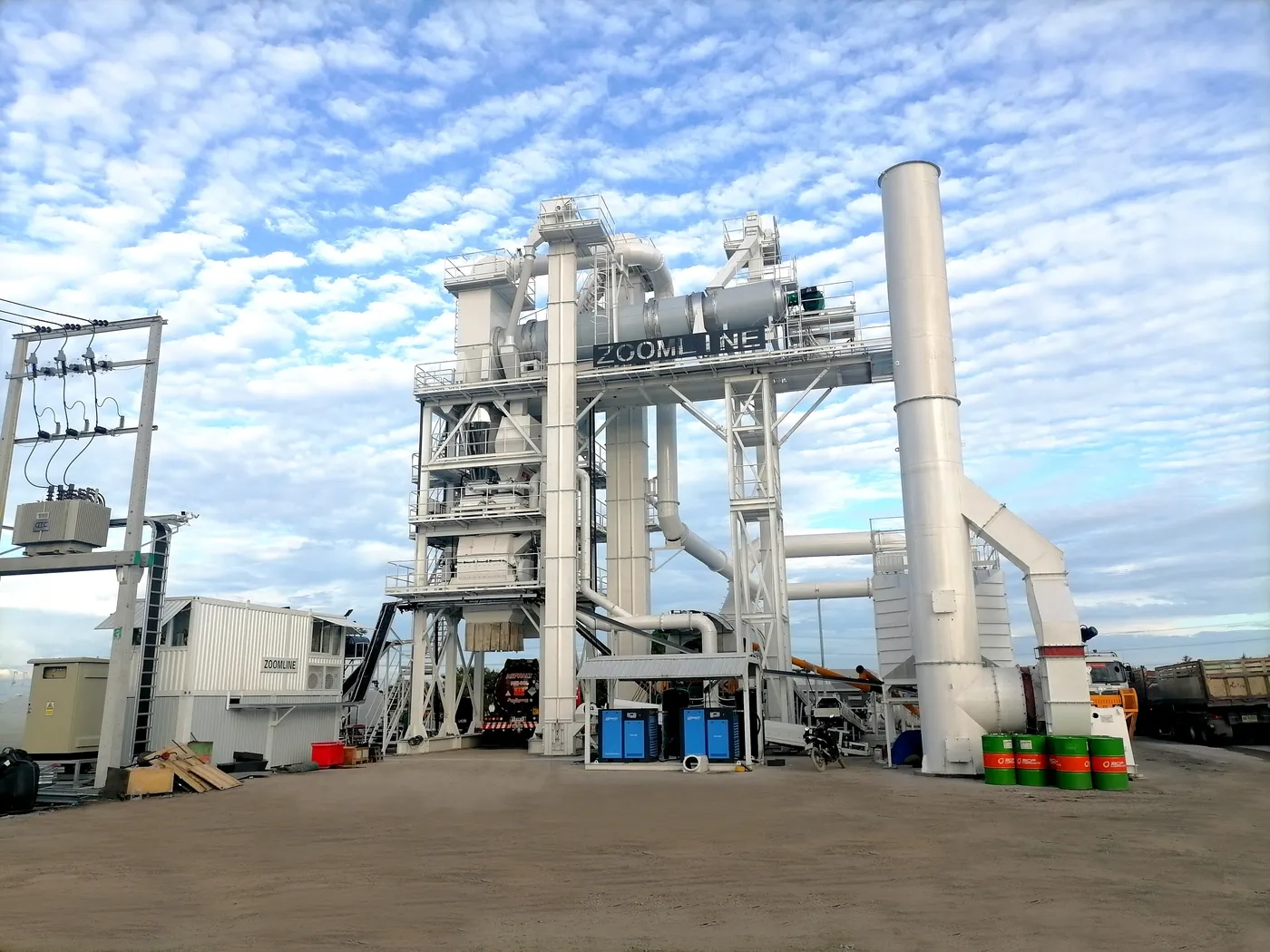

Stationary Asphalt Plant
Stationary mixing plants are large-scale industrial production facilities typically equipped with large drying drums with diameters exceeding 4 meters, achieving an hourly production capacity of up to 600 tons. It employs a two-stage batching process: aggregates are conveyed to the batching silo via a primary elevator, with dynamic continuous measurement achieved through an electronic belt scale; asphalt is metered using a closed-loop control system combining a mass flow meter and gear pump, with measurement accuracy of ±0.3%. The central control room is equipped with an industrial IoT system, enabling real-time monitoring of over 120 critical production parameters and full digital management of the production process.
Classification by Production Capacity
Small Type Asphalt Plant
Small-scale equipment (capacity < 40 tons/hour) adopts a compact integrated design, typically equipped with a single-shaft mixer. The drying system uses a direct-fired burner with a heating power of 200-500 kW. The equipment occupies an area of < 200 square meters, suitable for small-scale projects such as rural road maintenance and community road renovations.
Medium Type Asphalt Plant
Medium-sized mixing plants (40–400 tons/hour) are generally equipped with twin-shaft forced-action mixers, with a mixing capacity of 1.5–4 m³. The drying drum uses heat-resistant alloy liners, with a service life exceeding 8,000 hours. The intelligent batching system supports storage of more than 8 gradation curves, enabling quick switching to produce different types of mixtures.
Large Type Asphalt Plant
Large-scale equipment (capacity > 400 tons/hour) features fully automated production capabilities, utilizing dual mixer main units in parallel configuration, with each mixer achieving a power output of 315 kW. The drying system is equipped with a heat recovery burner, enhancing thermal efficiency to 92%. The central control room employs a DCS distributed control system, enabling coordinated operation of multiple units to meet the demands of large-scale infrastructure projects such as highways.
Classification by Environmental Performance

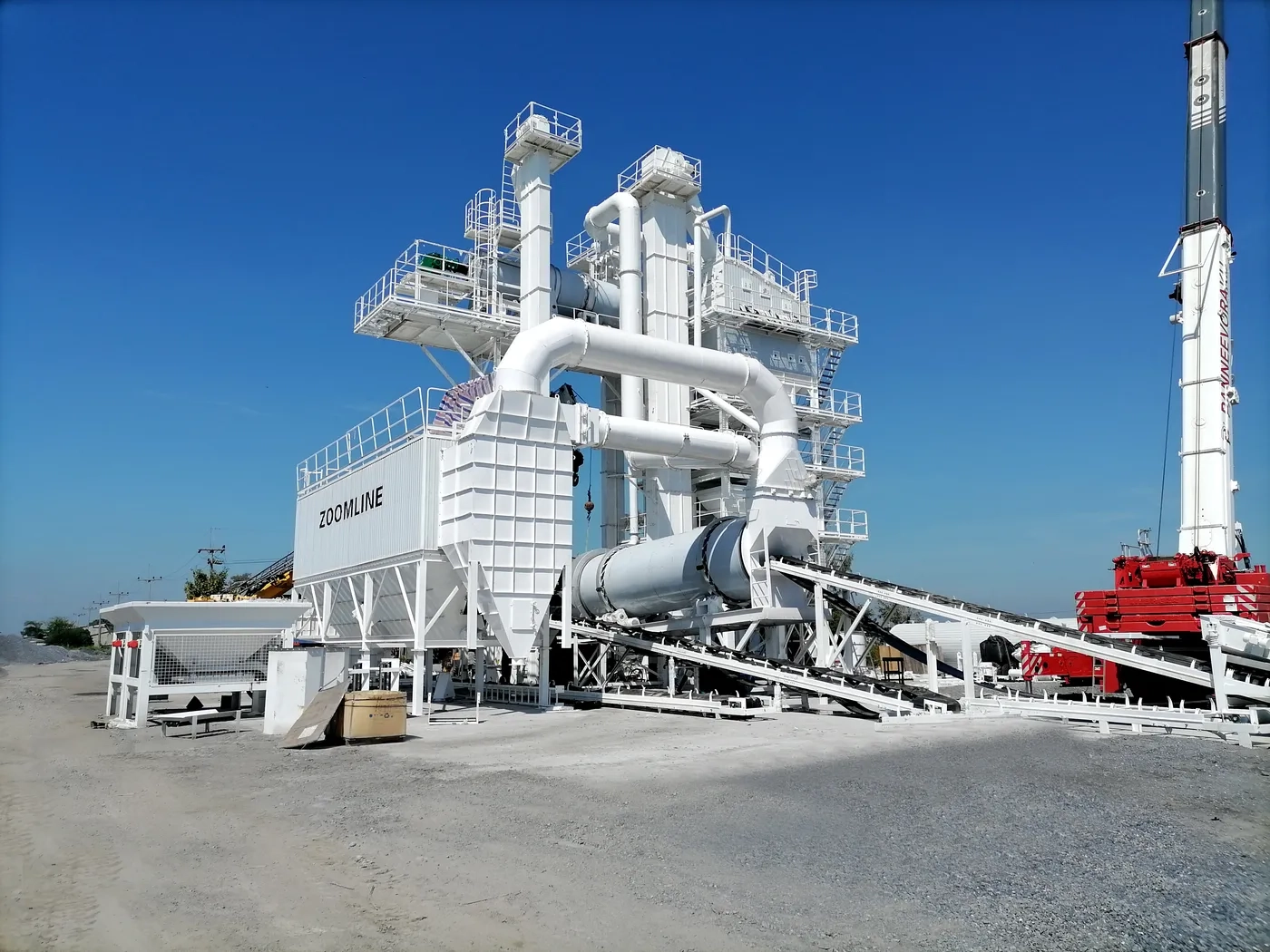

Eco-friendly Asphalt Plant
Eco-friendly equipment features a fully enclosed negative pressure dust collection system with pulse baghouse dust collectors, achieving dust emission concentrations ≤10 mg/m³. Asphalt fume treatment employs a composite process of “condensation recovery + activated carbon adsorption,” achieving a benzopyrene removal rate >95%. The drying system is equipped with low-nitrogen burners, with NOx emissions ≤80 mg/m³, meeting the EU Stage V emission standards.
Traditional Asphalt Plant
Traditional equipment generally uses a combination of cyclone dust collection and water curtain dust collection, with dust emission concentrations of approximately 50–80 mg/m³. Asphalt fume treatment capacity is relatively weak, and technical upgrades are required to meet current environmental regulations.
Classification by Resource Recovery Characteristics
Resource Recycling Asphalt Plant
Hot recycling plants employ a dual-drum recycling process: the outer drum heats old materials to 160°C, while a crushing device breaks up clumped materials; the inner drum adds new aggregates, asphalt, and rejuvenators, achieving uniform blending of new and old materials through specially designed mixing blades. The equipment supports blending of over 30% recycled asphalt pavement (RAP) materials, and when combined with warm-mix technology, energy consumption can be reduced by 25%.
Non-recycling Asphalt Plant
Non-recycling equipment uses a fully virgin material production model, with all materials—from asphalt and aggregates to additives—being brand-new. Through precise blending ratios and advanced mixing processes, it ensures consistent gradation stability, asphalt content accuracy, and mechanical properties for each batch of mix. This equipment is particularly suitable for special projects with stringent requirements for material durability, skid resistance, and high-temperature stability, such as airport runways, cross-sea bridge pavement layers, and dedicated roads for nuclear power facilities. However, due to its complete reliance on virgin resources, the production process faces rigid constraints on high-quality aggregate resources such as quartz sand and basalt, and also consumes large amounts of high-grade asphalt and fuel, resulting in a 20%-35% increase in production costs per ton compared to recycled equipment, while significantly increasing carbon emissions and posing a challenge to environmental carrying capacity.
Classification by Structural Design
Containerized Asphalt Plant
Containerized equipment is designed using standard shipping container dimensions, with each module integrating a complete production unit. It features a quick-connect piping system, reducing relocation and installation time to 24 hours. The modular dust collection system uses a foldable bag design, reducing transportation volume by 60%, making it particularly suitable for overseas projects and emergency response initiatives.
Non-Containerized Asphalt Plant
Non-containerized equipment is based on a modular, customized steel structure design concept, utilizing 3D modeling technology to precisely match site dimensions, terrain slopes, and surrounding facility layouts. This enables flexible combination of core modules such as production workshops, material silos, and mixing towers. This highly customized feature enables it to fully utilize irregular sites, such as mountain slopes and narrow plots of land, making it particularly suitable for the construction of large permanent production bases. However, since the main structure of the equipment is made of heavy-duty steel welded together, each module can weigh up to tens of tons, requiring a professional transportation fleet and special lifting equipment for transportation. From equipment disassembly, long-distance transportation to on-site assembly and commissioning, the entire process typically takes 3-6 months, during which a professional engineering team must be on-site for guidance. Compared to containerized equipment, its transportation and installation processes are more complex, significantly extending the project startup timeline.
Other Special Types
Recycled Asphalt Mix Plant (RAMP)
The recycled asphalt mixing plant is equipped with a dual vibrating screening system capable of precisely separating old materials into different particle sizes ranging from 0 to 40 mm. The intelligent additive metering system automatically adjusts the dosage of recycled asphalt binder (RAP) based on the aging degree of the RAP, and in conjunction with microwave heating technology, ensures that the temperature deviation of the heated old materials is within ±5°C.
Mobile Hot Asphalt Mix Plant
The mobile hot mix equipment integrates a diesel generator set, asphalt heating tank, and mixing device into one unit. It uses a hydraulically driven planetary mixer with a mixing speed of up to 60 rpm, enabling on-site production of hot mix asphalt mixture and effectively addressing material supply challenges in remote areas.
Selection Guide for Asphalt Mixing Plants
Project Scale and Schedule
Ultra-large projects (＞1 million tons)
Ultra-large projects often have massive demand for asphalt mixtures and tight schedules. It is recommended to prioritize fixed-type mixing plants with a production capacity of 600 tons per hour or above. These plants are equipped with a dual-unit work system, enabling 24/7 continuous high-efficiency production. For example, in large-scale highway construction projects, dual-unit collaborative operation can increase daily production capacity to over 12,000 tons, effectively shortening the construction schedule. Additionally, fixed-type mixing plants offer higher stability and automation levels, ensuring consistent product quality during prolonged continuous operation.
Small to Medium-Sized Projects (<100,000 tons)
For small and medium-sized projects, such as rural road renovations or municipal road construction, mobile or medium-sized intermittent equipment offers greater advantages. Mobile mixing plants feature rapid relocation capabilities, enabling flexible deployment across different construction sites and reducing material transportation costs; medium-sized intermittent equipment, with lower initial investment and flexible production capacity, achieves efficient resource utilization. By precisely matching project requirements, equipment idle rates can be effectively controlled, maximizing return on investment.
Construction Site Conditions
Areas with Inconvenient Transportation (e.g., mountainous regions)
In mountainous, high-altitude, or other geographically complex areas with inconvenient transportation, container-type or mobile equipment is the optimal choice. Container-type mixing plants feature a modular design, allowing them to be disassembled for transportation and quickly assembled at the construction site, significantly reducing transportation difficulties; Mobile mixing plants are equipped with self-propelled mechanisms, enabling them to move autonomously on rugged terrain and quickly relocate equipment. For example, in a mountainous highway construction project, mobile mixing plants reduced material transportation distances by 30%, significantly improving construction efficiency.
Construction in Urban Centers
Construction in urban areas must strictly adhere to environmental protection and noise control requirements. Selecting environmentally friendly mixing plants with noise levels ≤75dB can effectively minimize the impact on surrounding residents’ lives. Such plants typically feature fully enclosed mixing towers, soundproof enclosures, and other noise-reduction facilities, while employing negative pressure dust collection systems and baghouse dust collectors to keep dust emissions at extremely low levels. For instance, in urban elevated highway construction, environmentally friendly plants utilize advanced dust collection systems to maintain dust emission concentrations below 20 mg/m³, meeting urban environmental standards.
Technical and Environmental Requirements
Special Asphalt Mixture Production
When producing high-viscosity, high-elasticity modified asphalt mixtures, a twin-shaft mixer with a mixing power of ≥220 kW must be selected. Such mixers, with their powerful mixing torque and unique blade design, can fully mix high-viscosity asphalt with aggregates within 1.5–2 minutes, ensuring uniform dispersion of the modifier. In the construction of heavy-duty traffic roads and airport runways, the mix produced by twin-shaft mixers exhibits superior resistance to rutting and enhanced durability, thereby extending the service life of the pavement.
Environmental Sensitive Areas
When constructing in environmental sensitive areas such as ecological protection zones or residential areas, a VOCs (volatile organic compounds) treatment system must be installed. This system uses processes such as adsorption and catalytic combustion to treat harmful gases generated during production, ensuring emissions comply with GB 36886-2018 “Emission Standards for Air Pollutants from the Production of Asphalt Concrete and Asphalt Mixtures.” Additionally, the mixing plant should be equipped with a wastewater recycling treatment system and solid waste classification disposal facilities to achieve comprehensive environmental control throughout the production process.
Core Components and Spare Parts
Key Equipment
Cold Material Silo: As the starting point for asphalt production, the cold material silo is used to store raw materials such as sand, gravel, and mineral powder. It typically features multiple independent compartments for graded storage and employs variable-frequency speed-controlled belt conveyors and electronic metering devices to precisely control the conveying speed and ratio of each raw material.
Drying Drum: Utilizing high-temperature heat conduction and counter-current drying principles, the drying drum rapidly dehydrates moist cold aggregate. Its internal spiral blade design ensures uniform heating of the material. Common heat sources include natural gas, fuel oil, or biomass fuel.
Vibrating Screen: Utilizes a multi-layer screen structure to classify the dried aggregate by particle size. Material that does not meet the required particle size is automatically returned to the drying drum for reprocessing, ensuring the accuracy of the finished material’s gradation.
Mixing Equipment: Available in two types: intermittent forced mixing and continuous mixing. Forced mixers use high-strength rotating blades to thoroughly mix asphalt, aggregate, and additives in a short time; continuous mixers are suitable for large-scale production, achieving continuous discharge through dynamic balance control.
Asphalt Tank: Equipped with a heating and insulation system and a liquid level monitoring device, it uses thermal oil circulation heating to ensure that the asphalt remains in a liquid state at all times, while also featuring anti-oxidation and anti-leakage designs.
Weighing Hopper: Integrated with high-precision weighing sensors and a PLC control system, it performs dynamic weighing and measurement of raw materials for each component, with an error control of ±0.5% or less, ensuring the stability of the mix ratio.
Emissions control system: Includes baghouse dust collectors, activated carbon adsorption units, and flue gas purification equipment. Through multi-stage filtration and catalytic combustion technology, dust emissions are controlled below environmental standards, minimizing impact on the atmospheric environment.
Storage silo: Used for temporary storage of finished asphalt mixture. The silo is equipped with temperature monitoring and anti-segregation devices to ensure uniform temperature and consistent quality of the mixture during discharge.
Spare Parts
Wear Parts: Components such as mixing blades and liners that directly participate in material mixing are prone to wear due to prolonged exposure to high temperatures and friction, requiring regular replacement. Blades made of high-chromium alloy have over 30% improved wear resistance, significantly extending service life.
Transmission components: Gearboxes, pulleys, V-belts, and other transmission components may experience gear surface wear or belt aging under high-load operation. Stocking spare parts can prevent shutdown incidents caused by transmission failure and reduce production downtime.
Control components: Critical control components such as temperature sensors, pressure sensors, and metering sensors can directly affect mixing ratio accuracy and equipment operational safety if they experience signal deviations or failures. Regular replacement and calibration of spare sensors are essential for maintaining production stability.
Sealing and connecting components: High-temperature resistant seals, high-strength bolts, and other wear-prone components, though small in size, play a critical role in preventing asphalt leakage and dust overflow, ensuring equipment sealing integrity and structural stability.
Advantages of Asphalt Mixing Plants
Production Efficiency

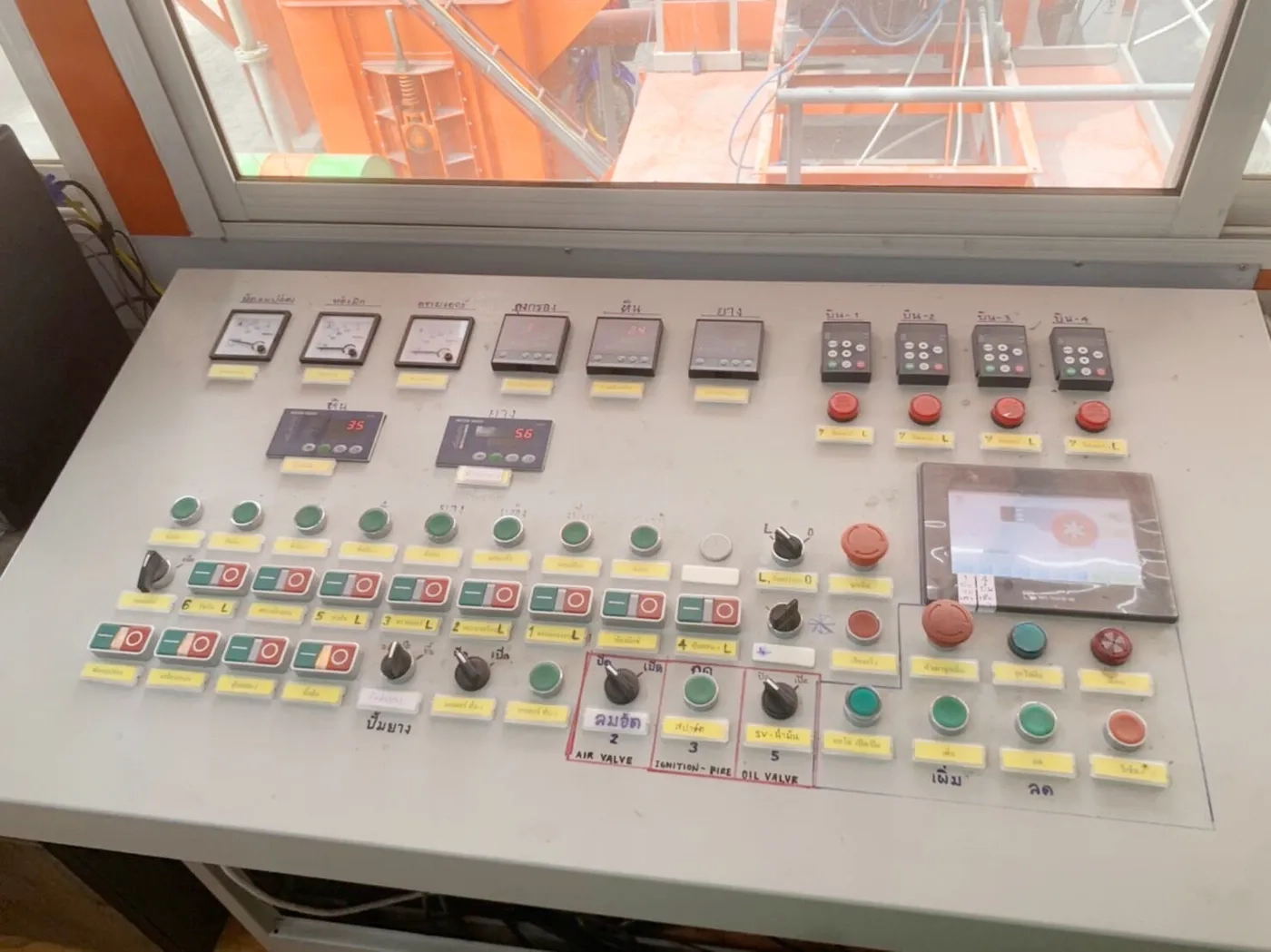

Based on the Industry 4.0 technology architecture, asphalt mixing plants achieve dynamic optimization of the entire production process through the deep integration of intelligent sensors and central control systems. Taking intermittent mixing equipment as an example, through a real-time data feedback mechanism, the single mixing cycle time has surpassed industry norms, reducing from the traditional 60 seconds to 35 seconds, resulting in a 15% increase in production capacity per unit time. Combined with the millisecond-level response speed of the automated batching system, it can meet the daily demand for asphalt mixture supply of tens of thousands of tons for large-scale infrastructure projects, effectively shortening the project timeline.
Cost Control
Regeneration Technology Innovation: By adopting advanced hot regeneration and warm mixing regeneration technologies, the incorporation ratio of recycled asphalt pavement materials has been increased to 30%-40%, directly reducing raw material procurement costs by 20-30%. Through multi-stage screening and intelligent heating systems, the performance restoration and uniform mixing of recycled materials are ensured, balancing economic benefits with quality standards.
Intelligent Energy Consumption Management: The combustion control system monitors over 20 parameters in real-time, including aggregate temperature and environmental humidity, to dynamically adjust fuel supply. Test data shows that compared to traditional mixing plants, fuel consumption can be reduced by 12-18%. In a mixing plant with an annual production capacity of 500,000 tons, annual fuel cost savings can reach several million yuan.
Environmental Benefits
Fully Enclosed Production System: The entire process from raw material storage to finished product transportation adopts a sealed structure, equipped with a negative pressure dust collection system and baghouse dust collector, keeping dust emission concentrations below 10 mg/m³, far below national environmental standards.
Clean Energy Substitution: Promoting the use of clean energy sources such as natural gas and biomass energy to replace traditional heavy oil combustion, combined with waste heat recovery and reuse technology, achieves a significant reduction of 40% in CO₂ emissions. Some high-end equipment is further integrated with carbon capture modules, supporting the road construction industry’s transition toward low-carbon and circular development.
The Significance of Selecting Asphalt Plants
The selection of asphalt mixing plant technology requires a systematic balance of project scale, site layout, and local environmental policy requirements. With the iterative upgrading of intelligent control and green manufacturing technologies, the new generation of mixing equipment achieves carbon neutrality in the production process while significantly increasing production capacity through automated mixing ratios, precise temperature control, and integrated exhaust gas purification systems. It is also advancing toward traceable carbon emissions throughout the entire lifecycle and intelligent equipment maintenance management, laying a solid foundation for efficient and environmentally friendly core equipment in modern transportation infrastructure construction.
