In the wave of high-speed development of infrastructure construction in Southeast Asia, high-performance, high-stability, high-precision pavement construction equipment is the core guarantee for the realization of high-quality landing of national key projects.In January 2019, ZOOMLINE independently researched and developed and manufactured ZAP-S320 stationary asphalt mixing plant successfully completed installation and commissioning and officially put into production in Cambodia. This asphalt plant is precisely supporting the key infrastructure project of Cambodia National Highway No. 1, which is procured and applied by China Road and Bridge Engineering Corporation (CRBC), a top domestic centralized enterprise and an internationally renowned engineering contractor. The successful landing of this high-end overseas benchmark project fully verifies the excellent performance and strict quality control system of ZOOMLINE asphalt mixing plant, and highlights the brand’s comprehensive strength to obtain authoritative recognition of the world’s top infrastructure enterprises.
Cambodia National Highway No. 1 is the core trunk road network project in Cambodia’s transportation planning, and it is a representative national landmark infrastructure project in the country, which bears the key mission of regional connectivity and opening up internal and external transportation hubs. After the completion of the project, it effectively improves the road transportation system in Cambodia, accelerates the flow of regional materials, drives industrial upgrading and economic development along the route, and has far-reaching strategic value for the improvement of local people’s livelihoods, urbanization and regional economic and trade development.
This key overseas infrastructure project is fully undertaken by China Road and Bridge Corporation (CRBC). As the world’s top centralized infrastructure enterprise, CRBC is deeply engaged in the field of major construction projects at home and abroad, and has built a set of standardized and highly demanding global supplier selection and equipment access system. For high standard and high specification national road projects such as Cambodia National Highway No.1, CRBC has set up a very high entry threshold for the capacity stability, measurement accuracy, environmental emission standard, continuous operation capability and overseas full-cycle service capability of asphalt mixing plant, and only selects high-quality equipment brands with international first-class manufacturing strength and mature overseas project landing experience.
Cambodia National Highway No.1 has the project characteristics of large construction volume, high construction standard and tight schedule, CRBC faced many construction difficulties during the equipment selection stage, and put forward a series of strict technical and usage requirements for asphalt mixing plant:
High production demand: the overall construction scale of the project is huge, and the demand for long-term continuous operation is outstanding, which requires the asphalt mixing plant to have a stable and high output capacity, and can continuously supply large quantities of high-quality asphalt mixtures around the clock to ensure that the construction process is uninterrupted, and eliminate the problem of delaying the schedule for the lack of production capacity of the asphalt plant.
Strict quality standard: the highway road surface asphalt mixture has the ultimate requirements of proportioning accuracy and material temperature stability, which directly determines the smoothness of the road surface, compaction density, wear-resistant durability and long-term service life, and requires the equipment to achieve high-precision metering, constant-temperature mixing, and constant performance of the material, to ensure the quality of the road surface construction from the source.
Environmental compliance: the local construction site in Cambodia implements strict green environmental control standards, with clear limits for construction dust and exhaust emissions, which requires the asphalt mixing plant to be equipped with a mature and efficient environmental protection and dust removal system to fully meet the local green construction specifications and environmental policy requirements.
Stable operation demand: overseas construction sites have limited operation and maintenance conditions, and equipment maintenance and repair is much more difficult than at home, requiring the asphalt plant structure is rugged and durable, low failure rate, and at the same time has the characteristics of easy operation and convenient maintenance, which can be adapted to the long-term high-intensity continuous construction conditions, and effectively reduce the cost of operation and maintenance of the project and the construction risk.
In the multiple rounds of asphalt plant equipment screening and evaluation of Cambodia National Highway No. 1 project, ZOOMLINE, with its excellent product performance, strict quality control system, mature overseas project delivery capability and good industry reputation, stood out among many similar brands at home and abroad, and successfully became the designated asphalt mixing plant supplier of CRBC. ZOOMLINE ZAP-S320 stationary batch type asphalt mixing plant can be successfully stationed in CRBC’s overseas benchmark projects, the core of which comes from the all-round hardcore strength of the brand and products.
CRBC overseas key projects to implement a stringent globalization procurement audit mechanism, around the brand qualification, R & D strength, production process, quality control system, project cases, after-sales protection of the six dimensions to carry out multi-level strict audit. zoomline has a perfect asphalt mixing plant R & D, design, production, testing of the whole industrial chain system and standardized production process, the product of the performance parameters, safety standards, All the performance parameters, safety standards and environmental protection indexes of ZOOMLINE’s products have reached the international high-end engineering procurement standards, and have successfully passed CRBC’s all-round and highly demanding supplier access audit.
ZAP-S320 stationary batch asphalt mixing plant is a flagship model tailored for high-speed trunk lines, large municipalities, national infrastructure and other high-end projects, integrating the five core advantages of large production capacity, high precision, low energy consumption, low emissions and high stability, accurately matching the core requirements of this Cambodian high-speed project of continuous high-yield construction, accurate material proportioning, green production and long-term stable operation, which fully meets the national high-standard roads’ requirements. It fully meets the construction equipment specifications for national high standard roads.
In view of the industry pain points of asphalt plant transportation, on-site installation, commissioning, operation and maintenance difficulties and lagging service of overseas projects, ZOOMLINE has built a mature one-stop closed-loop service system for overseas projects, which can provide the whole process of equipment customization, cross-border shipment, on-site lifting and assembling, equipment debugging, technical training for operators, and full-cycle after-sales maintenance services, and completely solve the core pain points of difficulty in landing and maintenance of equipment for overseas projects, and comprehensively guarantee the delivery of equipment to the CRLine. It completely solves the core pain point of overseas project equipment landing difficulty, operation and maintenance difficulty, and guarantees the efficient construction of CRBC project in all aspects.
CRBC, as the head of domestic infrastructure central enterprises, its equipment selection standards represent the threshold of high-end equipment in the domestic and global infrastructure industry. The official selection of ZOOMLINE ZAP-S320 stationary asphalt mixing plant by CRBC is an authoritative endorsement of the brand’s R&D strength, product quality and overseas delivery capability, which fully confirms that the technology level, operational stability and comprehensive performance of our asphalt mixing plant have ranked among the international first-class level, and it can reliably serve all kinds of high-end key infrastructure projects around the world.
ZAP-S320 stationary batch asphalt mixing plant has strong production capacity on a large scale. Under the standard working condition of 5% moisture content of aggregate, the rated capacity of the equipment can reach 320-340T/H, and the maximum processing capacity of the drying system is up to 360T/H, which can fully support the large-scale and continuous asphalt material production demand of large highway projects, efficiently adapt to the tight construction schedule, and guarantee the steady progress of the project. It can efficiently meet the tight construction schedule and guarantee the steady progress of the project.
The asphalt plant equipment is equipped with high-precision intelligent metering system to realize accurate proportioning of various materials, of which the error of aggregate metering precision is controlled at ±0.5%, and the error of powder and asphalt metering precision is as low as ±0.2%, which protects the asphalt mixture from the root of the uniform proportioning and stable performance. At the same time, the equipment has excellent constant temperature control ability, aggregate temperature fluctuation error ≤ ± 5 ℃, finished asphalt material temperature fluctuation error ≤ ± 3 ℃, effectively avoiding abnormal temperature triggered by the deterioration of the material, pavement construction defects and other issues, significantly improve the construction quality of highway pavement and long-term durability. The single batch mixing capacity of the ZAP-S320 stationary asphalt mixing plant can be up to 4500kg, with two 55KW high-power mixing hosts, high mixing uniformity and stable material quality, which fully meets the material standards of high-standard road projects.
In order to strictly meet the local green construction and environmental control requirements in Cambodia, ZAP-S320 stationary batch type asphalt mixing plant is equipped with primary cyclone dust removal + secondary bag dust removal double efficient dust removal system, and the concentration of dust emission from the equipment is stably controlled within 50mg/Nm³, which is far better than the local environmental control standards, realizing low dust, low pollution, clean production, and assisting the project in green construction.
The asphalt plant adopts pulverized coal heating mode, with closed environmental protection coal storage silo, which effectively reduces fuel consumption and pollutant emissions while guaranteeing efficient drying operation. The whole machine adopts all-round energy-saving heat preservation design, the drying drum, bitumen storage tank, hot aggregate bin are paved with thickened heat preservation layer, bitumen pipeline adopts double-layer heat preservation structure, minimize heat loss, effectively reduce the long-term operation of the equipment energy consumption, significantly reduce the project’s production and operation costs, taking into account the environmental protection and economy.

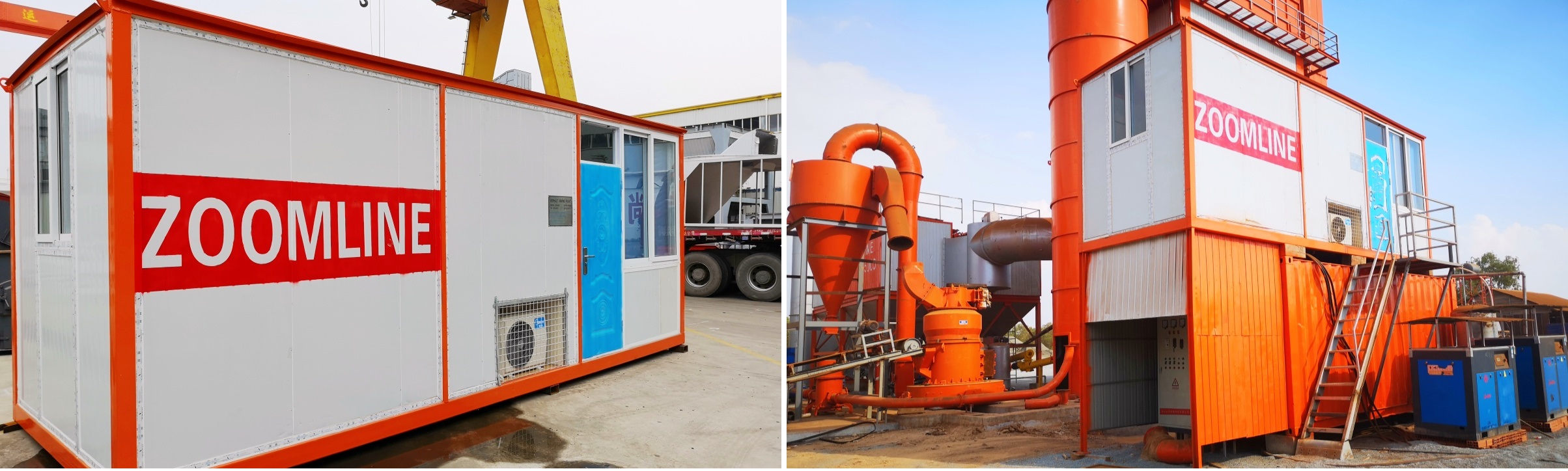

ZAP-S320 stationary batch type asphalt mixing plant is equipped with the industry’s mature PLC dual-computer intelligent control system, which supports the free switching of manual and automatic dual-mode, and can be flexibly adapted to different construction conditions and operating habits of the operator. The system integrates intelligent functions such as formula storage, automatic printing of production reports, real-time operation monitoring, remote troubleshooting, etc. The operation interface is simple and intuitive, and the operation process is simplified, which greatly reduces the difficulty of manual operation and the pressure of on-site operation and maintenance.
At the same time, the control system adopts dual air-conditioning cooling, strong and weak power zoning independent power distribution structure, targeted to match the complex outdoor working conditions of high temperature, high humidity and heat and open-air operation in Cambodia, effectively guaranteeing the long-term stable operation of the control system, avoiding circuit failures, equipment shutdowns and other problems, and significantly improving the stability of continuous operation of equipment.
The core drying drum of ZAP-S320 stationary batch asphalt mixing plant is forged with high-strength boiler steel plate, and the outer layer is equipped with mirror stainless steel protective layer and multi-layer heat preservation structure, which is equipped with excellent abrasion-resistant, corrosion-resistant, and aging-resistant performance, and it can be adapted to the overseas high-intensity, uninterrupted and continuous working conditions for a long time. The asphalt plant is equipped with 6-layer high-precision screening system with double 22KW drive motors, which provides even material grading, high screening efficiency and stable precision; the whole machine adopts 6+1 hot aggregate storage structure with intelligent high and low material level detecting device, which monitors the material balance in the silo in real time and effectively eliminates the problems of lack of material and overflow to ensure the continuity of production.
The unloading of hot aggregate adopts double cylinders and double gates synchronized control structure, which makes the unloading speed faster and the metering accuracy higher, and effectively improves the production efficiency and material proportioning accuracy. The ZAP-S320 stationary batch asphalt mixing plant is equipped with perfect material supply system, including 50m³ new powder silo, 30m³ recycled powder silo and 6 sets of 50m³ thermal oil heating bitumen storage tanks, with sufficient material reserve and stable supply, which can fully meet the demand of large-scale high-speed projects for uninterrupted construction. The total installed power of the whole asphalt plant machine is about 870KW, with abundant power configuration and smooth operation, which is perfectly suitable for long-term high-intensity large-scale production operations.
| Model | ZAP-S320 Stationary Asphalt Mixing Plant | ||
| Rated output (T/H) | 320-340T/H ( 5% water content ) | ||
| Cold aggregate storage bin | 6x12m³, Frequency conversion control of metering belt conveyor | ||
| Drying drum | Diameter | Φ2800 | |
| Length | 11000 Mirror stainless steel outer packing | ||
| Driving power | 4x30KW | ||
| Fuel | Coal (pulverized coal) + environment-friendly coal storage bin | ||
| Drying capacity | 360T/H ( 5% water content ) | ||
| Temperature stability of aggregate | ±5℃ | ||
| Dust removing way | <50mg/Nm³ Primary cyclone + secondary bag house dust remove, dust emission concentration | ||
| Screen layers | 6 layers driving; Driving power: 2x22KW | ||
| Metering | Aggregate weighing | 5000kg | Measuring accuracy±0.5% |
| Powder weighing | 800kg | Measuring accuracy±0.2% | |
| Bitumen weighing | 500kg | Measuring accuracy±0.2% | |
| Mixer power | 2x55kw | ||
| Mixing tank volume
(not less than this value) |
4500kg/Batch | ||
| Temperature stability of finished materials | ±3℃ | ||
| Bitumen system | 6x50m³ Bitumen tank, Thermal Oil heating | ||
| Filler system | New filler50m³, recycle filler30m³ | ||
| Control system | PLC+Dual Computer+Printer with Manual/Automatic Operation | ||
| Total installed power of the equipment | ～870KW | ||

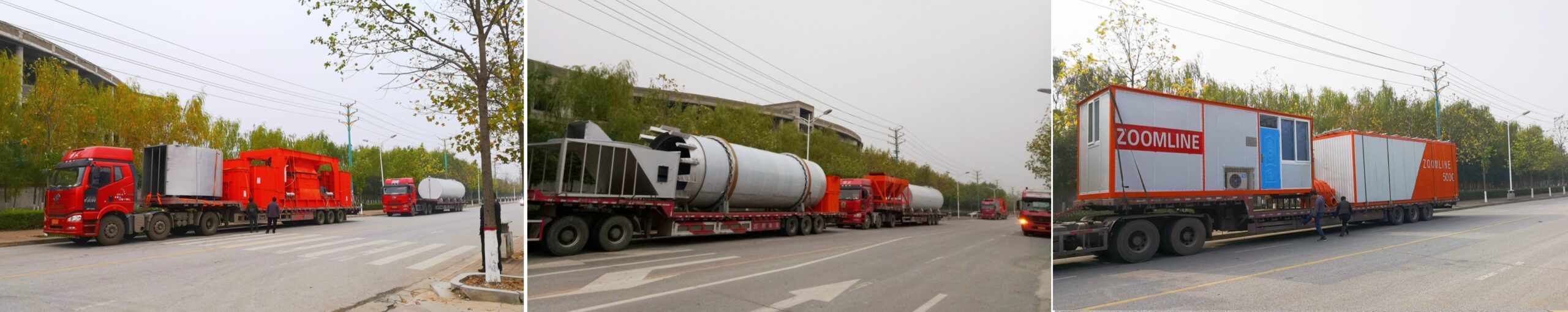

In order to ensure that this key overseas project is efficiently landed and put into operation on schedule, ZOOMLINE has set up a professional overseas engineering service team, stationed at the Cambodian construction site to follow up the whole process, and completed the whole process of equipment lifting, machine assembly, pipeline installation, circuit and gas circuit debugging, and on-line commissioning of the ZAP-S320 stationary asphalt mixing plant in a high-standard manner, so as to compress the project preparation cycle with an efficient and standardized delivery process, and ensure that the equipment is installed on time and put into operation on schedule. The project preparation cycle is compressed with efficient and standardized delivery process to ensure that the equipment is put into operation on time.

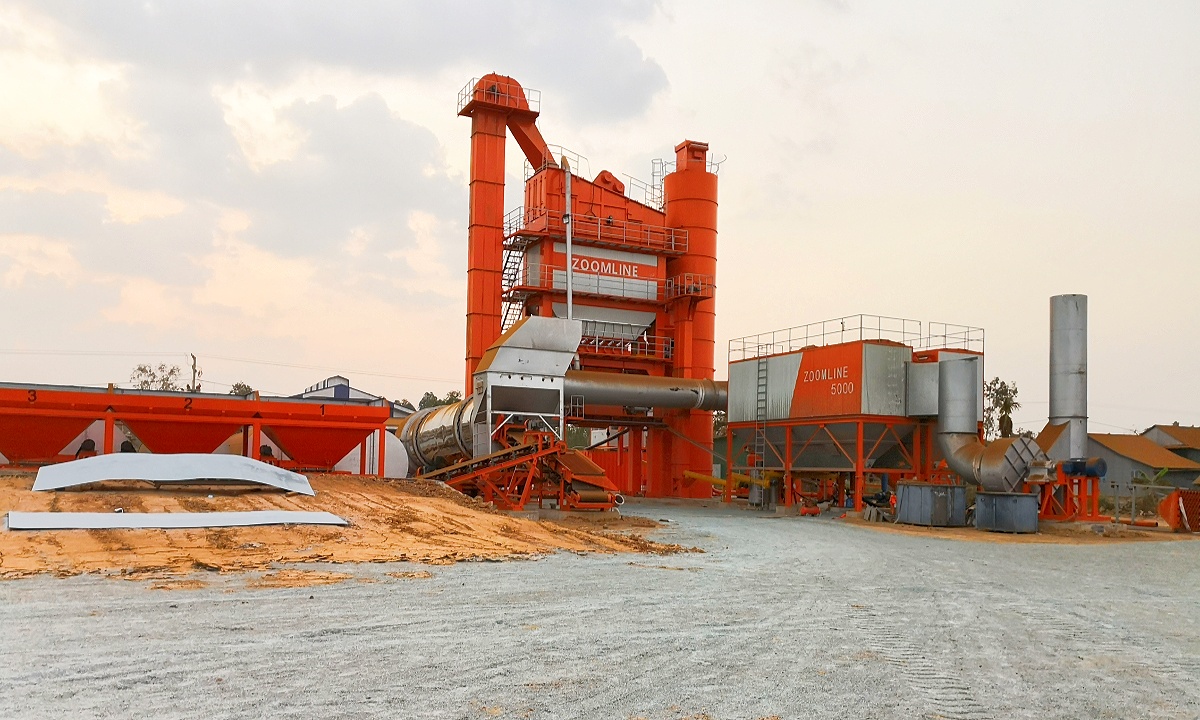

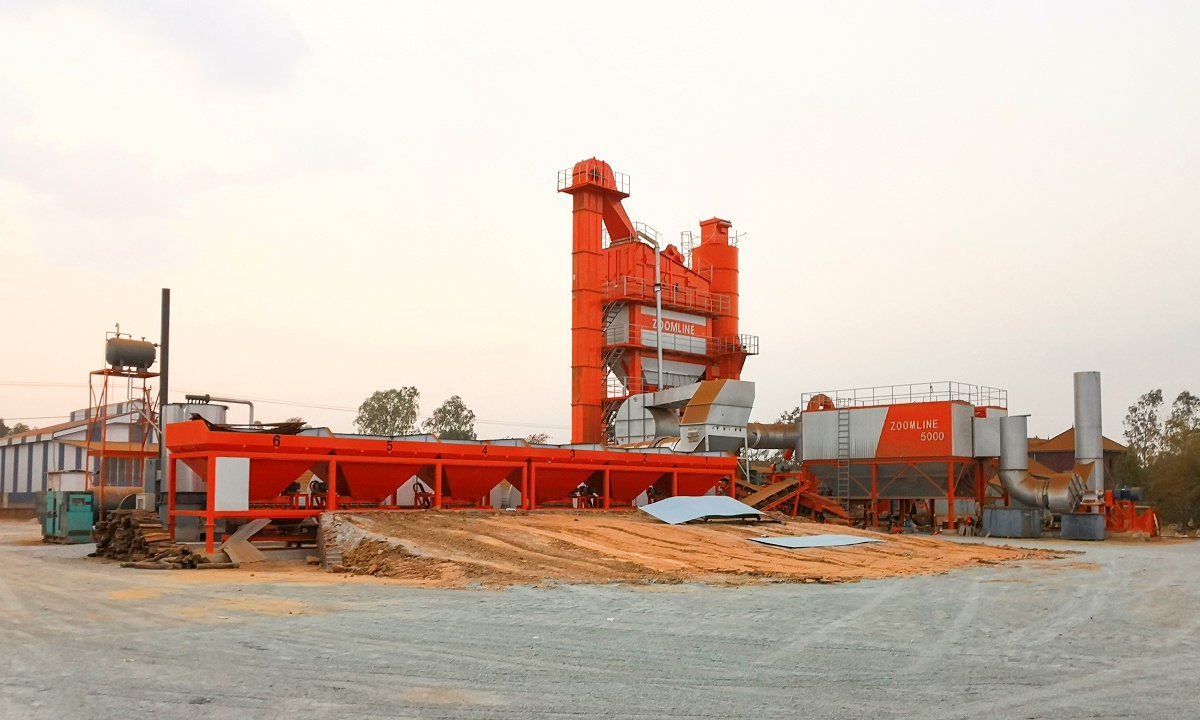

Since the asphalt plant was officially put into operation in January 2019, it has been operating continuously and stably for a long time in the Cambodia National Highway No. 1 project without any major faults or unexplained shutdowns, and has met CRBC’s strict construction standards in terms of production capacity output, mixture quality, environmental protection, continuous and stable operation, etc. in an all-round way.
From the actual operation effect, ZAP-S320 stationary asphalt mixing plant’s large capacity advantage effectively speeds up the overall construction progress of the project, high-precision metering and mixing system guarantees the quality of pavement construction from the source, energy-saving and heat preservation design significantly reduces the project’s operational energy consumption and production costs, and the high-standard dust removal system fully complies with the local environmental protection policy, which all-roundly builds up a solid foundation of equipment for the high-quality delivery of the No. 1 National Highway in Cambodia.
The in-depth cooperation with CRBC, a centralized enterprise, is a benchmark case of ZOOMLINE’s overseas projects with great gold content. Being able to successfully pass the stringent selection audit of top infrastructure central enterprises and serve national key overseas infrastructure projects fully proves that ZOOMLINE asphalt mixing plant’s precision quality, technical stability and overseas full-cycle service system fully meets the international standards for high-end engineering applications, and provides authoritative endorsement for the brand’s globalization development.
At the project value level, the stable and efficient service of ZAP-S320 stationary batch asphalt mixing plant has strongly guaranteed the smooth construction and operation of Cambodia National Highway No. 1, improved the local core and backbone transportation network, opened up the regional economic and trade circulation channels, and greatly driven the economic development along the route, which creates significant project value and social benefits.
In terms of brand value, this project has become the core benchmark case of ZOOMLINE’s deep plowing in the Southeast Asian infrastructure market. Relying on the authoritative certification of CRBC’s national key overseas projects, the brand’s international visibility, industry recognition and market influence have been greatly enhanced, fully demonstrating the high-end quality and hardcore technical strength of China-made asphalt mixing plant equipment, and laying a solid foundation for the brand to continue to explore the high-end infrastructure market in Southeast Asia and deepen the cooperation of central enterprises in overseas projects.
The successful landing and stable operation of Cambodia National Highway No. 1 project is the most intuitive and authoritative proof of the comprehensive performance of ZAP-S320 Stationary Asphalt Mixing Plant, which is also the high recognition of ZOOMLINE’s quality, technology and service by international top infrastructure customers. With stable and high-yield production capacity, high-precision mixing process, green and low-carbon environmental protection design, intelligent and convenient operating system and one-stop full-cycle overseas service, ZOOMLINE has successfully overcome the difficulties of overseas large-scale infrastructure construction, and set up a high-quality benchmark for domestic heavy equipment overseas with its precision quality.
In the future, ZOOMLINE will continue to focus on the R&D innovation and quality iteration of asphalt mixing plant equipment, continue to optimize the performance of large-scale engineering asphalt plant, upgrade the delivery of overseas projects and after-sales service system, and continue to provide highly efficient, stable, energy-saving and environmentally friendly customized asphalt mixing plant solutions for the world’s highways, municipal arterial routes, and large-scale comprehensive infrastructure projects.
For high speed, national highway, large municipal and other types of high-standard infrastructure projects, ZOOMLINE can provide 320T/H large-scale stationary batch asphalt mixing plant and a full range of tonnage of customized equipment, support for environmental protection upgrades, intelligent system iteration, energy-saving renovation and other personalized customized solutions. The brand has mature overseas delivery, on-site installation and commissioning, special technical training, lifelong after-sales maintenance service capabilities. If you need to get ZAP-S320 stationary asphalt plant detailed parameters manual, overseas project cases and accurate project quotation, welcome to consult our professional sales team at any time.
