Hot Mix Asphalt Mixing Plant for Road Construction
Global infrastructure wave sweeping, Asia “Belt and Road” high-speed corridor accelerated through, African urbanization and resource development projects intensive landing, North American highway maintenance and remote areas of the project continues to promote the high mobility, high reliability of the hot mix asphalt mixing plant (Hot Mix Plant) demand is explosive growth. The demand for highly maneuverable and reliable Hot Mix Plants is exploding. Hot mix plants for road construction are the core equipment for the production of high-quality hot mix asphalt (HMA). By precisely heating the aggregates and mixing them with asphalt and filler, they produce a homogeneous asphalt mixture, which directly determines the durability, load-bearing capacity, and construction efficiency of the pavement.
This article focuses on ZOOMLINE’s advanced solutions, focusing on T-type Mobile Batch Mix Asphalt Plant and Super Mobile Drum Mix Asphalt Plant, presenting in-depth information about its advanced solutions in remote projects in Asia, decentralized sites in Africa, and flexible maintenance scenarios in North America. The two core products, Super Mobile Drum Mix Asphalt Plant and Super Mobile Drum Mix Asphalt Plant, will present their outstanding performance in remote projects in Asia, decentralized construction sites in Africa, and flexible maintenance scenarios in North America, and provide efficient and suitable equipment selection references for global road builders.
What are the basics of hot mix asphalt plants?
What is hot mix asphalt (HMA) and its production principle
Hot mix asphalt (HMA) is the aggregate heated to 150-180 ℃, remove the water and the heated asphalt and filler according to the precise proportion of homogeneous mixture made of the mixture, with high strength, high stability and good durability, is the core material for paving roads. The core of the production principle lies in the “precise temperature control” and “uniform mixing”, the need for professional equipment to complete the key processes such as aggregate drying, screening, measuring, mixing, etc., to ensure that the quality of the mixture in line with engineering standards.
The key role of hot mix asphalt mixing plant in road construction
Hot mix asphalt mixing plant is the “heart” of road construction equipment, its performance directly affects the project quality and progress. In highways, urban main roads, airport runways, port terminals and other types of projects, it can continuously and stably output high-quality asphalt mixture, to ensure that the paving operation is continuously and efficiently promoted; especially in large-scale construction or multi-point decentralized operation scenarios, the equipment’s reliability, mobility, and capacity suitability is a key factor in determining the success or failure of the project.
The core difference between Batch Mix and Drum Mix.
| Batch Mix Asphalt Mixing Plant | Drum Mix Asphalt Mixing Plant | |
| production model | Batch production, each batch undergoes the complete process of “weighing-mixing-unloading”, with batch intervals of 40-45 seconds. | Continuous production, aggregate heating and mixing synchronized in the same drum |
| Core Advantages | Extremely high proportioning accuracy, flexible formula switching, controllable mix quality | Simple structure, high production efficiency, low equipment investment and operating costs |
| Applicable Scenarios | Projects with stringent requirements for mix quality (e.g. airport runways, urban arterial roads) | Single-formulation, large-scale continuous construction projects (e.g., rural highways, service roads) |
Mobile vs Fixed Asphalt Plants: Which Is Better for Projects in Variable Regions?
Fixed asphalt mixing plant adopts fixed installation design, with high mixing accuracy, stable production capacity and strong durability, which is suitable for long-term fixed site, large-scale production projects (such as highway hubs, large ports paving), but there are limitations of a long installation period, transfer difficulties, and high cost of infrastructure construction.
Mobile asphalt mixing plant adopts modularization or semi-trailer design, no need for complex foundation works, fast and convenient installation and transfer, and can adapt to the needs of frequent site changes. Especially in the sparsely populated cross-border corridors in Asia, decentralized infrastructure projects in Africa, and highway maintenance in remote areas of North America, the mobile plant can significantly reduce logistics and deployment costs, and achieve “nearby production and rapid response”, becoming the optimal solution for projects in variable geographic areas.
Demand Analysis of Road Construction in Asia, Africa and North America
Highway and Bridge Projects Driven by the “One Belt, One Road” Initiative in Asia
Driven by the “One Belt, One Road” Initiative, Kazakhstan, Kyrgyzstan and Tajikistan are accelerating the construction of highways, cross-border bridges and logistics corridors. Kazakhstan, Kyrgyzstan, Tajikistan and other countries are accelerating the construction of highways, cross-border bridges and logistics corridors. The region is sparsely populated, with large project spans and transportation distances of hundreds of kilometers; and facing harsh climates such as extreme temperature differences and sandy winds, the weather resistance and low-maintenance requirements for the equipment are extremely high. The long installation period of traditional fixed equipment and high logistics costs are difficult to match, and there is an urgent need for mobile solutions that can be deployed quickly and run stably.
Africa’s rapid urbanization and the wave of government infrastructure investment
African governments have increased infrastructure investment, Tanzania airport expansion, South Africa highway upgrading, Lagos, Nigeria city maintenance, road construction around the Congo and other projects intensively promoted. The projects in this region are characterized by “decentralization, short cycle, high time”, and the imperfect logistics network leads to high cost of equipment transportation, and the schedule is urgent, which requires the equipment to be put into operation quickly and adapted to different working conditions. At the same time, environmental awareness in some regions has been raised, and basic requirements have been put forward for emission control of equipment.
North American Interstate Highway Renovation and Sustainable RAP Recycling Demand
Interstate highways in the U.S. and Canada have entered a large-scale renovation phase, the demand for road maintenance in remote areas such as Alaska and rural Texas persists, and high-standard projects, such as airport runways, have stringent requirements for the quality of the mix. In addition, North America’s environmental regulations are strict, EPA and local standards on dust, exhaust emissions restrictions, and the concept of sustainable construction is deeply rooted in people’s hearts, the demand for recycled asphalt (RAP) recycling is becoming increasingly urgent, the equipment needs to have high efficiency dust removal, low emission characteristics and RAP-compatible capabilities.
Comparison of environmental regulations and emission standards in different regions
Asia: environmental standards are gradually improving, focusing on dust emission control, the balance between the portability of mobile equipment and environmental protection requirements;
Africa: some countries refer to international standards, the core cities and key projects have clear restrictions on dust and exhaust emissions, the requirements of the remote areas are relatively loose, but the overall trend is tightening;
North America: environmental regulations are the most stringent, the EPA on dust emission concentration, emissions, and the EPA on the recycling of asphalt (RAP) recycling is increasingly urgent. EPA has detailed regulations on dust emission concentration, NOx content and other indicators, while mandatory recycling requirements, equipment needs to pass a number of environmental certification.
Overall Advantages of ZOOMLINE Hot Mix Asphalt Plant
Low Fuel Consumption Economy
The fuel consumption of ZOOMLINE Hot Mix Asphalt Plant is controlled at 5.5-7kg/t, and the fuel consumption of some mobile models, such as the T-Type Mobile Batch Mix Asphalt Plant is ≤6.5kg/T, which is much lower than the average level of the industry. This advantage is especially prominent in remote areas where fuel costs are high, and long-term operation can significantly reduce project operating costs.
Efficient Dedusting System and Environmental Emission Control
plants are generally equipped with baghouse dust collectors, with some models adopting the dual system of “gravity dedusting and baghouse dedusting”, the dedusting efficiency can reach more than 99%, and the filtration area covers 115-650m², which can satisfy the global mainstream environmental protection standards. For environmentally stringent regions such as North America, the equipment can be upgraded with high-efficiency filter bags and low-NOx burners to ensure compliance with dust and exhaust emissions, while supporting RAP recycling, in line with the concept of sustainable construction.
Wide Capacity Range and Flexible Matching Capability
has a capacity range of 20-400t/h, which can be accurately matched from small maintenance projects to large-scale infrastructure projects. Among them, the capacity of mobile series covers 20-200t/h, Super Mobile Batch Mix Asphalt Plant 40-90t/h and T-type Mobile Batch Mix Asphalt Plant 60-200t/h, which can be flexibly selected according to the scale of the project to avoid waste of resources or insufficient capacity. PLC Intelligent Control and Precise Proportioning
PLC Intelligent Control and Precise Proportioning Technology
adopts PLC+Siemens and other famous brand electrical components to realize the automatic control of the whole process of drying, weighing, mixing and unloading. The precision of weighing system reaches gram level, which can accurately control the proportion of aggregate, asphalt and filler to ensure uniform and stable quality of mixture; meanwhile, it supports remote monitoring and fault diagnosis, which reduces manual intervention and improves operation efficiency and safety.
Long-life core components and low maintenance cost
The drying drum adopts optimized design, with 50mm thick thermal insulation material wrapped around the exterior and high-efficiency lifting plate inside, which provides even heating and low heat loss; the mixing blade, vibrating screen and other wear parts adopt wear-resistant materials, which provide a long service life and are easy to replace. The overall structure of the equipment is reliable, with low failure rate. Combined with ZOOMLINE’s maintenance guidance and spare parts supply service, downtime can be significantly reduced.
High Customer Recognition in 80+ Countries
ZOOMLINE equipment has been exported to more than 80 countries and regions in Europe, Africa, North America, Asia, etc., and has performed well in scenarios such as recycled asphalt projects in Thailand, municipal maintenance in Madagascar, and road construction in Ethiopia.
T-type Mobile Batch Mix Asphalt Plant
Core Parameters and Technical Characteristics

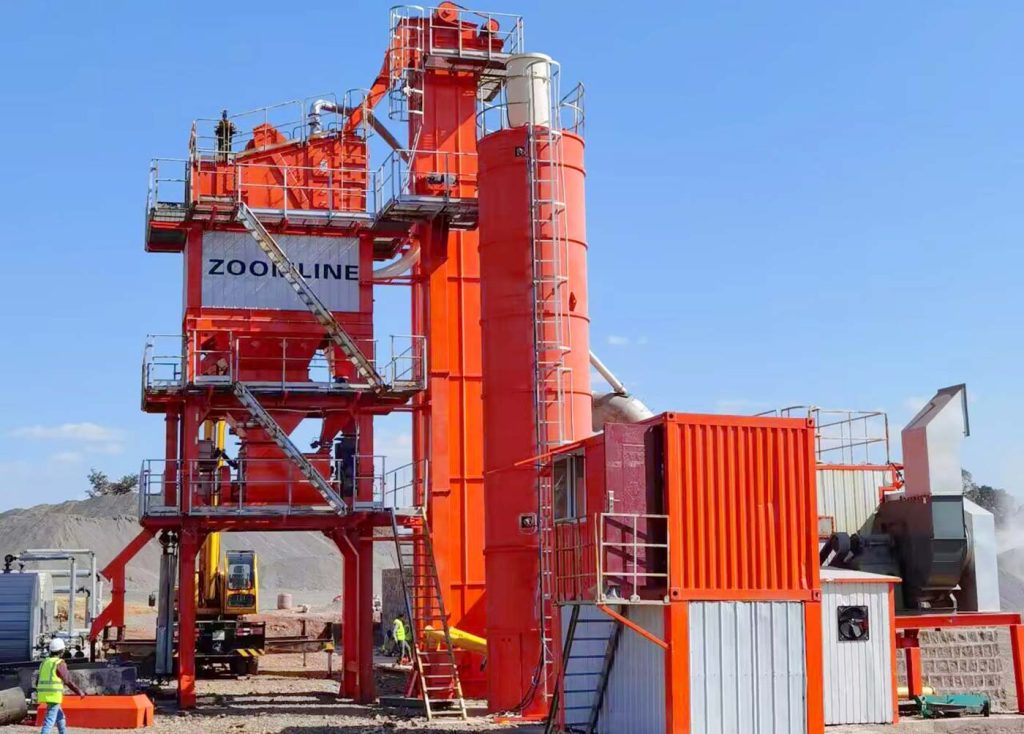

ZOOMLINE T-type Mobile Batch Mix Asphalt Plant (ZAP-MT series) represents the mobile batch plant, with the capacity of 60-200t/h and the total power of 154-500kW. With modular structure and compact design, the plant is equipped with high mobility chassis designed by Korean DMI, and AVIC brand aviation plug for quick wiring, easy disassembling and assembling, and low transportation cost.
The equipment is integrated with German mixing technology, with 45 seconds mixing cycle, high weighing accuracy, and support for fast switching of multiple formulas; the drying drum is driven by 4 friction wheels, with smooth operation and low noise, and with high efficient burner, it can precisely control the drying temperature of aggregate.
Regional Scenarios
Asia: Rapid response to the “Belt and Road” national highway and bridge projects, modular design for long-distance transportation, weather-resistant design to cope with extreme weather, installation and commissioning can be completed in 7-10 days, which significantly shortens the project preparation cycle. In the construction of national highways in Kazakhstan and Kyrgyzstan, the equipment has realized stable operation to meet the continuous construction needs of cross-border corridors.
Africa: Suitable for decentralized construction sites for urban road and airport maintenance, the semi-trailer design facilitates quick transfer between different projects without complex infrastructure construction and reduces upfront investment. In the South African highway upgrading project, the equipment can effectively guarantee the schedule by virtue of its quick start-up capability.
North America: Precise proportioning capability to meet the high quality requirements of state highway renovation, support for 30%-50% RAP additive ratio, in line with the needs of sustainable construction, and efficient dust removal system to meet the EPA environmental standards, which has become an ideal choice for maintenance projects in remote areas.
Core Advantages Compared with Fixed Type
Compared with fixed type equipment, mobile batch mixing plant eliminates complex foundation works and shortens the installation and commissioning cycle by more than 60%; the modular design reduces the transportation cost, which is especially suitable for long-distance transportation scenarios; it can flexibly transfer the site according to the progress of the project, realizing the “nearby production” and reducing the loss and temperature drop of the mixture. The modular design reduces the transportation cost, especially suitable for long-distance transportation scenarios.
Other ZOOMLINE Product Series Supplement
Super Mobile Batch Mix Asphalt Plant (40-90t/h)
This series of plant (ZAP-ME series) has a capacity of 40-90t/h, mixer capacity of 500-1300kg, and adopts semi-trailer design to support international standard trailer tractor, which does not require secondary assembly and only requires connection of inter-frame cables when transferring. Only inter-frame cables need to be connected when transferring. The equipment is highly integrated, with the integrated layout of cold aggregate supply, drying, screening, metering, mixing and other systems, without foundation design requirements, suitable for small and medium-sized decentralized projects in Asia and Africa, especially for road maintenance projects with frequent site changes.
Stationary Asphalt Mixing Plant (ZAP-S series)
Capacity 40-400t/h, mixer capacity 500-5000kg, suitable for large volume stationary plant in North America or long-term pivot project in Asia. With high mixing precision and stable capacity, the plant is equipped with large drying drum and efficient dust removal system, supports high percentage of RAP recycling, and can meet the long-term production demand of large-scale and high-standard projects, as well as has perfect intelligent monitoring and maintenance warning function.
Environmental and RAP Recycling Series
Environmental Asphalt Mixing Plant (80-400t/h) is designed for high environmental standard scenarios, with Bitumen Aggregate Ratio controlled at 3%-9%, Mineral Powder Proportion 4%-12%, equipped with high efficiency desulphurization and denitrification device and RAP deep treatment system; Recycling Asphalt Mixing Plant (60-160t/h) RAP addition ratio of 30%-50%, can efficiently recycle old asphalt pavement materials, reduce resource waste, reduce carbon emissions, suitable for North America and other markets that require high sustainability.
Regional Differentiation Selection Guide
Asia: Super Mobile Batch Mix Asphalt Plant (40-90t/h) is preferred for small and medium-sized projects, while stationary ZAP-S series can be chosen for large-scale hub projects; the focus is on the weather resistance of the equipment and ease of transportation.
Africa: Super Mobile Drum Mix Asphalt Plant (20-200t/h) is recommended for decentralized construction sites and short-term projects, while Mobile Batch Mix Asphalt Plant (60-200t/h) is preferred for urban main roads and airports; priority is given to the adaptation of multi-fuel burners and high-efficiency dust removal configurations.
North America: Mobile Batch Mix Asphalt Plant is preferred for highway renovation and remote maintenance projects; stationary + RAP recycling system is recommended for large-scale fixed-site projects; environmental certification and RAP compatibility requirements must be met.
Real Application Cases in the Region
Asia: Projects in Kazakhstan and Kyrgyzstan
In the highway project in Kokshetau, Kazakhstan, ZOOMLINE ZAP-S100 asphalt mixing plant (stationary) is used in conjunction with ZAP-MT series mobile plant, which is responsible for the construction of feeder roads and remote road sections, and the mobile plant completes the installation, commissioning and puts into operation in 7 days, and operates stably under the low-temperature environment of -20℃. The mobile plant was installed and commissioned in 7 days, and operated stably in a low temperature environment of -20℃, and the fuel consumption was controlled at 6.2kg/t, which greatly reduced the transportation and construction costs.
In the national highway construction project between Osh and Jalal-Abad in Kyrgyzstan, the 60T/H stationary asphalt mixing plant and the mobile plant complemented each other. The modular design of the mobile plant enabled it to be quickly deployed to multiple construction sites through cross-border transportation, and the low-maintenance feature of the plant reduced the frequency of repairs in the remote areas, which was highly recognized by the local construction company.
Africa: Madagascar and Ethiopia
The ZAP-C60M Super Mobile Drum Mix Asphalt Plant played a key role in a municipal road maintenance project in Madagascar. The equipment is transported by road to several scattered construction sites without infrastructure construction, deployed and put into operation in 4 hours, and operated continuously for 15 days without failure, with fuel consumption of ≤7kg/t and dust removal efficiency of 99.2%, which is perfectly suited to the needs of the local tight schedule and restricted sites.
In the road construction project in Sherpur City, Ethiopia, the ZAP-M80 80TPH mobile asphalt mixing plant performed well. The plant stably outputs high-quality mix under high-temperature and high-humidity environments, supports multi-formula switching to meet the construction requirements of different road sections, and its fast transfer capability enables the construction team to efficiently complete multi-point operations.
North America: Sustainable Maintenance in Practice
In an interstate highway renovation project in North America, a ZOOMLINE mobile intermittent plant with a RAP recycling system achieved a 35% recycling rate of old asphalt, with dust emissions below 50% of the EPA limit and fuel consumption below 6.0 kg/t. The plant’s seasonal transfer capability was matched to the high temperature and humidity conditions, which allowed the contractor to efficiently work in multiple locations. The seasonal shifting capability of the equipment is adapted to the local construction window, and the remote monitoring function reduces the number of operators on site, lowering labor costs and increasing the ROI of the project by 20%.
Why ZOOMLINE Mobile Mixing Plant is the first choice
The mobility revolution of fast transfer and installation
ZOOMLINE Mobile Series adopts modular or semi-trailer design, T-type Mobile Batch Mix Asphalt Plant can be quickly disassembled and transported, and Super Mobile Drum Mix Asphalt Plant achieves “Compared with traditional equipment, the installation and commissioning cycle is shortened by more than 70%, which can quickly respond to the needs of multi-site and short-cycle projects and significantly reduce deployment costs.
Reliability to adapt to extreme climate and remote terrain
The core components of the equipment are made of internationally renowned brands, the drying drum is equipped with thickened thermal insulation and wear-resistant liner, and the electrical system is equipped with dustproof, waterproof, and low-temperature-resistant design, which is able to adapt to the extreme temperature difference in Asia, the high temperature and high humidity in Africa, and the severe cold environment in North America. At the same time, the equipment structure is simple and sturdy, with a low failure rate, and can still maintain stable operation in remote areas where there is a lack of professional maintenance resources.
Low Operating Costs and High ROI
Low fuel consumption, long-life wearing parts, and free spare parts replacement service during the warranty period together constitute the low-cost advantages of ZOOMLINE equipment. In addition, the high adaptability of the equipment reduces the risk of inactivity, and the rapid deployment capability shortens the project preparation cycle, which together enhance the ROI of the equipment, which usually pays back the investment 6-12 months earlier than similar products.
Perfect global after-sales support network
ZOOMLINE provides 7×24 hours online service, technicians respond to failure inquiries within 1 hour, general failures are resolved within 24 hours, and complex failures provide expedited solutions. Equipment warranty period of 15 months, outside the warranty period to provide lifelong technical support and preferential supply of spare parts, in more than 80 countries and regions around the world to establish a service network, can quickly respond to the service needs of different regions, to solve the customer’s worries.
CONCLUSION
Under the background of the transformation of global infrastructure construction to be “efficient, flexible and sustainable”, mobile hot mix asphalt plant has become the core choice in Asia, Africa and North America, etc. ZOOMLINE Mobile Batch Mix Asphalt Plant and Super Mobile Drum Mix Asphalt Plant are precisely adapted to the unique needs of different regions – whether it is the cross-border corridor in Asia, or the cross-border corridor in Africa. ZOOMLINE’s Mobile Batch Mix Asphalt Plant and Super Mobile Drum Mix Asphalt Plant, with their excellent mobility, precise proportioning capability, high environmental performance and reliable operation quality, are precisely adapted to the unique needs of different regions – whether it is a cross-border corridor in Asia, a decentralized construction site in Africa or a high-standard maintenance project in North America. ZOOMLINE offers efficient solutions.
ZOOMLINE’s core philosophy is to provide cost-effective solutions for projects, and through technological innovation and a global service network, ZOOMLINE continues to create value for road builders around the world. Choosing ZOOMLINE means choosing an efficient, cost-effective and reliable road construction partner, which can help projects move forward quickly and ensure quality.
FAQs
Which ZOOMLINE Mobile Hot Mix Asphalt Plant is recommended for the One Belt One Road project in Asia?
We recommend T-type Mobile Batch Mix Asphalt Plant (60-200t/h) or Super Mobile Drum Mix Asphalt Plant (60-120t/h). The former has high proportioning accuracy and is suitable for high standard highway and bridge projects; the latter is more convenient for transfer and is suitable for multi-point construction along long corridors, and both are characterized by extreme weather resistance and low maintenance, which are effectively adapted to the working conditions in Asia.
How to choose super mobile drum equipment for remote road construction in Africa?
Priority is given to ZAP-C60M or ZAP-C80M models, with a capacity of 60-80t/h, suitable for small and medium-sized projects; equipped with a multi-fuel burner, suitable for local fuel supply; no need for infrastructure, and can be put into operation in 4-8 hours, which can significantly reduce the logistics and deployment costs; and can be equipped with a strengthened dust removal system, to meet the environmental protection requirements of the core area.
What are the specific advantages of mobile mixing plants under North American environmental regulations?
ZOOMLINE mobile mixing plants are equipped with high-efficiency baghouse dust collectors and low-NOx burners, which meet EPA standards for dust emission concentration; support 30%-50% RAP addition ratio, which is in line with the requirements of sustainable construction; the equipment has passed CE, ISO and other international certifications, which makes it easy to pass the local environmental protection audits; and it is equipped with intelligent monitoring function, which monitors the emission data in real time to ensure the compliant operation.
How is the durability of ZOOMLINE equipment guaranteed in extreme climates?
The drying drum of the equipment adopts thickened thermal insulation layer and wear-resistant high-temperature resistant liner, the electrical system has IP54 or above protection level, adapting to the working environment of -30℃ to +50℃; the core components, such as bearings, burners, etc., are selected from the international famous brands, and undergo strict high and low temperature tests; meanwhile, we provide targeted climate adaptation solutions, such as oil heating system in low temperature areas and optimized design of heat dissipation in high temperature areas, ensuring stable operation under extreme climate. Stable operation under extreme climate.
What are the logistics and installation support for exporting to Asia/Africa/North America?
ZOOMLINE provides full logistics solutions, including shipping, customs clearance, cross-border transportation and other services, to ensure the safe and on-time delivery of equipment; assign professional engineers to the site to guide the installation and debugging and operator training, Asia/Africa engineer response time of no more than 72 hours, North America no more than 48 hours; provide detailed installation manuals and video instructions, equipped with a full set of installation tools and spare parts kits for perishable parts, to ensure that the installation of ZOOMLINE equipment to Asia/Africa/North America. Provide detailed installation manuals and video instructions, equipped with a full set of installation tools and spare parts kits for wearing parts to ensure a smooth and efficient installation process.
Contact ZOOMLINE sales team to get customized consultation and accurate quotation for Asia/Africa projects;
Visit the official website https://www.zoomline.com.cn/ to view the complete product line details, technical parameters and successful cases;
Make an appointment for technical support and on-site demonstration by the regional agent to feel the performance of the equipment and the ease of operation;
Consultation on the export logistics of equipment Consulting equipment export logistics program and installation and commissioning services to ensure that the equipment quickly put into production.
