ZOOMLINE has successfully signed an order for concrete mixers with a Kazakh client
Country: Kazakhstan
Transaction time: March 2026
Product: Concrete mixer
Model: JS1000
Voltage & Frequency: 380V/50Hz

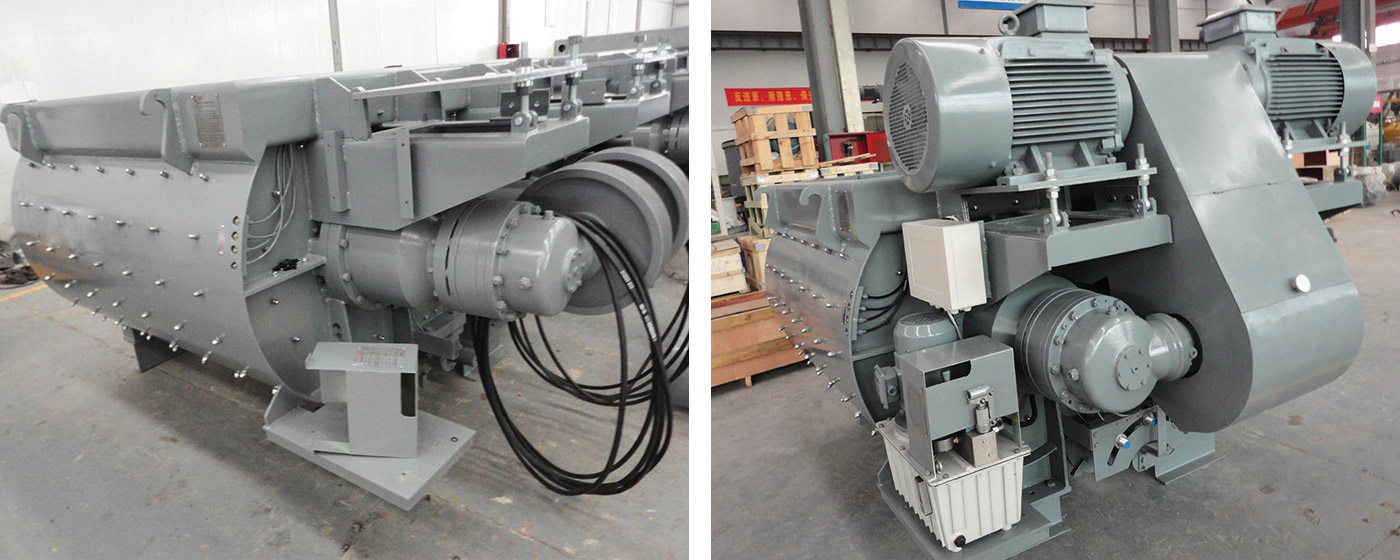

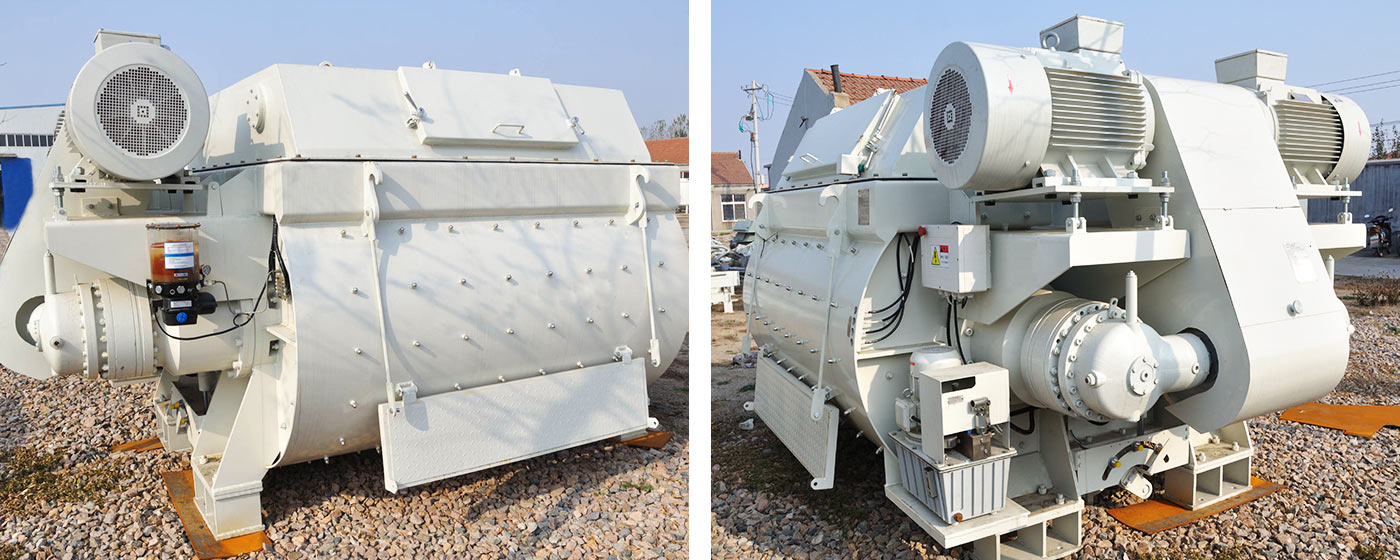

JS1000 Concrete Mixer: High Efficiency & Stability, a Premium Choice for Engineering Quality
In modern engineering construction, the performance of concrete mixing equipment directly determines project progress and construction quality. The JS1000 twin-shaft compulsory concrete mixer features a discharging capacity of 1000 liters (1.0m³) and a theoretical hourly output of up to 60 cubic meters. Boasting outstanding mixing performance, reliable stability and high-efficiency production capacity, it has become an ideal choice for small and medium-sized construction projects, precast component factories and overseas infrastructure projects.
Core Advantages
- High-Efficiency Mixing for Homogeneous and Stable Results
Adopting the twin-shaft compulsory mixing principle, the mixing arms and blades are arranged in a spiral pattern to form a bidirectional cross mixing flow field. Both mixing blades and liners are made of high-wear-resistance alloy materials and processed via special heat treatment technology, ensuring a long service life and low maintenance costs. The unique mixing trajectory design guarantees that materials meet the homogeneity requirements of concrete of grade C60 and below in a short time, with no segregation phenomenon.
- Flexible Adaptation for a Wide Range of Scenarios
The JS1000 can operate as a standalone unit, be combined with PLD series batching machines to form a simple mixing plant, and even serve as the main unit configuration for HZS60 concrete mixing plants. It is well-suited for rural urbanization construction, municipal road projects, small and medium-sized water conservancy projects, as well as the production of commercial concrete precast components.
- Energy Saving & Environmental Protection for Green Production
The motor is designed for high efficiency and energy saving, reducing energy consumption by 8%-10% compared with traditional models. The discharge door is tightly sealed to effectively control dust leakage. A dust removal device is optional to meet the requirements of environmental protection emission standards, supporting the construction of green construction sites.
Technical Parameters
| Item | Specification |
| Discharging Capacity | 1000 L (1.0 m³) |
| Feeding Capacity | 1500 L |
| Theoretical Productivity | 60 m³/h (subject to configuration) |
| Mixing Power | 2×18.5 kW |
| Mixing Time | 45-60 seconds |
| Maximum Aggregate Particle Size | 60 mm (pebble) / 80 mm (crushed stone) |
Service Assurance
We provide full life-cycle services covering equipment selection, foundation design, production and manufacturing, installation and commissioning, as well as after-sales maintenance:
- Rapid Response: 24-hour service response mechanism nationwide and 48-hour for overseas regions
- Spare Parts Guarantee: Sufficient stock of original spare parts to ensure timely maintenance
- Technical Training: Provide operator training to maximize equipment performance
Welcome to contact us for consultation or on-site inspection, and let us jointly build high-quality projects together!
