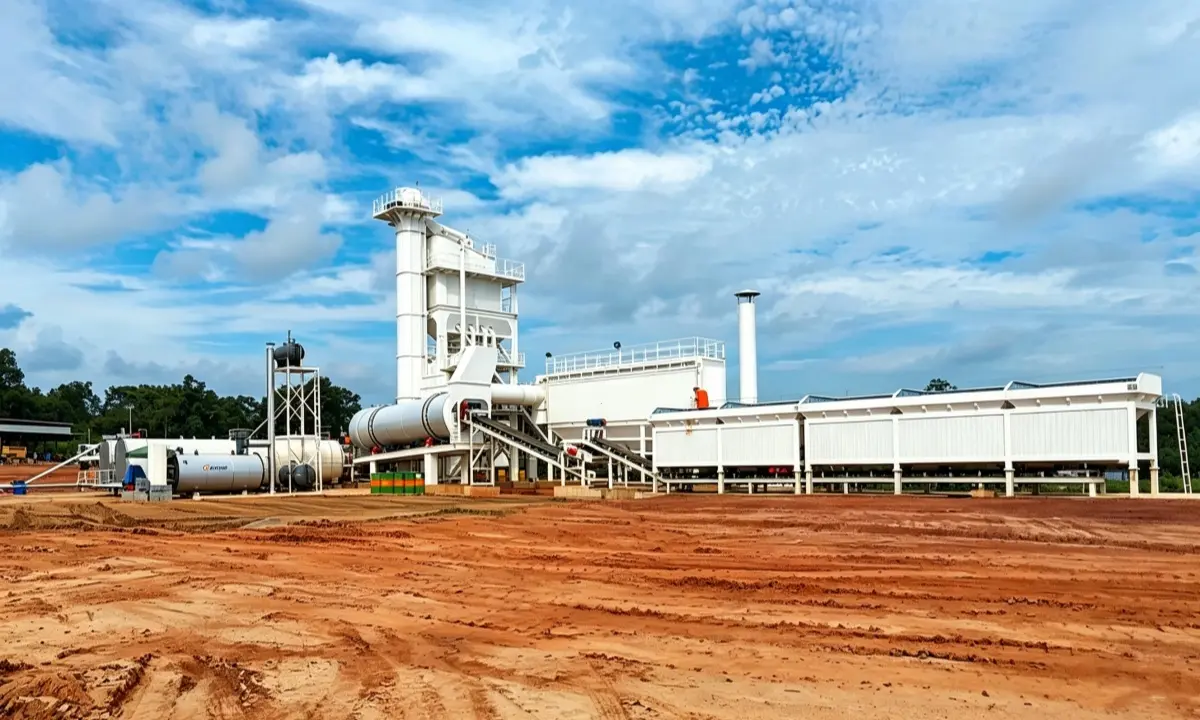

ZAP-S160 Asphalt Mixing Plant in Thailand

Release Time: 2019-07-04
Read: 47

Time: July, 2019
Location: Nakhon Phanom, Thailand
Equipment: 160T/H Stationary Asphalt Mixing Plant


The customer, one of the biggest road & bridge construction enterprises in Thailand, has a good business relationship with ZOOMLINE. ZAP-S160 asphalt mixing plant was purchased again this year.
The basic configurations include: bag dust removal, oil burner, two units 40-tons asphalt tanks and other basic configurations. Two engineers were sent to Thailand for installation and commissioning and guide them to operate and maintain the plant.

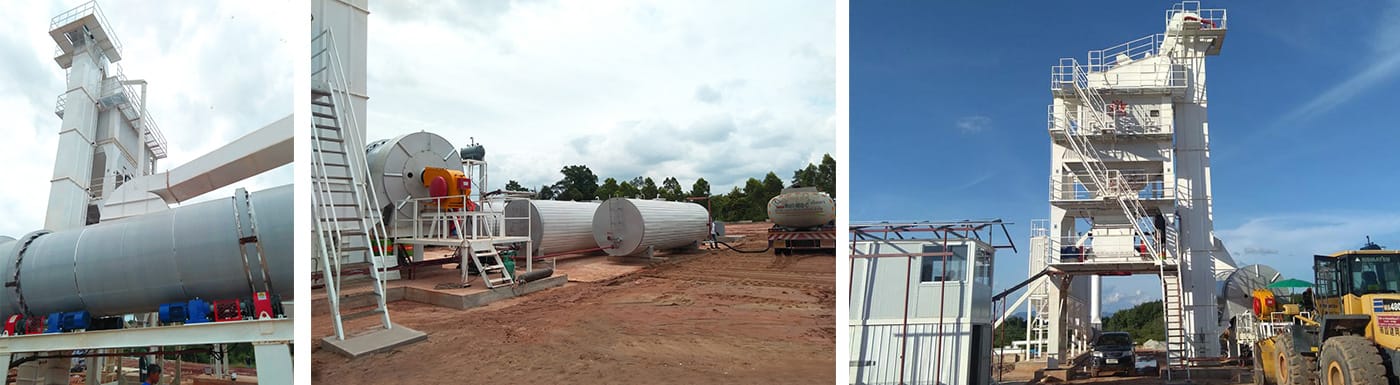

Mixing Plant in Thailand


1. Cold Aggregate Feed System
5 Cold feed bins, unload height 3.2m, unload width 3.2m, capacity 8m3/each; equipped with
sound-light alarm device for underfeeding.

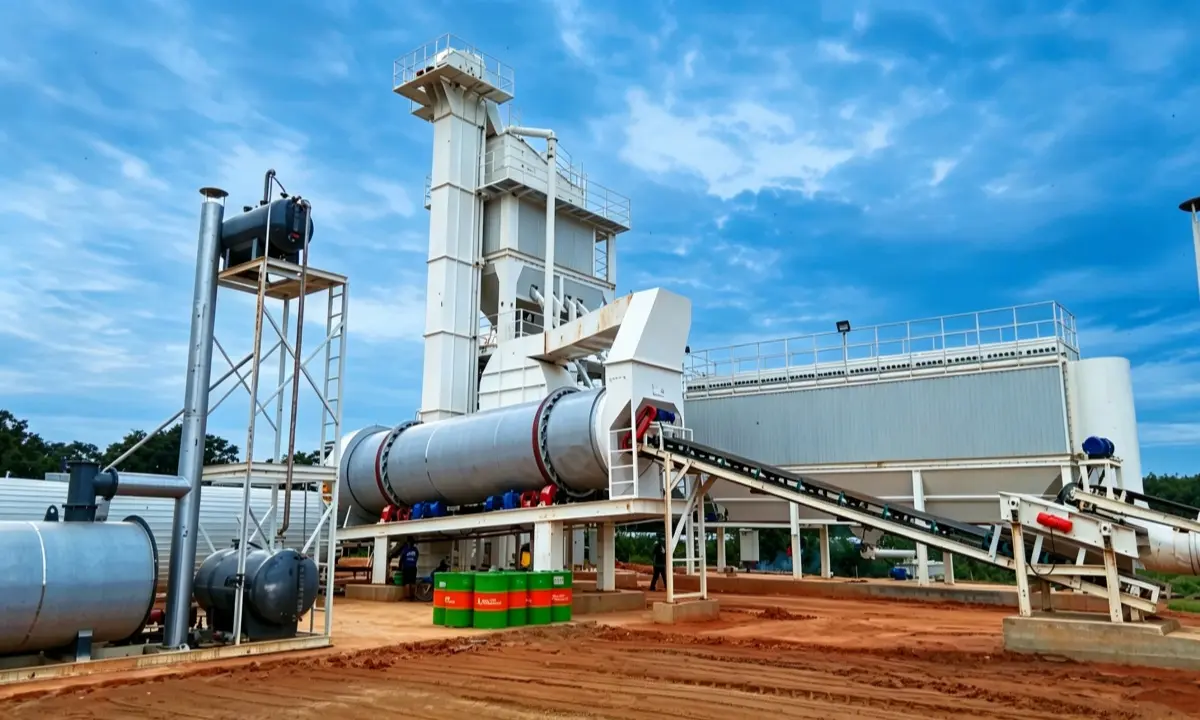

2. Drum Dryer & Burning system
The drying drum is covered by 50mm rock wool insulation layer and the max capacity is 180 tons per hour.
Famous brand oil burner, specialized in flame control and human-computer interface, which is easily operate and energy-saving.

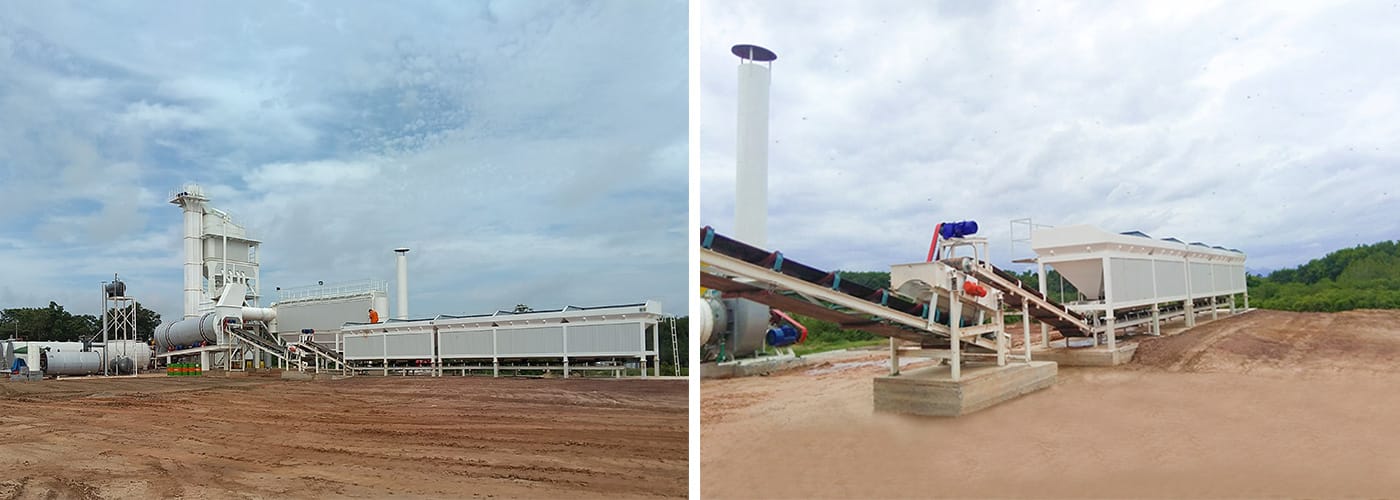

Mixing Plant in Thailand


3. The Mixing Tower Assembly
ZOOMLINE mixing tower mainly including the hot aggregate elevator, filler elevator, vibration screen, mixer, weighing system.
The Asphalt Mixer adopt 2x37kW motors. Power full enough to reach the rate capacity, even over the rated capacity 160t/h.
The weighing system using Mettler Toledo, which can make the weighing more accurate.
Festo cylinder ensures plenty air for opening the discharging doors.


Mixing Plant in Thailand

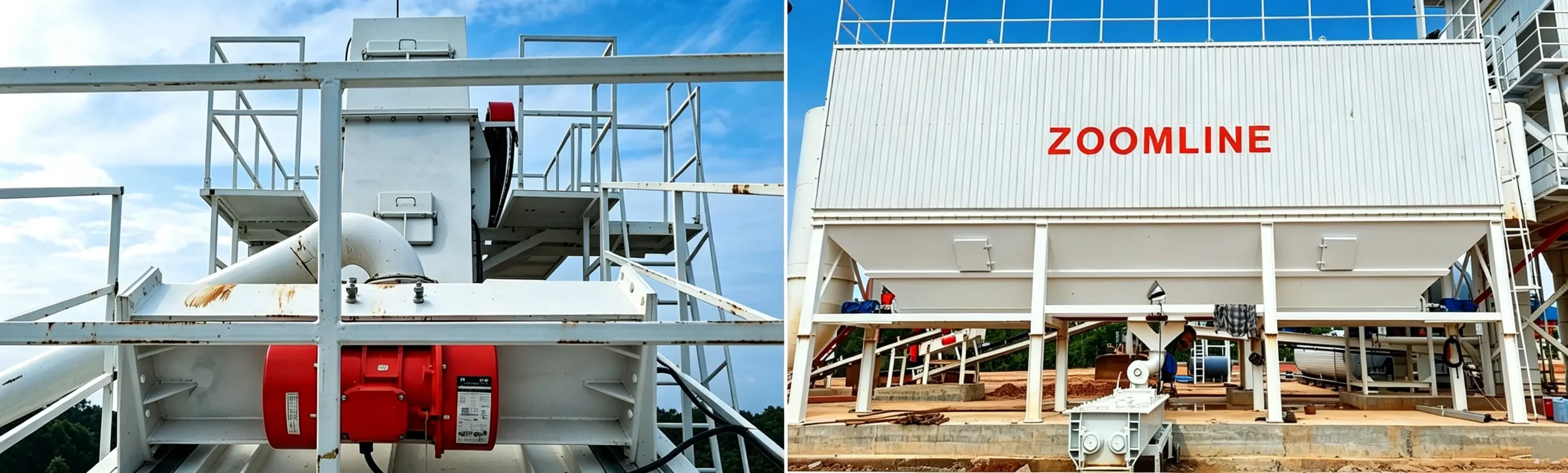

4. The Bag house Dust Collecting System
Gravity type primary dust collector, included air passage and air chimney. It adopts USA DUPONT NOMEX exclusion filtering bags. Result of dust collection: Ringelman I, Air Emissions is less than 20mg/Nm3.


5. Control System and Control Room
Control room: 5.0m×2.2m×2.5m imitation container structure, reserved installation position for air-conditioner.
Control desk includes PLC & touch screen and all the operation buttons and all the meter displays and protection function (Adopt OMRON PLC & Computer, and Schneider frequency converter)

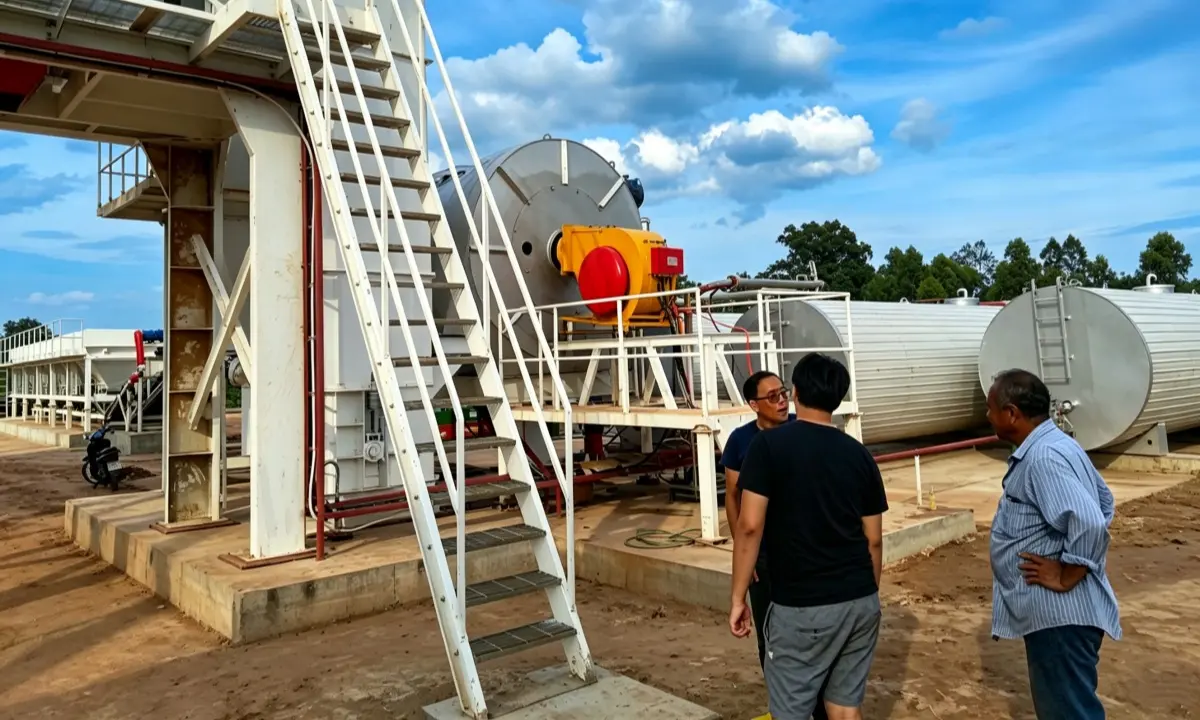

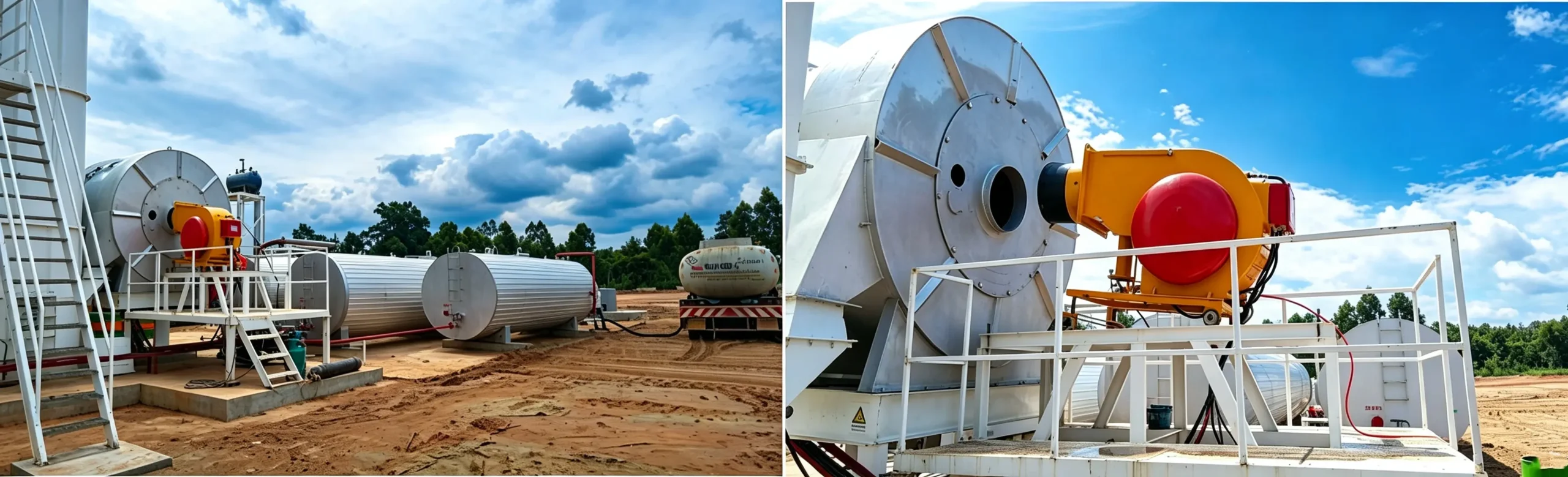

6. Thermal Oil Heating System
600,000 kcal/hr thermal oil furnace with ITALYRIELLO diesel oil burner.
Thermal oil furnace with insulation layer 50mm, stainless Steel package.
Two 40Tons Bitumen Tank with 50mm insulation layer and stainless Steel package.


7. Fuel Oil Storage and Supplying System
Heavy oil pumping system and 30m3 Heavy Oil tank with 50mm rock wool isolation and thermal oil heating.
