Project case of ZAP-C40M super mobile asphalt drum mixing plant

Release Time: 2025-01-10

Time: January 2025
Location: Kenya
Model: ZAP-C40M 40TPH Mobile Continuous

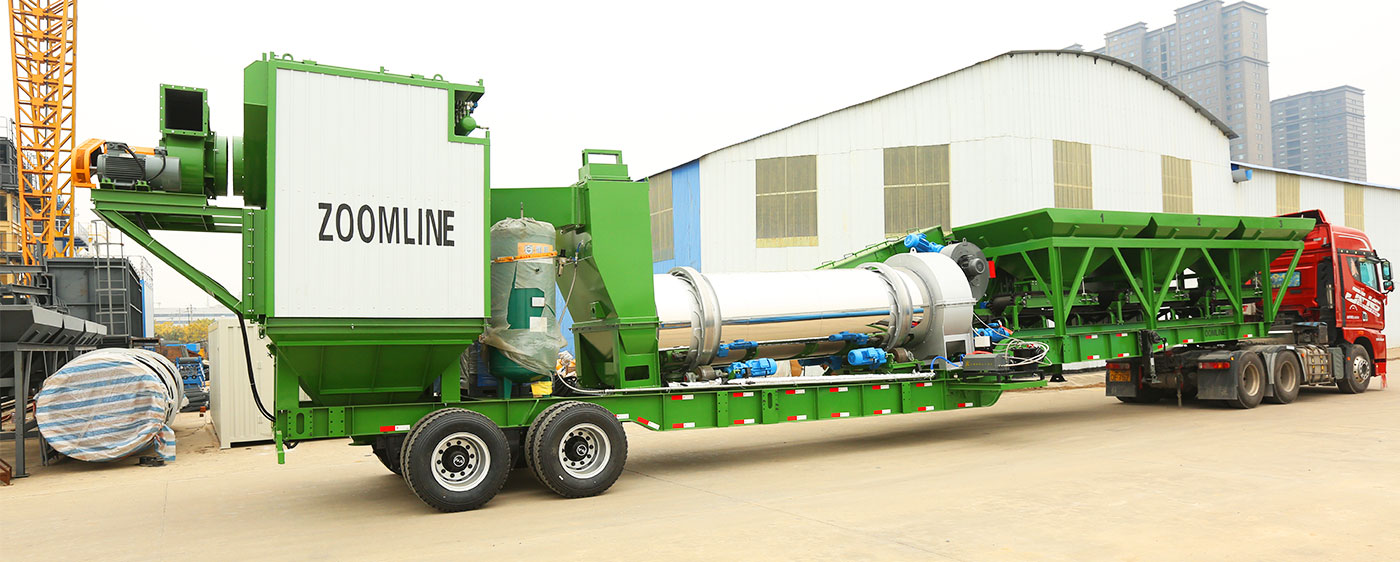

ZAP-C40M is a mobile continuous asphalt mixing plant developed by ZOOMLINE. Its fully mobile characteristics make it suitable for long-distance road construction or conditions that require frequent relocation. ZAP-CM series fully mobile continuous asphalt mixing plants have the characteristics of simple structure and easy operation, meeting many special construction requirements.

ZAP-C40M asphalt mixing plant, with rated output of 40T/h, adopts 3 gradation designs, is computer-controlled and has remote monitoring function.

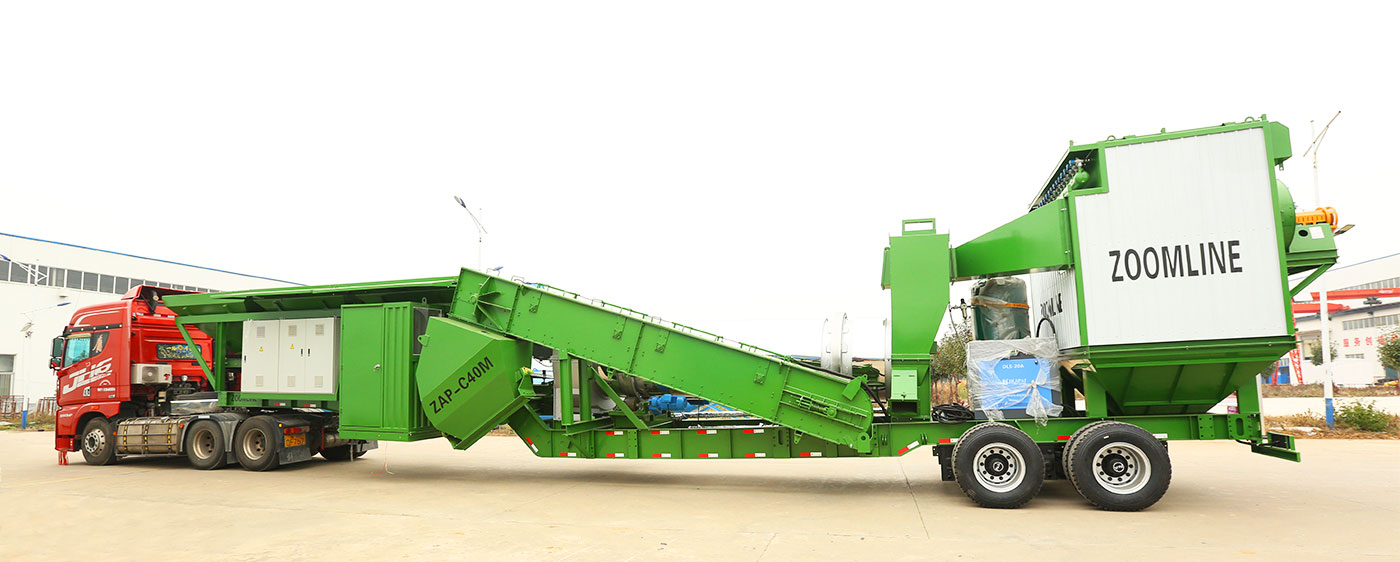

It uses two trailers to relocate the entire set of plant without the need for additional disassembly. The equipment can be reassembled and put into production within 1-2 days after transfer and installation.

Rated capacity	40T/h	5% moisture content
Discharge temperature	140-180℃
Cold feeding system	3 cold bins	High-precision belt scale measurement
Drying system	The drying drum adopts 4-wheel friction drive, downstream design, with fully automatic burner	Motor: 4*3kw
Dust collector system	Primary gravity dust collector+ secondary bag house dust collector	Emission<30mg/Nm³
Bitumen supply system	Thermal oil heating type	High-precision flow meter measurement
Control system	Adopt SIEMENS PLC+PC, manual/automatic operation	Chinese and English operating system
